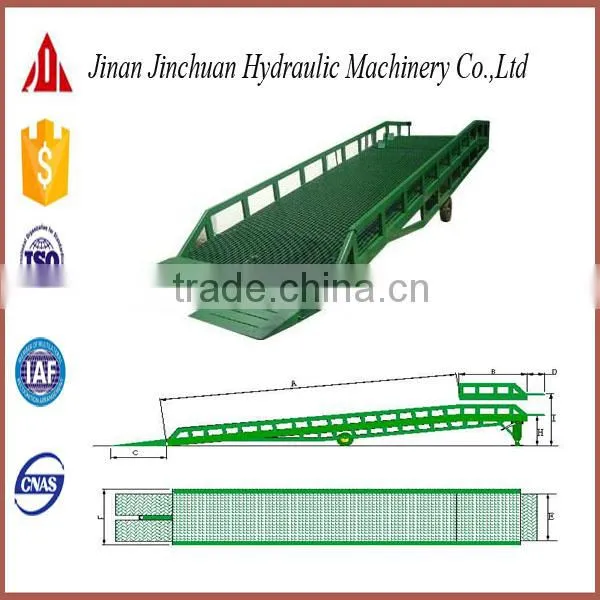

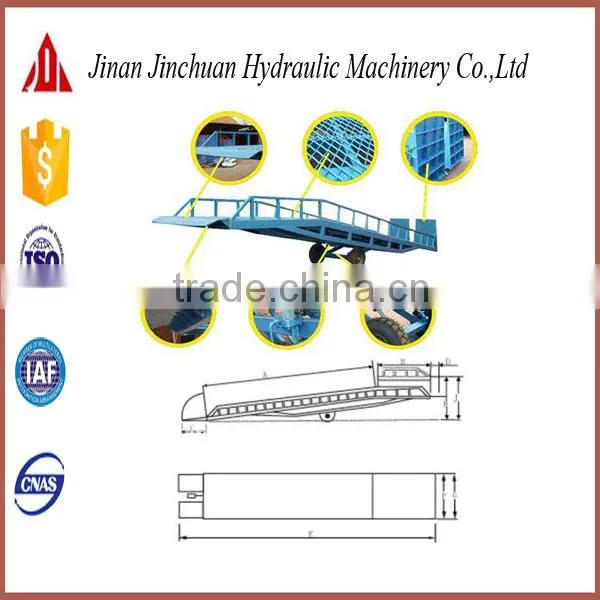

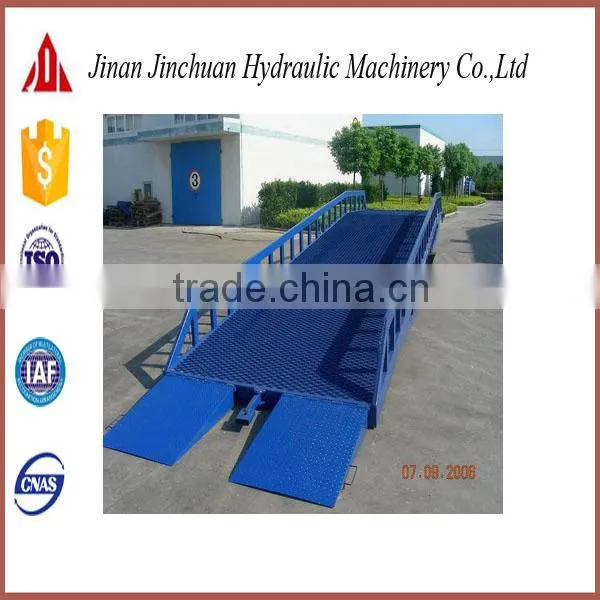

jinan high efficiency mobile hydraulic yard dock ramp/hydranlic loading ramp
About Jinchuan Company:
Jinan Jinchuan hydraulic machinery co., LTD, located at the cross between Longhai Road and Taixing Road in Jinan jibei economic development zone, is a collection research and development, production, sales in the integration of local industry company, for decades of production experience, has its own sales team and after-sales service team. Jinchuan since was established, taking the tenet of "honesty, science and technology innovation" and the concept of "quality first, users first", adhere to go today! Jinchuan will always be with full mental state to meet your arrival! Welcome!
factory rom:
Certificate:
Customers all over the world:
Product description:
Operation:
1. Fasten the return value and press the handle to move the ramp over the truck soleplate. Unfold the landing legs to working height.
2. Drive the car under the plate.
3. Release the return value, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain. The hydraulic system and the tyers of ramp do not carry the weight.
4. Operating starts.
5. When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck.
6. Uplifting the afterbody of the ramp to move around hang on the truck.
Parameter:
| model | lifting height | lifting weight | table size | overall dimension | power | total weight | mobile dock ramp |
| DCQY-4 | 0.9-1.7m | 4000kg | 10500*1900mm | 10500*2000mm | manual operation | 2200kg | |
| DCQY-6 | 0.9-1.7m | 6000kg | 10500*1900mm | 10500*2000mm | manual operation | 2300kg | |
| DCQY-8 | 0.9-1.7m | 8000kg | 10500*1900mm | 10500*2000mm | manual operation | 2400kg | |
| DCQY-10 | 0.9-1.7m | 10000kg | 10500*1900mm | 10500*2000mm | manual operation | 2600kg | |
| DCQY-12 | 0.9-1.6m | 12000kg | 10500*1900mm | 10500*2000mm | manual operation | 2800kg |
1. All the machines will be tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.
| MAQ | 1 set | |||
| Delivery time | 7-12 working days after received your order | |||
| Payment | 1. T/T:30% in advance, balance paid before shipping | |||
|
2. Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee. | ||||
|
3. Paypal, pay 100% to Paypal, Paypal will protect your right and charge 4.5% handling fee. | ||||
| Transport | 1. From Jinan, Shandong to Qingdao Port. | |||
| 2. From Qingdao Port to your destination port by sea. | ||||
If you have any questions, pls feel free to ask me, I will answer you as soon as possible. You can contact me by Skype or Email.
Skype: jinchuanlift
Email: jinchuanlift02/at/
