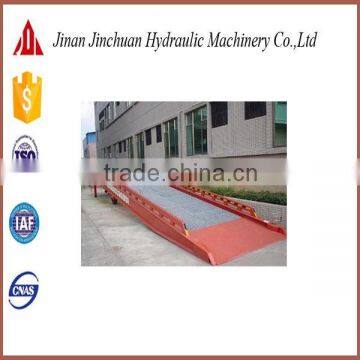

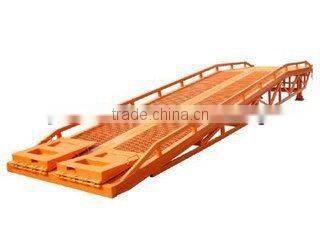

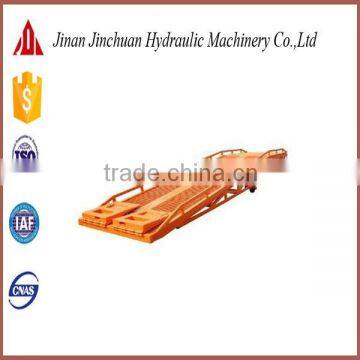

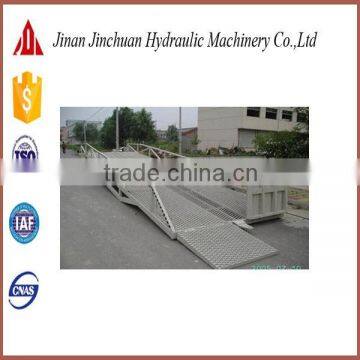

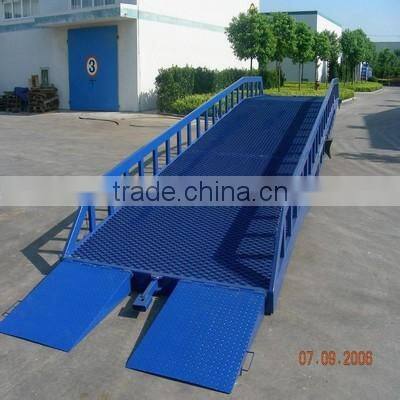

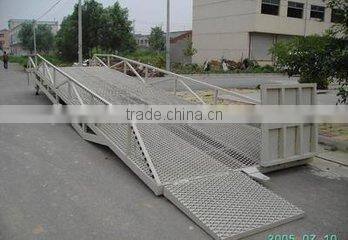

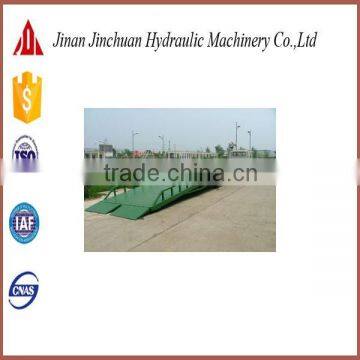

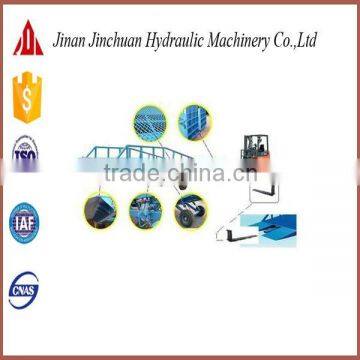

jinan jinchuan hydraulic yard ramp/hydraulic loading stair lift
Jinan Jinchuan hydraulic machinery co., LTD is a collection research and development, production, sales in the integration of local industry company, for decades of production experience, has its own sales team and after-sales service team. Jinchuan since was established, taking the tenet of "honesty, science and technology innovation" and the concept of "quality first, users first", adhere to go today! Jinchuan will always be with full mental state to meet your arrival! Welcome!
factory room:
Certificate:
Customers all over the world:

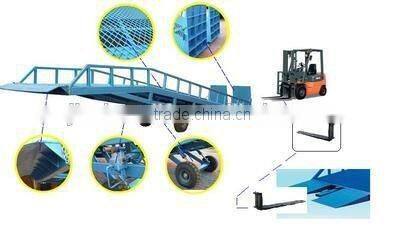

Product description:

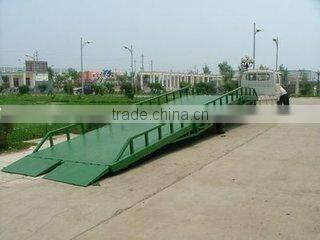

Operation:
1. Fasten the return value and predd the handle to move the ramp over the truck soleplate. Unfold the landing legs to working height.
2. Drive the car under the plate.
3. Release the return value, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain. The hydraulic system and the tyers of ramp do not carry the weight,
4. Operating starts.
5. When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck.
6. Uplifting the afterbody of the ramp to move around hang on the truck.
Parameter:
| model | lifting height | lifting weight | table size | overall dimension | power | total weight | mobile dock ramp |
| DCQY-4 | 0.9-1.7m | 4000kg | 10500*1900mm | 10500*2000mm | manual operation | 2200kg | |
| DCQY-6 | 0.9-1.7m | 6000kg | 10500*1900mm | 10500*2000mm | manual operation | 2300kg | |
| DCQY-8 | 0.9-1.7m | 8000kg | 10500*1900mm | 10500*2000mm | manual operation | 2400kg | |
| DCQY-10 | 0.9-1.7m | 10000kg | 10500*1900mm | 10500*2000mm | manual operation | 2600kg | |
| DCQY-12 | 0.9-1.6m | 12000kg | 10500*1900mm | 10500*2000mm | manual operation | 2800kg |
|
|
|
|
|
1. All the machines will be tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.
If you have any questions, pls feel free to ask me, I will answer you as soon as possible. You can contact me by Skype or Email.
Skype: jinchuanlift
Email: jinchuanlift02/at/
