Ceramic Fiber Tape With Aluminium Refractory Ceramic Fiber Tape Heat Insulation Ceramic Fiber Tape

Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.

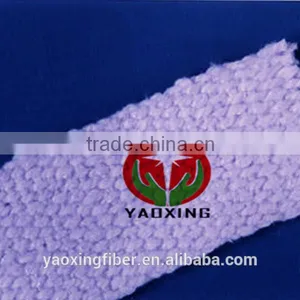

Ceramic Fiber Tape With Aluminium Refractory Ceramic Fiber Tape Heat Insulation Ceramic Fiber Tape thumbnail-1
Ceramic Fiber Tape With Aluminium Refractory Ceramic Fiber Tape Heat Insulation Ceramic Fiber Tape photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Heat Insulation
Thickness:
2-10mm
Width:
15-150mm
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Heat Insulation
Thickness 2-10mm
Width 15-150mm
Length 30000mm
Grade ST (Standard)
Chemical Composition AL2O3 SIO2
Working Temperature 1050C
Fiber Diameter 3um
Thermal Conductivity 0.075
Shrinkage (1800℉, 3h) ≤3%
Place of Origin Shandong, China
Brand Name Yaoxing
Model Number YXTX

Specifications

refractory ceramic fiber tape
1.density:550kg/m3
2.specification:3000*20-150*2-10
ing temp:1050C



Product Description

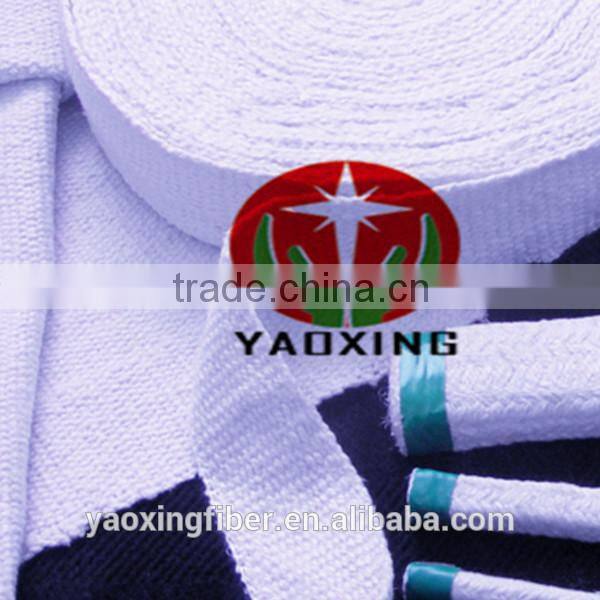

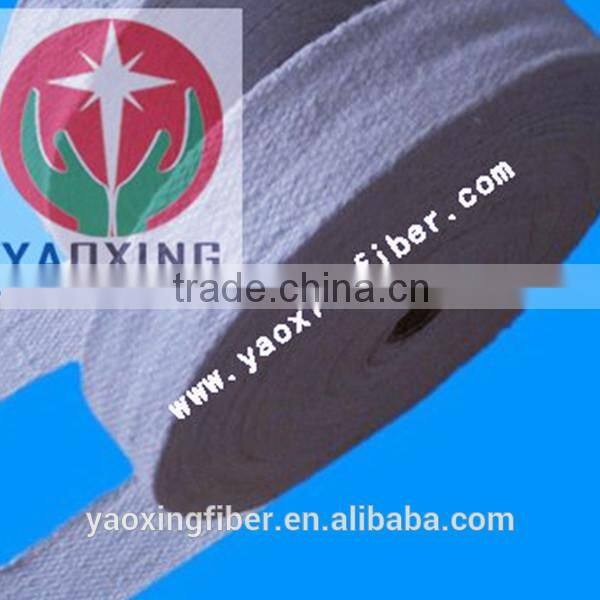

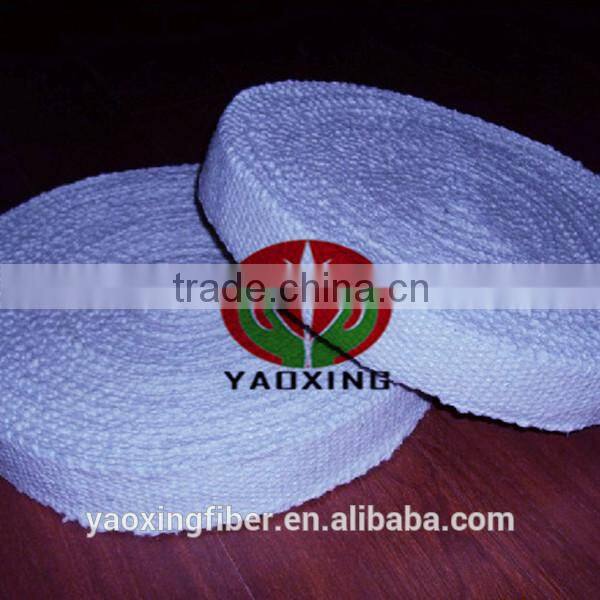

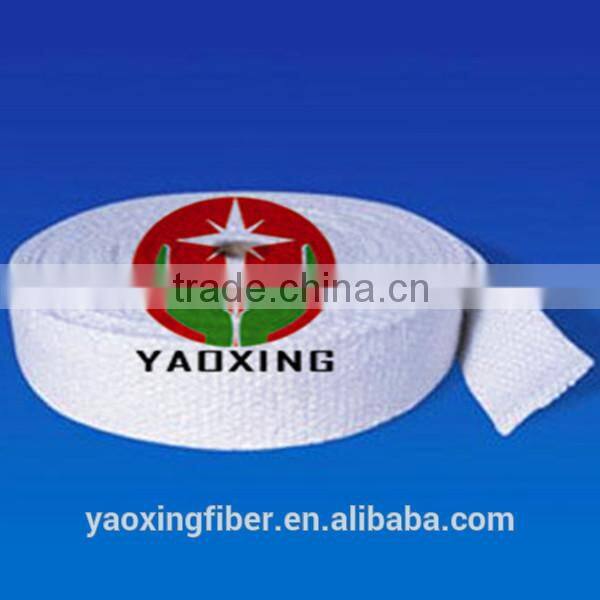

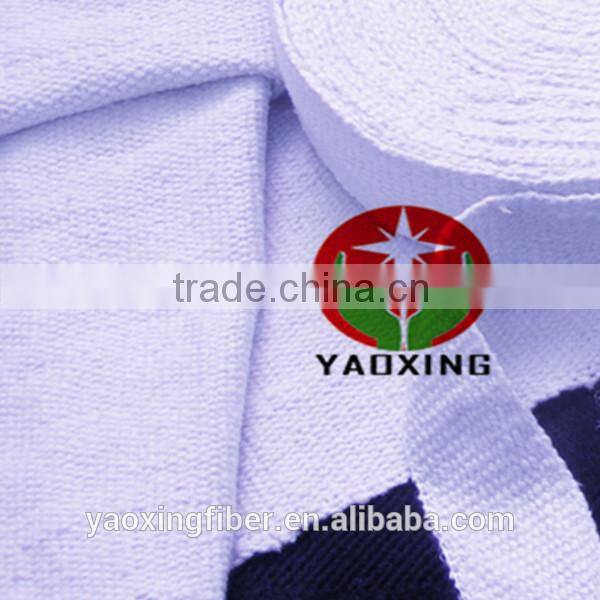

ceramic fiber tape with aluminium







1.YAO XING 1260 ceramic fiber tape is a cost-effective insulating tape made from ceramic fiber yarn, reinforced by a core of glass filament or stainless steel wire for high strength retention at elevated temperatures, ideal for most high temperature applications up to 1260°C.
2.YAO XING 1400 tape is a high performance industrial tape made from zirconia grade ceramic fiber yarn, reinforced by high temperature alloy wire. It is durable, long-lasting product, ideal for high temperature applications up to 1400°C.YAO XING tape contains approximately 18% organic fiber which burns out at high temperatures, causing some smoking and outgassing, but the tape retains enough strength to be used as effective insulating cloth at high temperatures.







Characteristics:





1.Excellent high-temperature strength

2.Excellent electric insulation capability

3.Excellent corrosion resistance to acid oil and steam

4.Low thermal conductivity

5.Excellent thermal insulation capability







Applications:







 1.Furnace curtains
 2.Protection against high temperature
 3.High temperature electrical insulation
 4.Cable and fuel line protection
 5.Fire protection
 6.Insulation of industrial chimney



Technical Index:





Classification Temperature

1260

Product

1260 ceramic fiber tape

Code

YXTX-208B1

YXTX-208B2

Service Temperature

(°C)

450

1000

Basic Material

Ceramic fiber/glass fiber reinforced

Ceramic fiber/ stainless steel reinforced

Theoretical Density (kg/m3)

600

Specification (mm)

3000×20/50/75/100×2/3

Moisture Content

(%)

≤2

Warp Density

56-60piece/10cm

Weft Density

24-30piece/10cm

Organic Content

(%)

≤15
