Best Qulity CATV RG7 Coaxial Cable From China

FOB Price

US$ 0.1 - 1 / Meter

5000 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

best qulity CATV RG7 Coaxial Cable from China

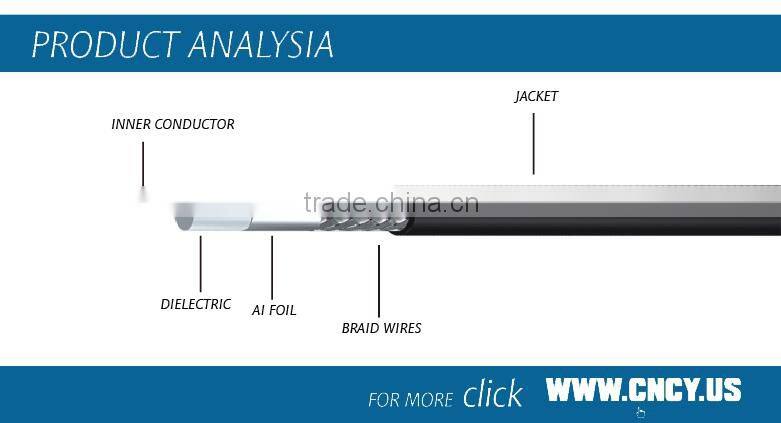

Construction & Basic Characteristics

1) Construction
Center Conductor:	1.29±0.01mm CU/CCS
Dielectric:	5.72±0.1mmFoam PE
Shield:	Al Foil
Braid Coverage:	40%-95%Al-Mg
Jacket:	6.91±0.1mm PVC/PE
UL:	CMX, CM, CATV, CL2
Jelly/APD	Per Customer’ Special Requirement
2) Characteristics
Sparker Test:	4000VAC
Impedance:	75±3 Ohm
Capacitance:	50±3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-1000MHz)
Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.47	1.54
55	1.25	4.1
187	2.56	8.4
300	2.82	9.25
450	3.46	11.35
600	4.05	13.28
750	4.57	14.99
865	4.93	16.17
1000	5.32	17.45

Packaging & Shipping

Length: 100m/200m/305m/500m, according to your requirements;

Packing: coil/ paper reel/plastic reel/wooden durm, ect.

Our Services

1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample

5.Fast delivery
