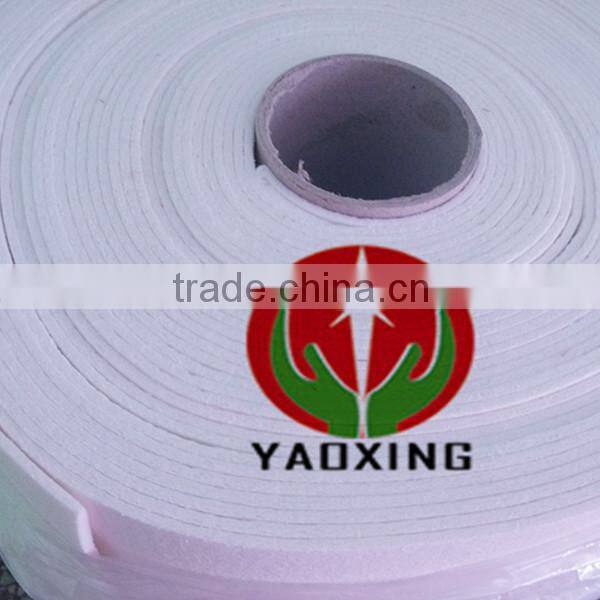

ceramic fiber paper-1400C-200KG/M3
Characteristic
1.Low Heat Storage
2.Low Thermal Conductivity
3.Excellent Thermal Electrical Insulation
4.Excellent Machine-processed Capability
5.Excellent Broken Resistance
6.Excellent Flexibility
7.Low Shot Content
Application
1.Industrial insulating ,sealing and protecting materials
2.Electric and thermal insulation materials for electric industry
3.Insulation materials for instrument-equipment
4.Insulating materials for motor industry
5.Filling materials for expansion slot
6.Insulating materials as the sinter resistance
7.Sealing gasket for molten metal
8.Fireproof materials
Technical Index:
Classification Temperature |
1260 |
1400 |
|
Name |
ST Ceramic Fiber Paper |
HZ Ceramic Fiber Paper |
|
Code |
YXTX-236 |
YXTX-336 |
|
Shrinkage on Heating (%) |
1000°C×24h ≤-3 |
1350°C×24h≤-3 |
|
|
Theoretical Thermal Conductivity (W/m·k) |
(200°Caverage) (400°Caverage) (600°Caverage) |
0.075-0.085 0.110-0.121 0.160-0.170 |
|
Organic Content (%) |
≤ 10 |
≤ 8 |
|
Theoretical Density (kg/m3) |
200±15 |
||
Tensile Strength (Mpa) |
≥0.3 |
≥0.2 |
|
Moisture Content(%) |
≤1 |
||
Specification (mm) |
100000/12000×610/1220×0.5/7, According to your requirements |
||

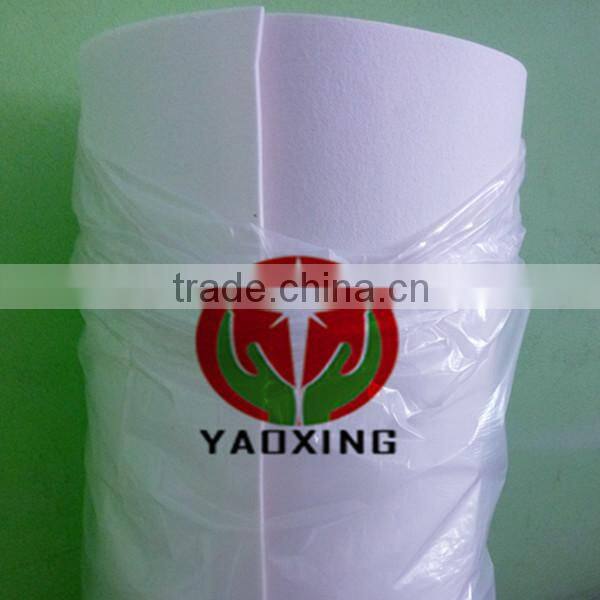

Package |
Plastic Bag Inside, Carton Box Outside |
||
Quality Control System |
ISO9001-2000, ISO14001-1996 |
||
