Specifications

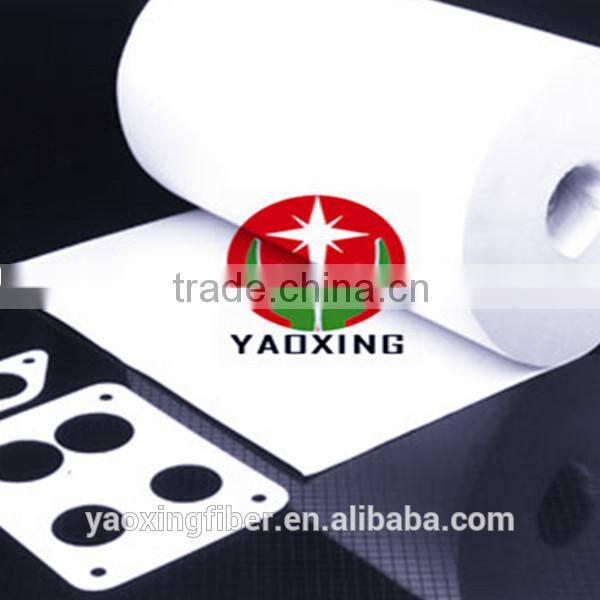

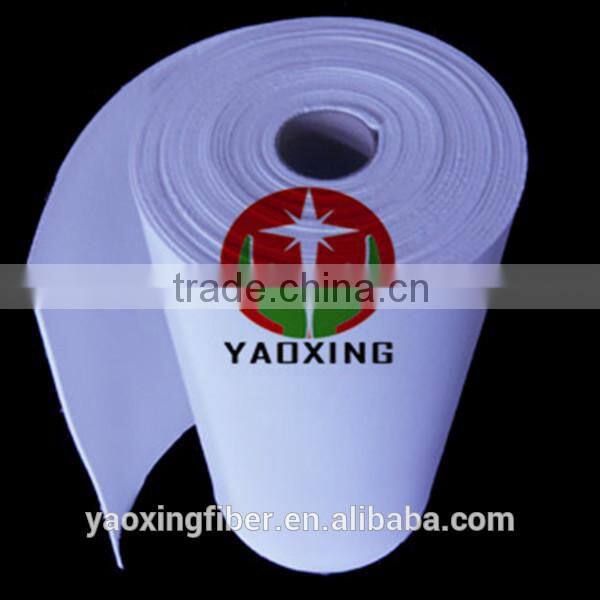

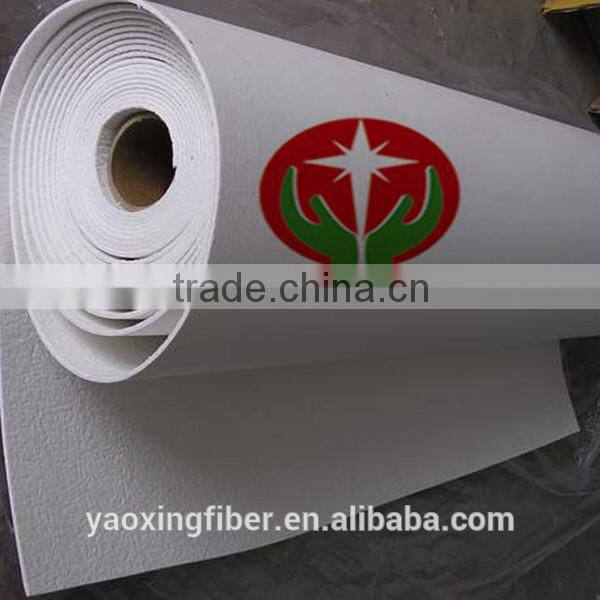

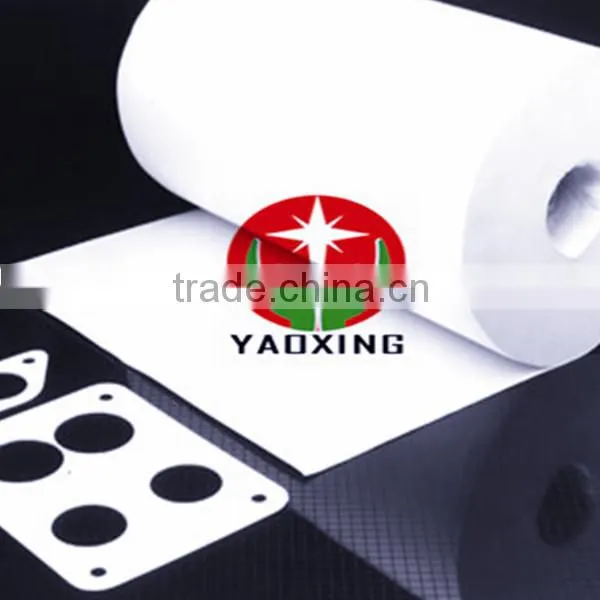

1400Degree ceramic fiber paper:Type: HZ(High ZrO2)
MSDS: available
Size:
0.5mmX610/1220mmX90meters
0.7mmX610/1220mmX80meters
1mm X610/1220mmX60meters
2mm X610/1220mmX30meters
3mm X610/1220mmX20meters
4mm X610/1220mmX15meters
5mm X610/1220mmX12meters
Characteristic:
1.Low Heat Storage
2.Low Thermal Conductivity
3.Excellent Thermal Electrical Insulation
4.Excellent Machine-processed Capability
5.Excellent Broken Resistance
6.Excellent Flexibility
7.Low Shot Content
Application:
1.Industrial insulating ,sealing and protecting materials
2.Electric and thermal insulation materials for electric industry
3.Insulation materials for instrument-equipment
4.Insulating materials for motor industry
5.Filling materials for expansion slot
6.Insulating materials as the sinter resistance
7.Sealing gasket for molten metal
8.Fireproof materials
Technical Index:
Classification Temperature | 1260 | 1400 | |
Name | ST Ceramic Fiber Paper | HZ Ceramic Fiber Paper | |
Code | YXTX-236 | YXTX-336 | |
Shrinkage on Heating (%) | 1000°C×24h ≤-3 | 1350°C×24h≤-3 | |
Theoretical Thermal Conductivity (W/m·k) | (200°Caverage) (400°Caverage) (600°Caverage) | 0.075-0.085 0.110-0.121 0.160-0.170 | |
Organic Content (%) | ≤ 10 | ≤ 8 | |
Theoretical Density (kg/m3) | 200±15 | ||
Tensile Strength (Mpa) | ≥0.3 | ≥0.2 | |
Moisture Content(%) | ≤1 | ||
Specification (mm) | 100000/12000×610/1220×0.5/7, According to your requirements | ||
Package | Plastic Bag Inside, Carton Box Outside | ||
Quality Control System | ISO9001-2000, ISO14001-1996 | ||
