QC12Y-25x6000 CE Hydraulic Metal Plate Shearing Machine

US$ 13,000 - 13,038 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number QC12Y-25x6000 plate shearing machine

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Rated Power 37KW

Dimension(L*W*H) 7000x3500x2800mm

Weight 50000KG

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

QC12Y-25x6000 hydraulic plate shearing machine

Characteristics

1.Steel welding frame, sufficient strength and rigidity.

2. Hydraulic driving system, safety and reliable operation, and fine appearance.

3.Quick and flexible gap adjusting device, high shearing precision.

4. Reliable safety protection fence.

5. Digital display device(DRO) displaying extruded-plate length and shearing times.

6.Calibrating device with lamplight for measuring and shearing.

7. CE is approved;

8. Hydraulic Pendulous Shearing Machine;

9. Kinds of colors for your choice/can be Customized according to user's demand;

10. CNC types are available, too;

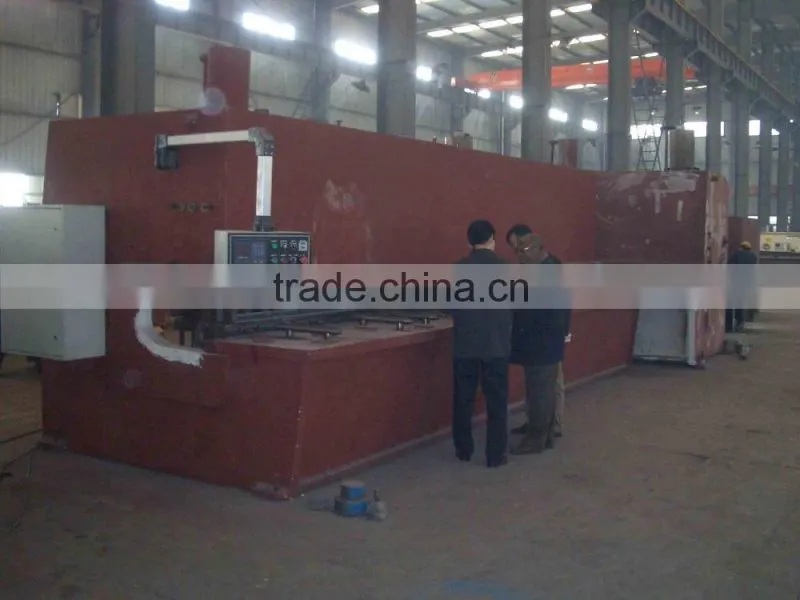

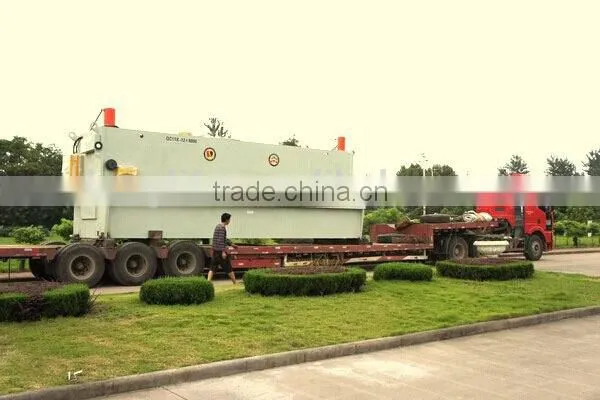

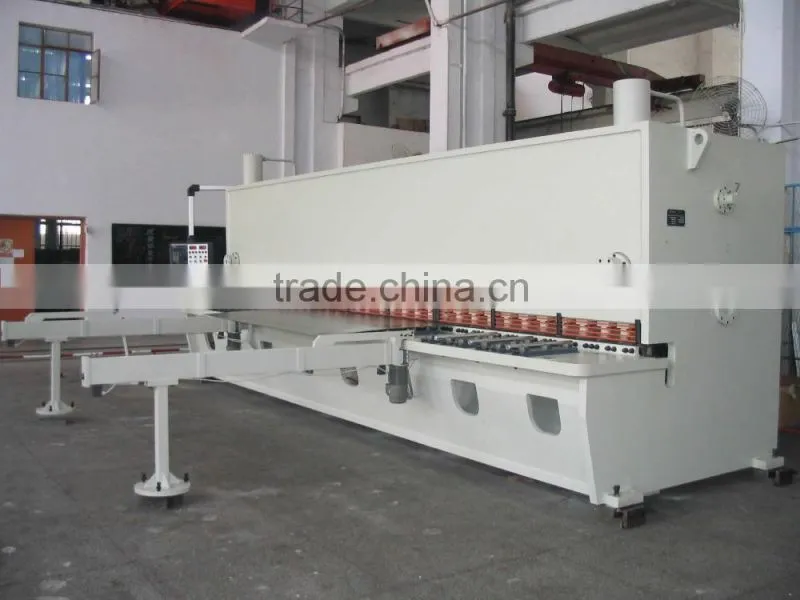

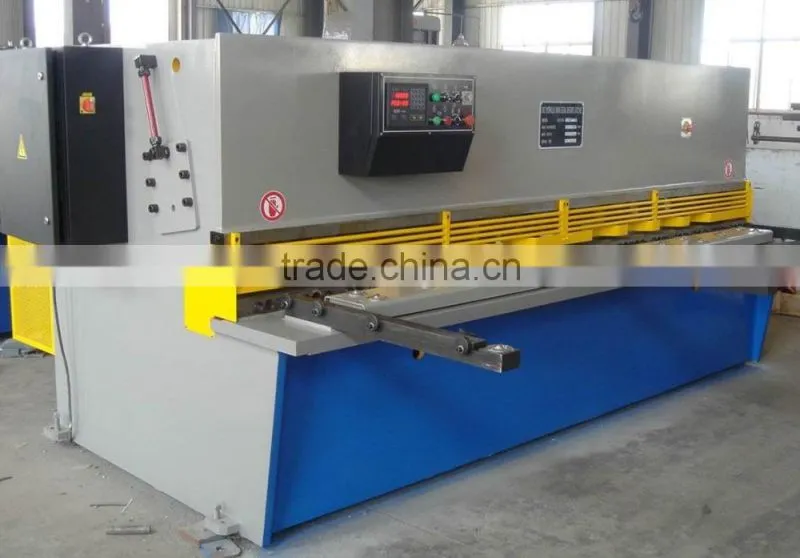

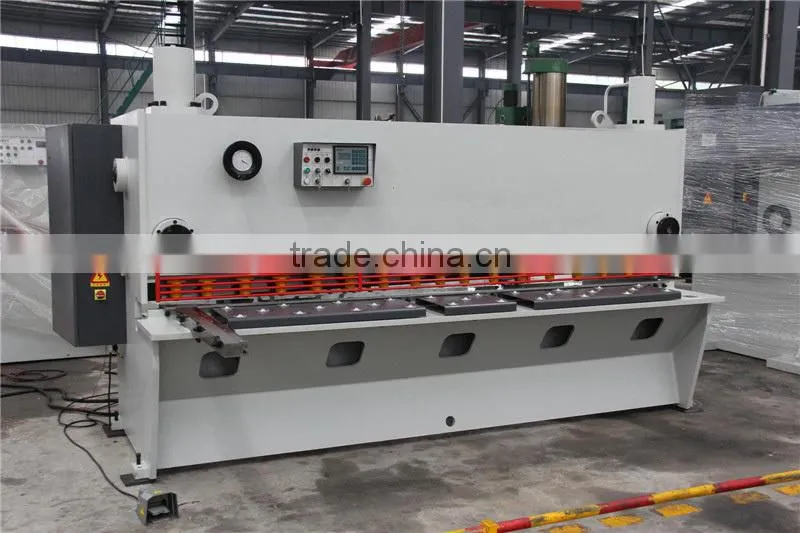

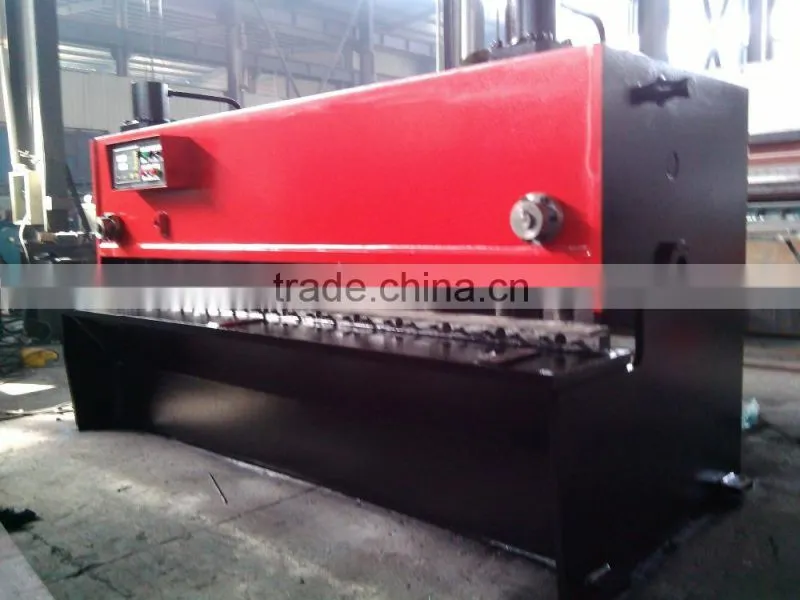

Real Photos:

Kinds of colors for your choice/can be Customized according to user's demand;

Main Technical Data

QC12Y-25x6000 hydraulic plate shearing machine	Unit	Parameter
Plate thickness	mm	25
Plate width	mm	6000
Shearing angle		2.5°
Throat depth	mm	80
Extruded-plate length	mm	800
Stroke times	times/min	2
Pole distance	mm	3445
Motor power	kW	37
Blade length	mm	6245
Blade material		6crw2si
Axial plunger pump		63MCY14-1B Flow : 63ml/r Pressure: 32mpa
Left and right wallboard	mm	80
Knife rest thickness	mm	80
thinkness of work table	mm	90
Dimension (L×W×H)	mm	7000×3500×2800
Package Dimension(L×W×H)	mm	7400×3900×3200
N.W/G.W	T	50/54
