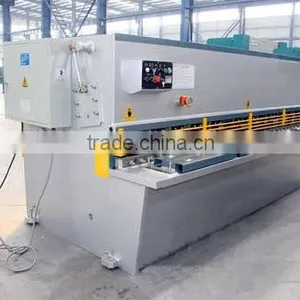

QC12Y-8x3200 CE hydraulic plate shearing machine
- 100 Set / Sets per Month
- Dalian/Shanghai China
- T/T Credit Card PayPal
- Hydraulic Guillotine Type Metal Shear Used in Scrap Metal Recycling Industry
- Best price cnc table plasma cutting machine with water table
- High-power cnc plasma cutting machine 1530
- REBOUND CNC table plasma cutting machine for metal 1.5x3m
- REBOUND CNC new automatic plasma cutting machine with good price
- table cnc best price modern plasma cutting machine for stainless
Product Details
Condition: | New | Place of Origin: | Liaoning, China | Brand Name: | LFM |
Model Number: | Q12Y-8x3200 plate shearing machine | Voltage: | 220V 380V 400V 415V 440V 480V | Rated Power: | 7.5kW |
Dimension(L*W*H): | 3900x1650x1620mm | Weight: | 7200KG | Certification: | CE; ISO9001:2008; GB/T19001:2008 |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

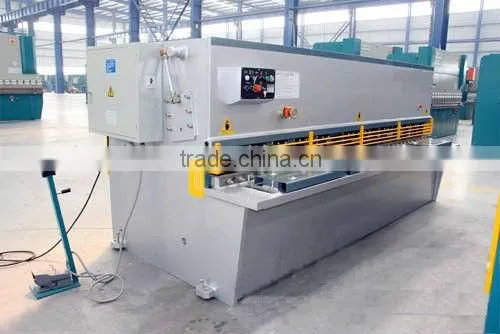

QC12Y-8x3200 hydraulic plate shearing machine
Such hydraulic plate shearing machine has following featurers:
1.Steel welding frame, sufficient strength and rigidity.
2. Hydraulic driving system, safety and reliable operation, and fine appearance.
3.Quick and flexible gap adjusting device, high shearing precision.
4. Reliable safety protection fence.
5. Digital display device(DRO) displaying extruded-plate length and shearing times.
6.Calibrating device with lamplight for measuring and shearing.
7. CE is approved;
8. Hydraulic Pendulous Shearing Machine;
9. Kinds of colors for your choice/can be Customized according to user's demand;
10. CNC types are available, too;
Kinds of colors for your choice/can be Customized according to user's demand;
QC12Y-8x3200 hydraulic plate shearing machine technial info:
Specifications | Unit | Parameter |
Plate thickness | mm | 8 |
Plate width | mm | 3200 |
Shearing angle |
| 1.3° |
Throat depth | mm | 100 |
Extruded-plate length | mm | 500 |
Stroke times | times/min | 14 |
Pole distance | mm | 3420 |
Motor power | KW | 7.5 |
Blade length | mm | 3300 |
Blade material |
| 6crw2si |
Axial plunger pump |
| 25MCY14-1B |
Left and right wallboard | mm | 40 |
Knife rest thickness | mm | 50 |
Dimension(L×W×H) | mm | 3900×1650×1620 |
Package Dimension(L×W×H) | mm | 4200×1900×2000 |
N.W/G.W | T | 7.2/8.2 |
