Specifications

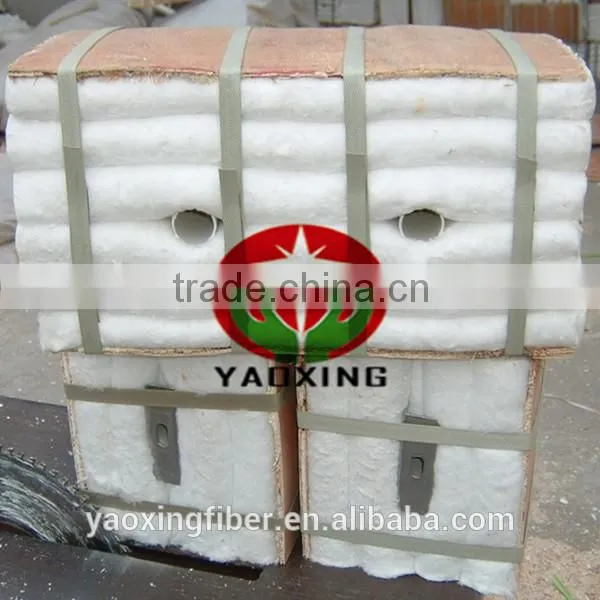

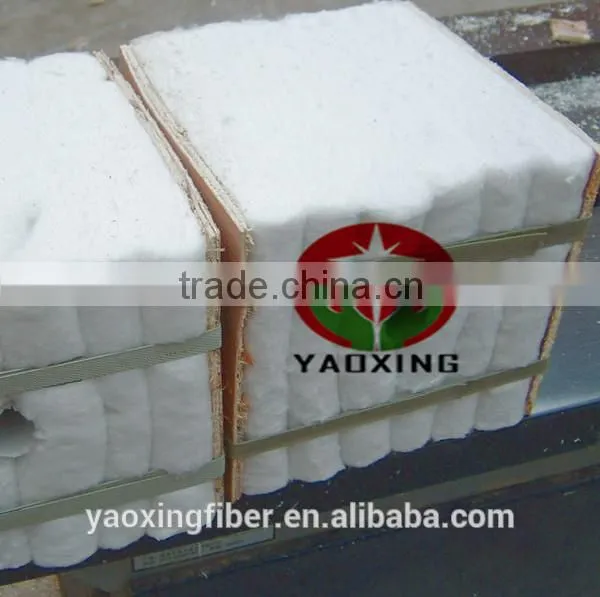

ceramic fiber module with anchor systeming temp:1300C
2.density:200kg/m3
3.specification:300*300*200
Refractory ceramic fiber module
Product Series:
1.1050 Ceramic Fiber Module YXTX-189
2.1260 Ceramic Fiber Module YXTX-289
3.1260 Ceramic Fiber Module YXTX-389
4.1400 Ceramic Fiber Module YXTX-489
5.1400 Ceramic Fiber Module YXTX-589
Characteristic:
Ceramic fiber folded module not only used in furnace, but also brought following
benefit with ended custom:
1.Folded blanket will impact tight with each other in differently way without gaps
after release from packing.
2.Elastically fiber blanket can withstand mechanical force.
3.The elasticity of fiber blanket could make up distortion of furnace casing and
with gaps between modules.
4.Because of the light weight, the decalescence capability is low as the insulation materials.
5.Low thermal conductivity can save much energy.
6.Excellent thermal shock resistance capability.
7.Can be betaken immediately as soon as being installed, for there is no need to be dried
and maintained.
8. The Anchor system should be far away from the hot surface of the modules
and kept in the lower temp.
Application:
Furnace lines of various industrial furnace and heating equipment in metallurgy, machine, construction and material, petrol-chemical and ferrous metal industry.
Oil heaters
Reformer
Forge furnaces
Process heaters
Preheating furnaces
Crude oil heaters
Fume incinerators
Tunnel kilns
Cracking Furnaces
Shuttle kilns
Annealing furnaces
Technical Index:
Classification Temperature |
1050 |
1260 |
1400 |
||
Code |
YXTX-189 |
YXTX-289 |
YXTX-389 |
TXTX-489 |
TXTX-589 |
Shrinkage on Heating (%) |
950°C×24h≤-3 |
1000°C×24h≤-3 |
1100°C×24h≤-3 |
1200°C×24h≤-3 |
1350°C×24h≤-3 |
Theoretical Density (kg/m3) |
200±10 |
||||
|
Shot Content (φ≥0.25mm)(%) |
≤15 |
||||
|
Theoretical Thermal Conductivity (W/m·k) |
0.050-0.060(200°C) |
||||
|
0.095-0.120(400°C) |
||||
|
0.160-0.195(600°C) |
||||
Al2O3 (%) |
≥44 |
≥45 |
≥45 |
52-55 |
38-40 |
Al2O3+SiO2 (%) |
≥96 |
≥97 |
≥99 |
≥99 |
- |
ZrO2 (%) |
- |
- |
- |
- |
15-17 |
Al2O3+SiO2+ ZrO2 (%) |
- |
- |
- |
- |
≥99 |
Fe2O3 (%) |
≤1.2 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
K2O+Na2O (%) |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
Specification (mm) |
300×300×200,According to your requirements |
||||
Package |
Woven Bag/Carton |
||||
Quality Control System |
ISO9001-2000 ,ISO14001-1996 |
||||
