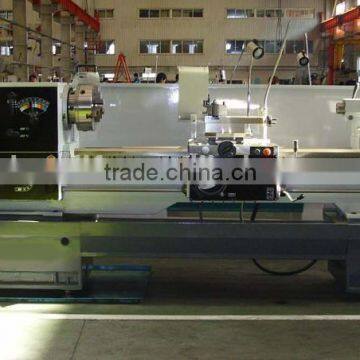

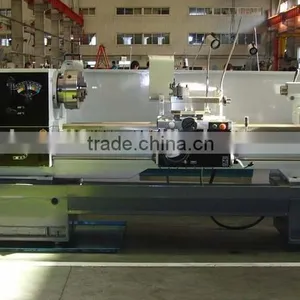

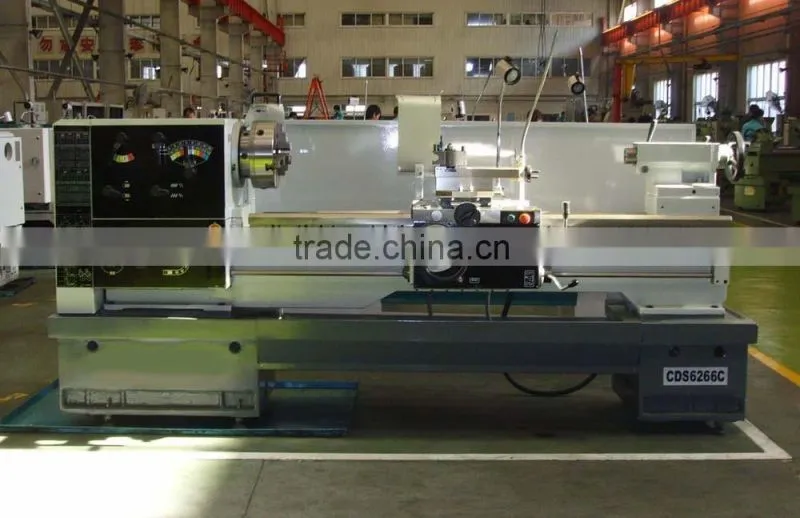

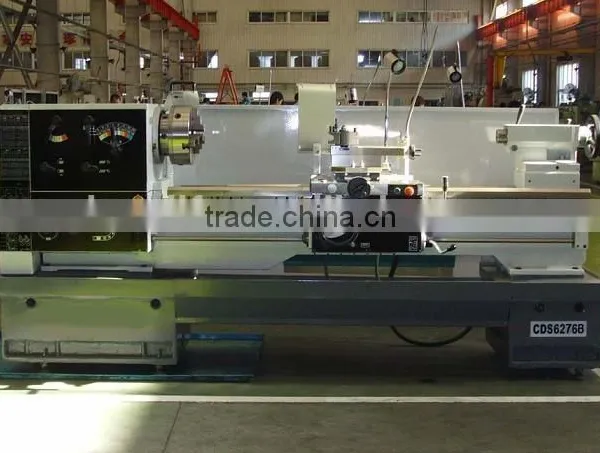

CDS6276B/C universal horizontal gap lathe
Such horizontal metal gap lathe machine has following features:
l With CE Certificate, with GAP;
l Standard spindle head: D8; spindle hole diameter:82mm;
l 3-jaw chuck and 4-jaw chuck: Direct coupled type
l Guide rail width: 394mm
l Guide rail hardness: HRC50, Depth1.5mm
High-frequency quenching (hardness HRC50)
l Maximum load capacity between two centers: 500kg
l Standard: the lathe is equipped with left-handed wheel;
right-handed wheel shall be informed specially when placing order;
l Apron iswith longitudinal orcross rapid shift handle;
l Special indication is required iftailstock sleeve is with a scale;
l With mechanical clutch and mechanical braking;
l kinds of colors for your choice/can be customized;
CDS6276B/C universal horizontal gap lathe's technical information:
Specifications |
Unit |
CDS6276B horizontal gap lathe |
CDS6276C horizontal gap lathe |
Max. swing over bed |
mm |
760 |
760 |
Max. swing over carriage |
mm |
540 |
540 |
Max. swing over gap |
mm |
965 |
965 |
Width of gap |
mm |
250 |
250 |
Max. length of work piece |
mm |
1000/1500/2000/2200/3000 |
1000/1500/2000/2200/3000 |
Width of guide way |
mm |
394 |
394 |
Spindle nose |
|
D8 |
D8 |
Spindle speed |
rpm |
26~2000 |
26~2000 |
Dia. of spindle bore |
mm |
82 |
105 |
Taper of spindle bore |
|
90/1:20 |
90/1:20 |
Longitudinal feed |
mm/rev |
0.044~1.48 |
0.044~1.48 |
Cross feed |
mm/rev |
0.022~0.74 |
0.022~0.74 |
Metric thread |
mm |
0.35~80 (53 or 77) |
0.35~80 (53 or 77) |
Inch thread |
tpi |
7/16~80 (47) |
7/16~80 (47) |
Module thread |
mm |
0.2~40 (45 or 66) |
0.2~40 (45 or 66) |
Diametrical pitch thread |
DP |
7/8~160 (42) |
7/8~160 (42) |
Max. travel of cross slide |
mm |
348 |
348 |
Travel of top slide |
mm |
150 |
150 |
Travel of tailstock quill |
mm |
150 |
150 |
Diameter of tailstock quill |
mm |
75 |
75 |
Taper bore of tailstock quill |
|
M5 |
M5 |
Main motor power |
|
10HP(7.5kW)/15HP(11kW.OPT) |
10HP(7.5kW)/15HP(11kW.OPT) |
Wooden box |
mm |
|
|
Pallet packing |
mm |
Depends on the length of lathe |
Depends on the length of lathe |
Packing & Weight |
kgs |
|
Name |
Size |
Note |
3-jaw chuck |
Φ315 mm |
For CDS6276 |
Steady rest |
Φ30~Φ200 mm |
For CDS6276 |
Follow rest |
Φ20~Φ100 mm |
For CDS6276 |
Dead center |
D115, DB1221 |
|
Center sleeve |
1 Set |
|
Foot brake |
1 set |
|
Oil gun |
1 Set |
|
Wrench tool |
1 set |
|
Foundation bolt |
1 set |
|
Key |
1 set |
MS705-2 for door of belt cover |
Keys |
2 set |
For door of electrical cabinet |
Foot brake |
1 set |
|
|
