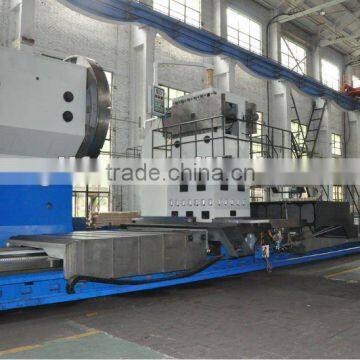

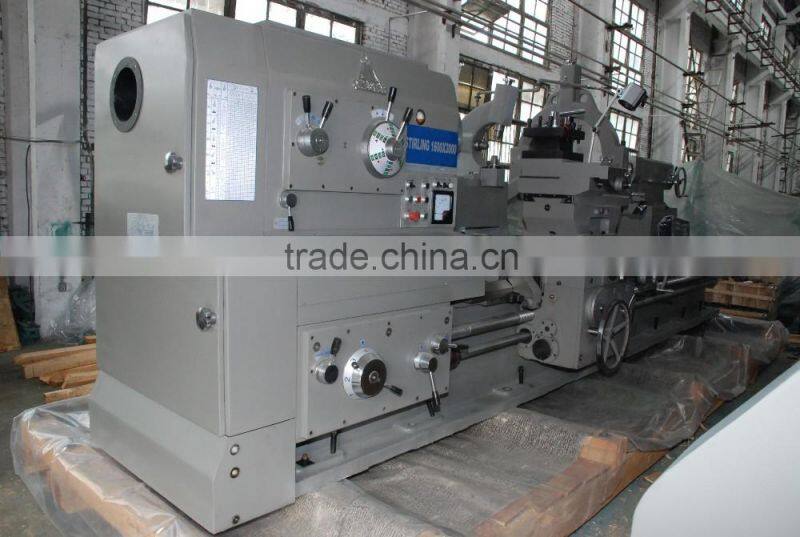

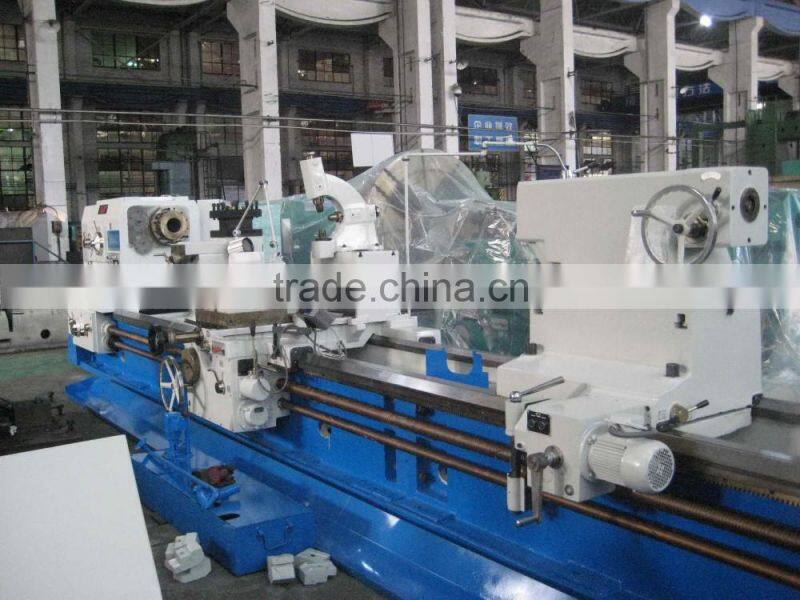

CWA6185x2000 4 Tons Load Heavy Duty Metal Lathe Machine

Long Life Machinery Import And Export Co., Ltd.

US$ 25,400 - 29,340 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 850mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number CW6285x2000 heavy duty metal lathe machine

Voltage Customer's Requirement

Power(W) 15kW

Dimension(L*W*H) 2,150x1,500x1,500mm

Weight 4300kgs

Certification CE, ISO9001:2008

After-sales Service Provided Engineers available to service machinery overseas

CWA6185x2000 heavy duty metal lathe machine

Main Features

Such heavy duty lathe machines have following features:

1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.

2. can also be used for drilling, boring trepanning etc.

3. gap lathe can process the deformation parts;

4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.

5. threads types: Metric, inch, diametrical pitch, module thread

6. DRO is avaible;

Main Technical Data

Specifications	Unit	Parameter
Swing over bed	mm	850
Max. Swing over carriage	mm	520
Max. Swing over gap	mm	1150
Gap width from chuck	mm	470
Distance between centers	mm	2000
Max. length to be cut	mm	1800
Max. bed ways width	mm	600
Max. supporting capacity of centers	kg	4000
Spindle nose		ISO A2-11
Spindle bore		100
Spindle speed		5~630 (4 steps)
Number of feeds and range	rpm	64
Longitudinal	mm	0.08 ~ 9.6
Cross slide	mm	0.04 ~ 4.8
Compound slide	mm	0.02 ~ 2.4
No. & Range of metric threads	mm	56 Kinds, 1 ~ 120
No. & Range of inch threads	T.P.I.	56 Kinds 30 ~ 1 / 4
No. & Range of module threads		56 Kinds 0.5 ~60
No. & Range of diametric pitchs		56 Kinds 60 ~ 0.5
Rapid traverse speed (longitudinal)	mm/min	3640
Rapid traverse speed (cross)	mm/min	1800
Max. travel of cross slide	mm	600
Max. travel of tool post	mm	250
Dia. Of tailstock sleeve	mm	120
Travel of tailstock sleeve		Morse No. 6
Power of main motor with inverter	kW	15
Power of rapid motor	kW	1.5
Power of pump motor	kW	0.55
Power of cooling motor	kW	0.15
Net dimension of the machine	mm	2,150×1,500×1,500
Packing dimension of the machine	mm	2,500×1,900×1,820
N. W./ G. W.	Kg	4,300 / 4,850

Free Std Accessories
