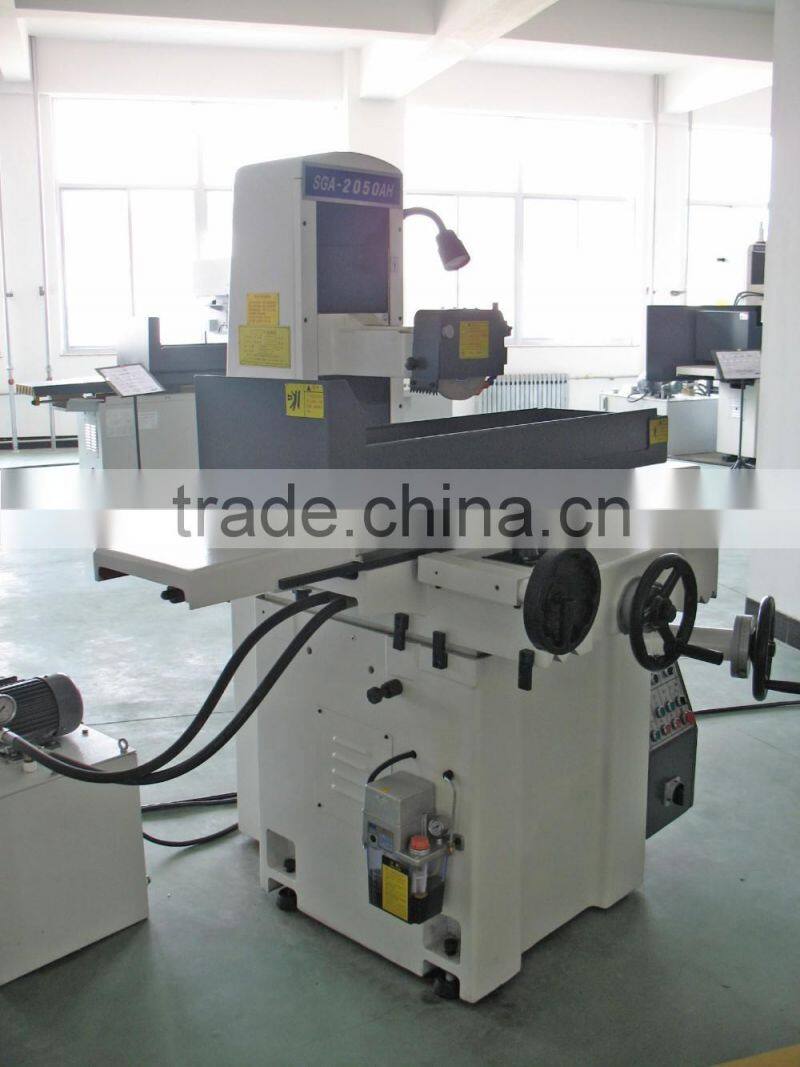

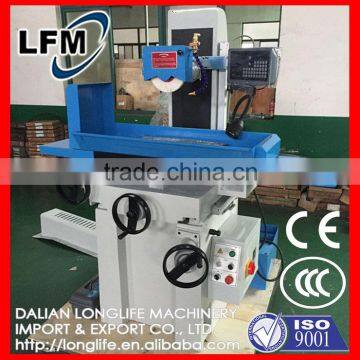

SG250 manual surface grinding machine
Such manual surface grinding machine has following features:
3-axis manual operation
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
CE Standard and CE Certificate;
Item/ Model |
Unit |
SG250 |
Max. width to be ground |
mm |
220 |
Max. length to be ground |
mm |
520 |
Max. height to be ground |
mm |
350 |
Table size |
mm |
200x520 |
Permanent magnetic chuck size(optional) |
mm |
200x450 |
Max. longitudinal travel |
mm |
570 |
Max. cross travel |
mm |
250 |
Distance from spindle center to table surface |
mm |
450 |
Feed of vertical handwheel(Per rev.) |
mm |
2 |
Feed of vertical handwheel(Per div.) |
mm |
0.005 |
Grinding wheel size(OD*W*ID) |
mm |
200x20x31.75 |
Spindle speed |
r/min |
3450(60Hz) 2850(50Hz) |
Power of spindle head |
kW |
Standard 1.5(build in spdindle:1.1kW) |
Max. load capacity (include permanent magnetic chuck) |
kg |
140 |
Machine weight |
kg |
1120 |
Machine appearance size(L x W x H) |
mm |
1450x1390x1770 |
Package dimension(L x W x H) |
mm |
1670x1700x1980 |
Package size(dismantle table) (L x W x H) |
mm |
1670x1120x1980 |
Number |
Item |
1 |
Wheel |
2 |
Balancing arbor |
3 |
Hoisting set |
4 |
Spanner |
5 |
Cooling system |
6 |
Wheel chuck |
7 |
Wheel dresser base |
8 |
Leveling screw and wedges |
9 |
Tool box and special wrench |
10 |
Working lamp |
Kinds of colors for your choice/can be Customized according to user's demand;
