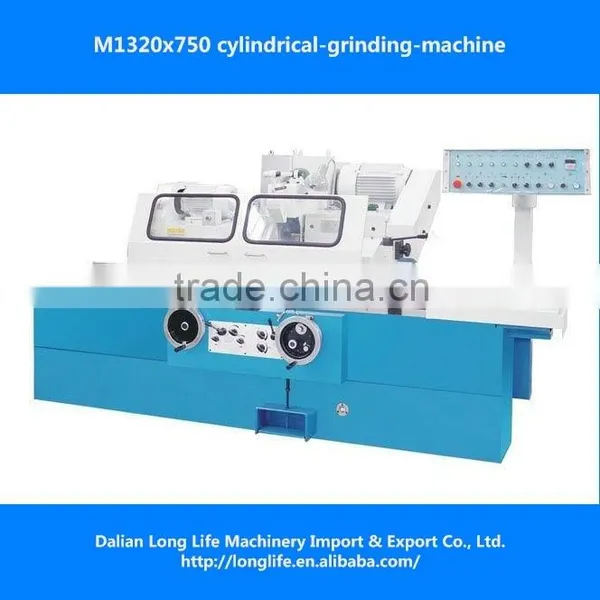

M1320x750 cylindrical grinding machine
Such cylindrical grinding machine has following features:
Main function of the Multi-Grind: for external & internal grinding of cylindrical workpiece, grinding conical workpiece, surface grinding, but also for grinding vertical plane, inclined plane, and groove as well as simple tool grinding such as kinds of milling cutters, reaming cutters, planer tools, turning tools, etc.
Can be used in tool workshop, repair workshop, research& study institute and medium-sized and small factory, etc.
It can move back and forth automatically by using hydraulic drive, and it can also be controlled by manual hydraulic servo mechanism, easy to operate.
Specifications |
Unit |
Parameter |
Grinding capacity |
mm |
Φ200×500 |
Grinding diameter with steady-rest min/max |
mm |
8/60 |
Without steady-rest min/max |
mm |
8/200 |
Max. work weight |
kg |
50 |
Max. grinding length |
mm |
750 |
Center height |
mm |
135 |
Distance between centers |
mm |
500 |
Max. grinding length when dressing wheel on tailstock |
mm |
400 |
Wheel spindle speed 50Hz |
m/s |
35,50,70,100,140,280 |
Wheel spindle speed 60Hz |
m/s |
42,60,84,120,168,336 |
Wheel dimensions (O.D.×W×I.D) |
mm |
Max: Φ400×50×Φ203 |
Wheel dimensions (O.D.×W×I.D) |
mm |
Min: Φ300×50×Φ203 |
Wheel peripheral velocity |
m/s |
35 |
Wheelhead spindle speed |
r/min |
1670 |
Wheelhead displacement |
mm |
Max: 250 |
Wheelhead rapid advance & withdrawal |
mm |
50 |
Max. worktable longitudinal travel |
mm |
550 |
Total motor power |
kW |
5.43 |
Overall dimensions (L×W×H) length |
mm |
2750×1800×1650 |
Machine weight |
kg |
3340 |
No |
Item |
|
Size |
|
External Circularity |
mm |
0.0015 |
|
Internal Circularity |
mm |
0.0025 |
|
Circularity |
m |
Ra0.32 |
|
Surface roughness |
µm |
Ra0.63 |
