MK1350x2000 High Class Cnc Cylindrical Grinding Machine fo Sale

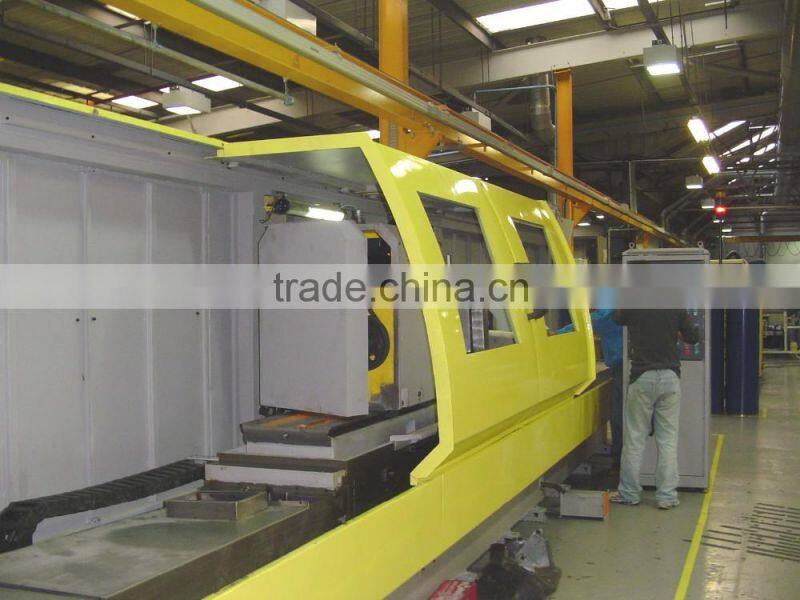

MK1350x2000 High Class Cnc Cylindrical Grinding Machine fo Sale photo-1

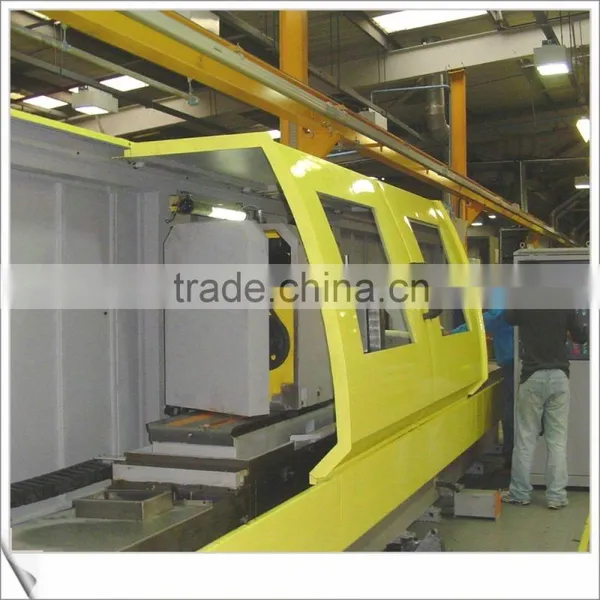

MK1350x2000 High Class Cnc Cylindrical Grinding Machine fo Sale photo-2
US$ 230,000 - 230,645 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cylindrical Grinding Machine
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Tianjing/Shanghai/Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Cylindrical Grinding Machine
CNC or Not CNC
Max. Grinding Diameter 500mm
Max. Grinding Length 2000mm
Place of Origin Liaoning, China
Brand Name LFM
Model Number MK1350x2000 cnc cylindrical grinding machine
Voltage Customer's Requirement
Power(W) 15kW
Dimension(L*W*H) 4400x1800x1900mm
Weight 10500kgs
Certification CE; ISO9001:2008; GB/T19001:2008;
After-sales Service Provided Engineers available to service machinery overseas

MK1350x2000 cnc cylindrical grinding machine

Main Featurers

Such cnc cylindrical grinding machine has following features:

Economic automatic type, but with mature structure and steady performance

High precision, high rigidity and high stability

CNC controller is easy to operate;

Suitable for many fields such as motor, hydraulic, automobiles, for external grinding of shaft parts in large quantity.

Main Technical Data

Specifications

Unit

Parameter

Max. Grinding Diameter

mm

Φ500

Min.Grinding Diameter

mm

Φ25

Max. Grinding Length

mm

2000

Max. Workpiece Weight

kg

  1000(with roll)

Spindle speed

r/min

16~160

Center of headstock



MT #6

Center of tailstock



MT #6

Travel of tailstock quill

mm

70

Wheel Size ( diameter x width x bore )

mm

Φ750×75×Φ305

Wheel peripheral velocity

m/s

45

Longitudinal feed speed of wheel rest

   mm/min                                                                                                              mm/min

0.1~2000

Longitudinal rapid speed of worktable

mm/min

10~4000

Rotary angel of worktable



C.W .2°,CCW 3°

Min resolution ratio for CNC

mm

0.001

CNC controller



Kaitong

Motor of spindle power

kW

15

Machine Size (L×W×H)

mm



Packing Size (L×W×H)

mm



Gross/Net

kg



Accuracy

Item

value

Roundness

≤0.005mm

Consistency in cross section

0.01mm

Roughness

Ra0.16 μm

Factory Overview

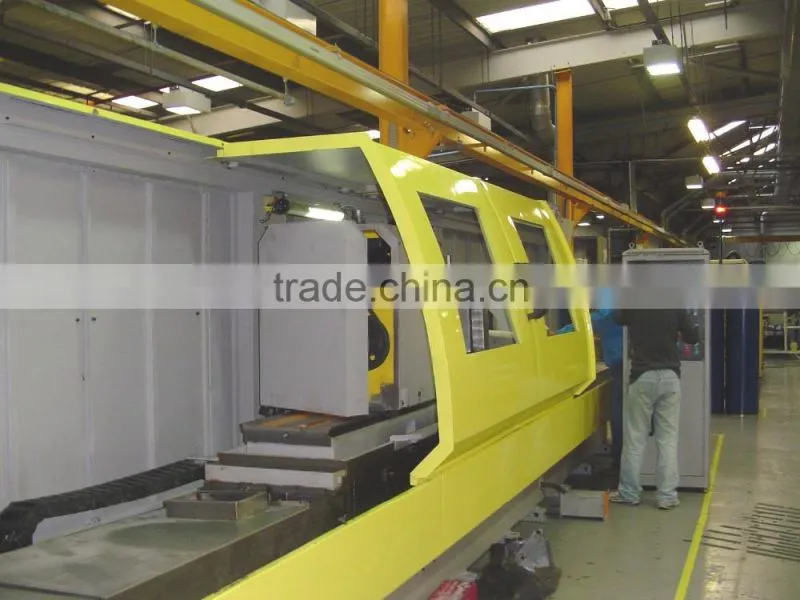

MK1350x2000 high class cnc cylindrical grinding machine fo sale
