Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace

Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace thumbnail-1
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace thumbnail-2
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace thumbnail-3
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace thumbnail-4
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace thumbnail-5
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace thumbnail-6
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace photo-1
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace photo-2
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace photo-3
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace photo-4
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace photo-5
Thermal Insulation Ceramic Fiber Module for Drop Tube Furnace photo-6
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Feature:
Fireproof
Contact Supplier Request Quote Chat Now
Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Feature Fireproof



Product Description

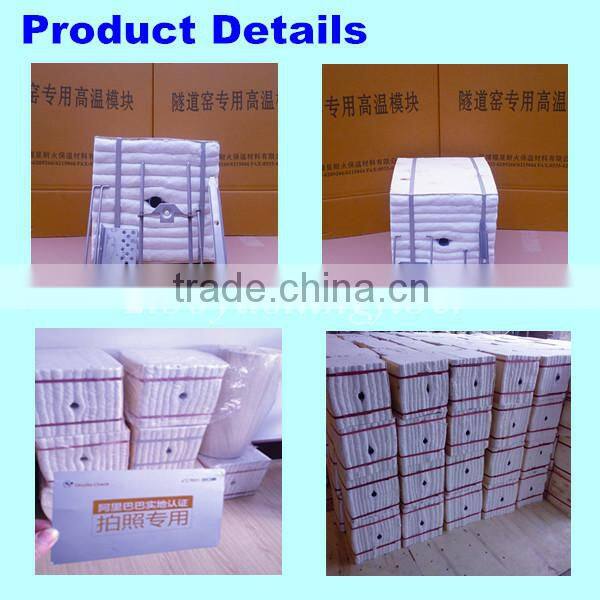

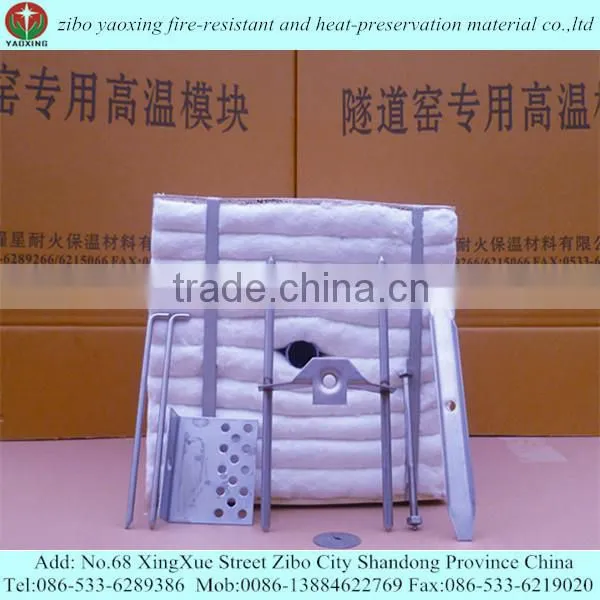

YAOXING ceramic fiber folded module was processed according to the fiber module structure size by special machine on the ceramic fiber needle blanket which was corresponding material.

In the course of processing, they should be maintained a certain proportional reduction,

to ensure that compressed to form a integer set without joint between ceramic fiber folded blanket

after ceramic fiber folded module have been built.

Owing to the ceramic fiber folded module  expand differently.

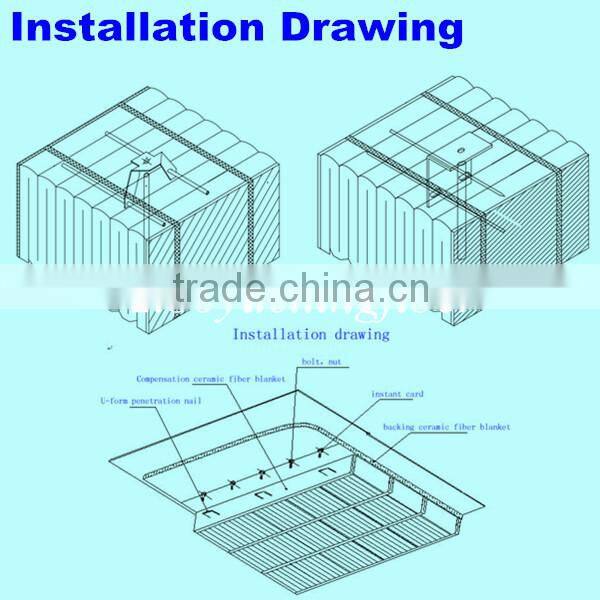

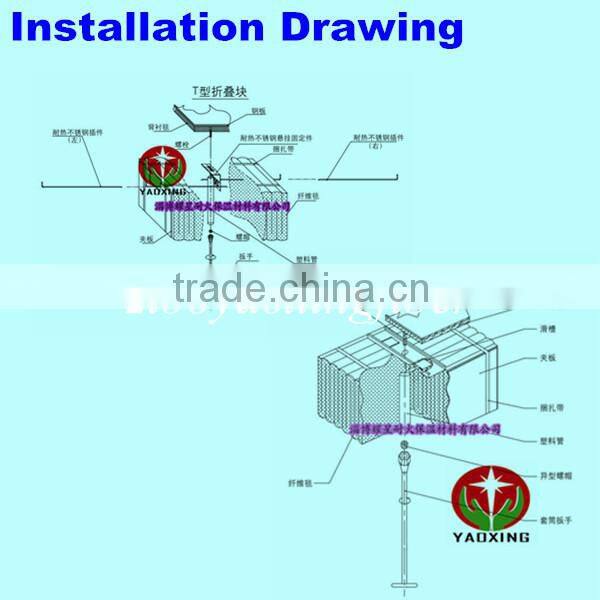

Ceramic fiber folded module could be fixed to the stud

which in the steel board of industrial furnace by series of anchors.

thermal insulation ceramic fiber module for drop tube furnace

Data Sheet





Classification Temperature

1050

1260

1400

Code

YXTX-189

YXTX-289

YXTX-389

TXTX-489

TXTX-589

Shrinkage on Heating (%)

950℃×24h

≤-3

1000℃×24h

≤-3

1100℃×24h

≤-3

1200℃×24h

≤-3

1350℃×24h

≤-3

Theoretical Density (kg/m3)

200±10

Shot Content

(φ≥0.25mm)(%)

≤15

Theoretical

Thermal

 Conductivity

(W/m·k)

0.050-0.060(200℃)

0.095-0.120(400℃)

0.160-0.195(600℃)

 Al2O3 (%)

≥44

≥45

≥45

52-55

38-40

Al2O3+SiO2 (%)

≥96

≥97

≥99

≥99

-

ZrO2 (%)

-

-

-

-

15-17

Al2O3+SiO2+ ZrO2 (%)

-

-

-

-

≥99

Fe2O3 (%)

≤1.2

≤1.0

≤0.2

≤0.2

≤0.2

K2O+Na2O (%)

≤0.5

≤0.5

≤0.2

≤0.2

≤0.2

 Specification (mm)

300×300×200,According to your requirements

Package

Woven Bag/Carton

Quality Control System

ISO9001-2000 ,ISO14001-1996
Application

Furnace lines of various industrial furnace and heating equipment in metallurgy,

 machine, construction and material, petrol-chemical and ferrous metal industry.

1.Oil heaters

2.Reformer

3.Forge furnaces

4.Process heaters

5.Preheating furnaces

6.Crude oil heaters

7.Fume incinerators

8.Tunnel kilns

9.Cracking Furnaces

10.Shuttle kilns

11.Annealing furnaces

thermal insulation ceramic fiber module for drop tube furnace

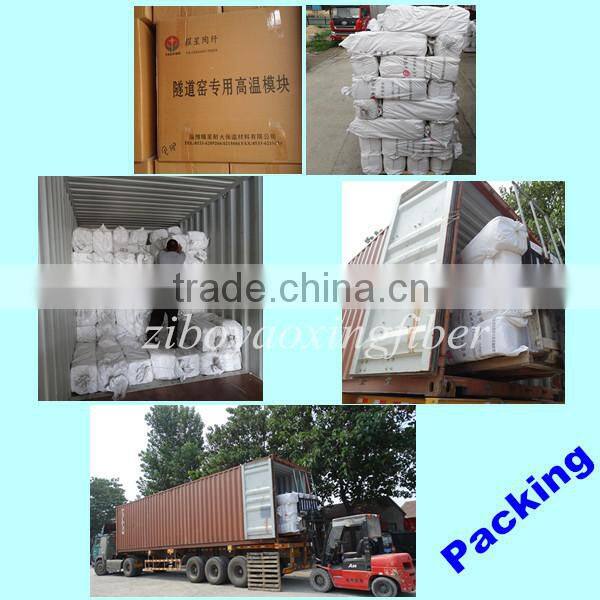

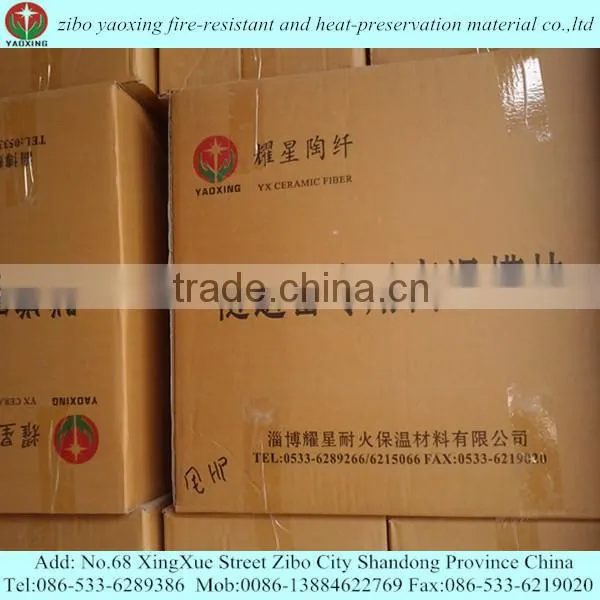

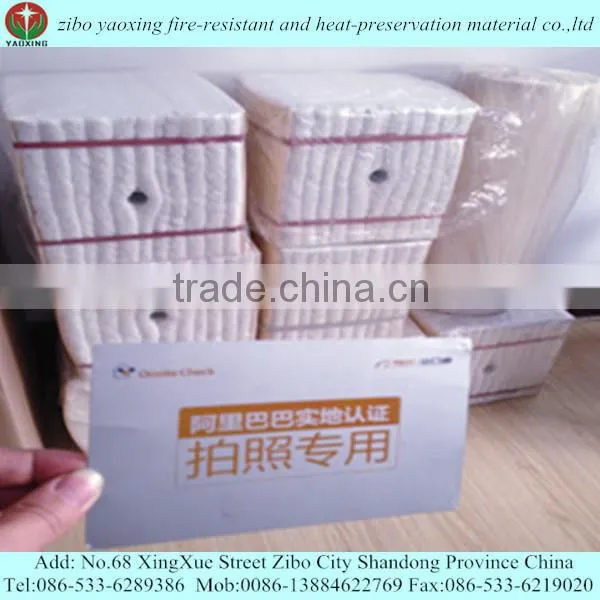

Packaging & Shipping

 thermal insulation ceramic fiber module for drop tube furnace

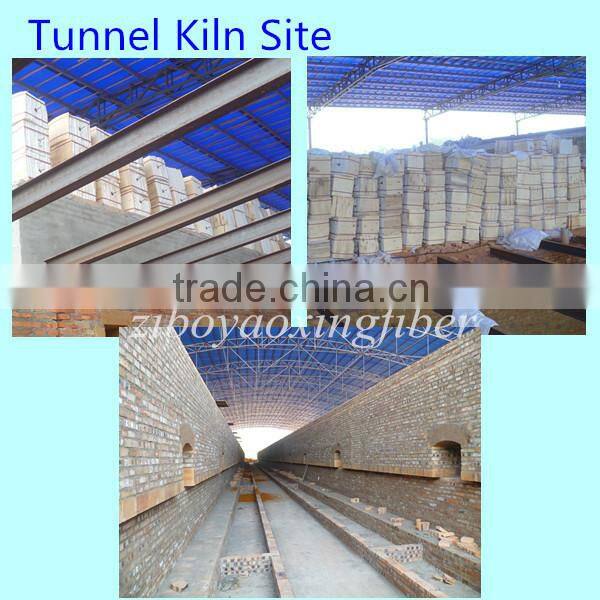

Tunnel Kiln Site







thermal insulation ceramic fiber module for drop tube furnace



thermal insulation ceramic fiber module for drop tube furnace

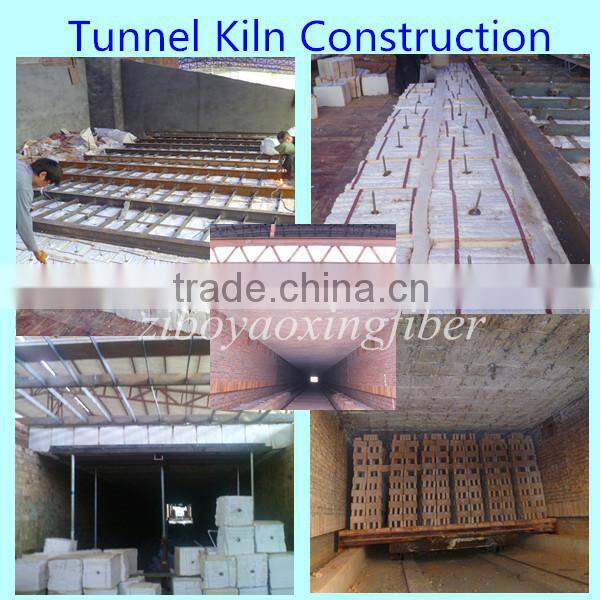

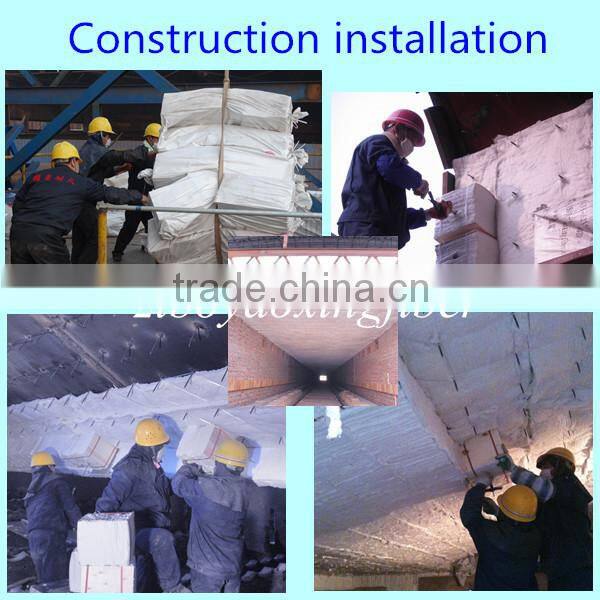

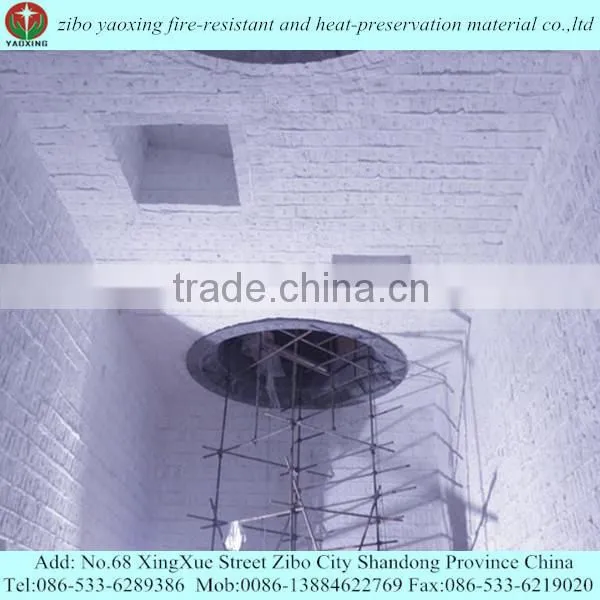

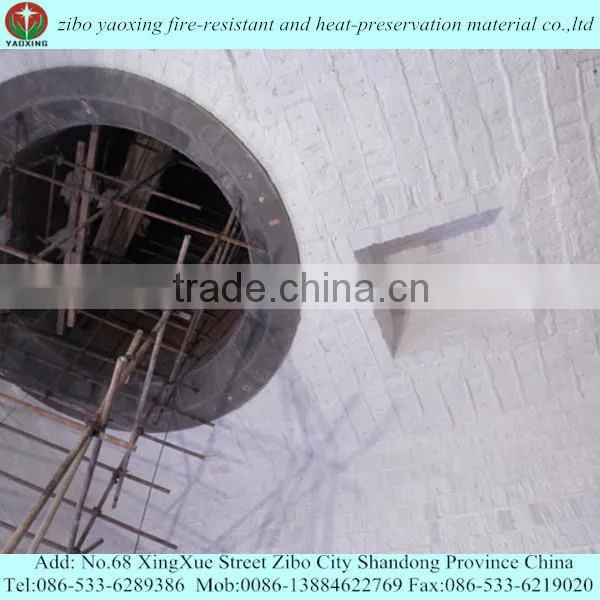

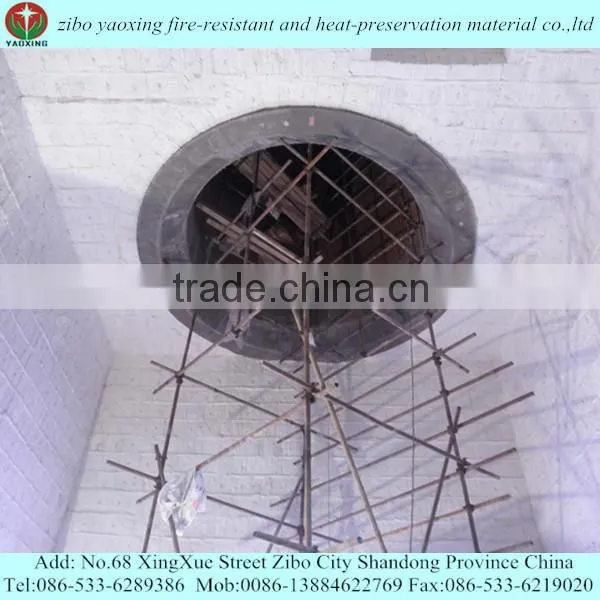

Construction









thermal insulation ceramic fiber module for drop tube furnace



thermal insulation ceramic fiber module for drop tube furnace



thermal insulation ceramic fiber module for drop tube furnace





Our Services



Furnace Construction Experience



We are zibo yaoxing fire-resistant and heat preservation materials co., ltd.

is a professional team of furnace construction.

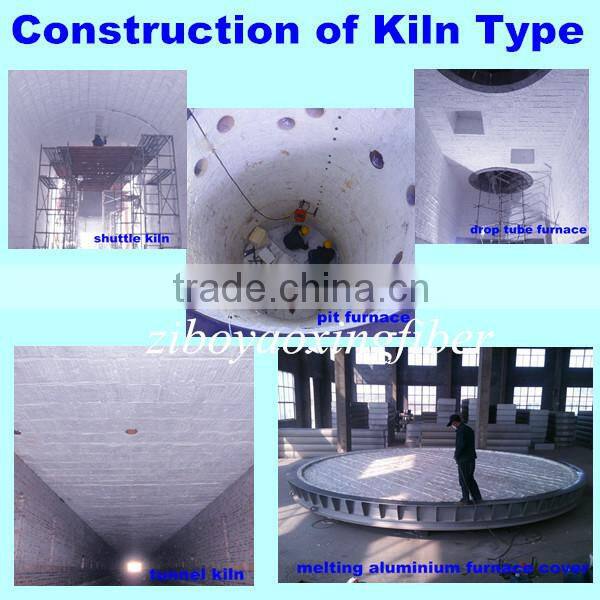

We have rich experience in construction of tunnel kilns,car furnace,

pit furnace,drop tube furnace,melting aluminium furnace cover,furnace door and so on.



And our ceramic fiber blankets,ceramic fiber modules,

refractory anchors and other related furnace refractory materials are exported

to Malaysia,Indonesia,Vietnam,Tajikistan and so on.



Even more important,we can provide you the professional instructor in your construction site.



So,choosing us is our best opportunity

to exchange the international experience of furnace construction with each other.



Sincerely hope we can have a pleasant cooperation in the future.
