Specifications
10-50mm thick ceramic board400mm 600mm 1000mm width
220-400kg/m3
1050C 1260C 1400C
Low Heat Storage Excellent stability
Product Series:
1. YAOXING 1050 Ceramic Fiber Board YXTX-134
2. YAOXING 1260 Ceramic Fiber Board YXTX-234
3. YAOXING High Pure Ceramic Fiber Board YXTX-334
4. YAOXING High Aluminum Ceramic Fiber Board YXTX-434
5. YAOXING High Zirconium Ceramic Fiber Board YXTX-534
Description:
1. .YAOXING 1050/1260 Ceramic Fiber Board was processed by the advanced production line, which was adopted the full automatic control and the continuous- processing method.
2. .YAOXING 1050/1260 Ceramic Fiber Board have many typical characteristics, such as exact measurement,excellent toughness,excellent heat preservation and can be cut discretionally
3. .The processing work is much advanced, which totally avoid the long production cycle and the low production capacity.
4. YAOXING 1050/1260 Ceramic Fiber Board is divided in different series by the temperature,can be widely used as the back lining of industrial furnace and the hot surface of the low temperature furnace. It is one of the guarantees of reaching the energy conservation and the high quality.
Characteristic:
1. Low Heat Storage
2. low thermal conductivity
3. Excellent compressive strength
4. Not fragile materials
5. Excellent flexibility
6. Exact measurement
7. Excellent flatness
8. Homogeneous structure
9. Excellent machine-processed capability
10. Easily fixing specialty
11. Processed continuously,the fibers interweave shapely
12. Excellent stability
13. Excellent chemical stability and thermal shock resistance
Application:
1. Heat preservation and insulation materials as the back lines for the kilns in the field of cement building
2. Heat preservation materials as the back lines for the kilns in the field of ceramic
3. Heat preservation materials as the wall lines and back lines for the kilns in the field of metallurgy and petrochemical industry
4. Heat preservation materials as the wall lines and back lines for the Glass furnace.
5. Refractory and insulating materials for heat treatment equipment
6. The back lines of refractory brick for electrolytic reducing bath in aluminum factory
7. Materials of the wall lines and back lines of heat and pyroreaction equipment
Technical Index:
Name | 1050 Ceramic Fiber Board | 1260 Ceramic Fiber Board | High Pure Ceramic Fiber Board |
Code | YXTX-134 | YXTX-234 | YXTX-334 |
Shrinkage on Heating (%) | 950×24h≤-3 | 1000×24h≤-3 | 1100×24h≤-3 |
Theoretical Thermal Conductivity W/(m·k) | 0.060-0.085(200°Caverage) 0.092-0.112(400°Caverage) 0.112-0.126(600°Caverage)
| ||
Compressive Strength ≥(Mpa) | 0.5 | ||
Theoretical Density (kg/m3) | 220-320 | 220-400 | 220-450 |
Moisture Content (%) | ≤1 | ||
Organic Content (%) | ≤8 | ||
Specification (mm) | 1200/1000/900/600×1000/600/400×10/20/30/40/50 According to your requirements | ||

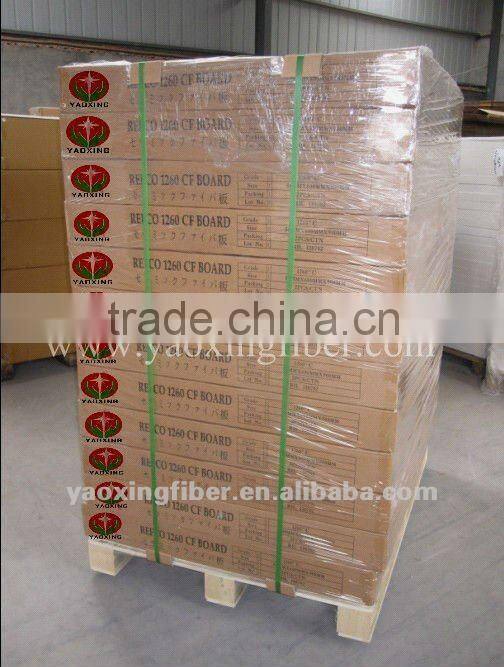

Package | Plastic Bags inside, Carton outside | ||
Quality Control System | ISO9001-2000 ISO14001-1996 | ||
Technical Index:
Name | High Aluminum Ceramic Fiber Board | High Zirconium Ceramic Fiber Board | |
Code | YXTX-434 | YXTX-534 | |
Shrinkage on Heating (%) | 1200×24h≤-3 | 1350×24h≤-3 | |
Theoretical Thermal Conductivity W/(m·k) | (200°Caverage) (400°Caverage) (600°Caverage)
| 0.103 0.125 0.151 | |
Compressive Strength,≥(Mpa) | 0.5 | ||
Theoretical Density (kg/m3) | 220-500 | ||
Moisture Content(%) | ≤1 | ||
Organic Content(%) | ≤8 | ||
Specification (mm) | 1200×1000×10,According to your requirements | ||
Package | Plastic Bags inside, Carton outside | ||
Quality Control System | ISO9001-2000 ISO14001-1996 | ||
Note:As the special provisions,the package volume of the Thk12.7mm and Den360~400 Kg/m is 16PCS/Carton
