DL25/30/32 twin spindle cnc turning center Parameter

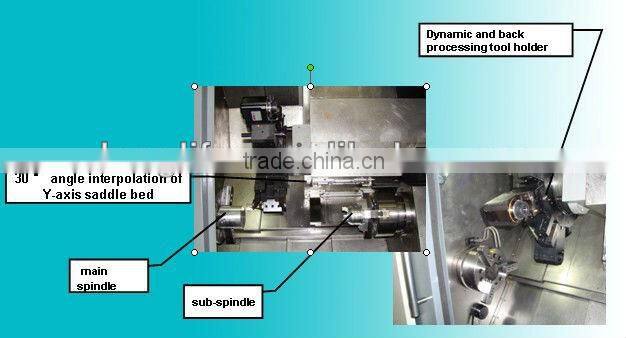

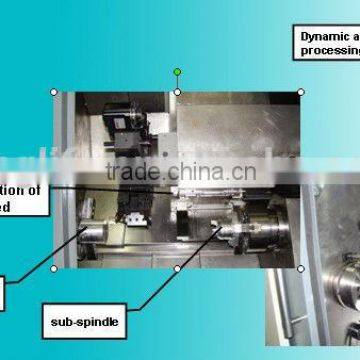

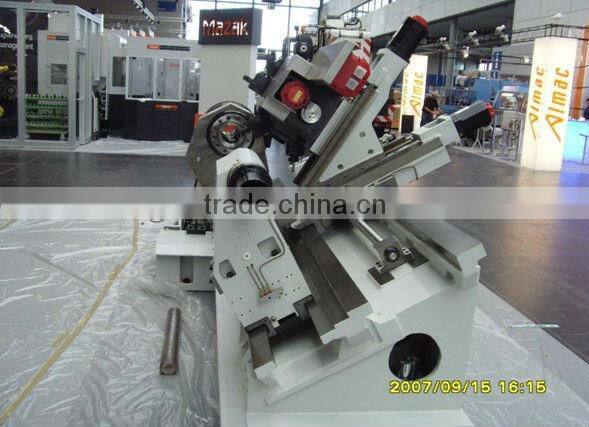

1.The DL-MHSTY series turning centers are designed with 45 degree one piece slant bed structure,
2.double spindles and double turrets with Y-axis, X,Y,Z three axes under control,
3.12 positions servo driven on both turrets, can accomplish bi-direction machining of the work piece.
4. each turret can work with main and sub spindle (C1, C2) to achieve synchronous 4 axes movement,
and complete complicated shape components machining.
Standard Configuation:
l 45°overall inclined bed, Double/Twin Spindle, double knives, Four-axis (X, Y, Z, C) Linkage, Double knives with a Y-axis and power turret,12-station servo Power Turre, Radial, axial momentum knife ,Double-spindle chuck:10/15″Hollow chuck, Lateral waste device;
l CE Standard and CE Certificate.
Model | unit | DL-25MHYS | DL30MHSTY | DL-32MY |
Max. swing over bed | mm | 500 | 260 | 700 |
Max. turning dia | mm | 400 | 260 | 450 |
Max. turning length | mm | 650 | 1160 | 1950 |
Spindle | ||||
Chuck size |
| 10″Hydraulic(thru hole) | 10″Hydraulic(thru hole) | 15’’ hydraulic(thru hole) |
Max. Spindle speed | rpm | 3500 | 3000 | 2000 |
Spindle bore | mm | 87 | 86 | 132 |
Main spindle motor power | kW | 15/20.5 | 18.5/25.5 | 18.5/22 |
Auxiliary spindle | ||||
Chuck size |
| 8″Hydraulic (thru hole) | 10″Hydraulic(thru hole) | - |
Max. Spindle speed | rpm | 3500 | 3000 | - |
Dia. of spindle through hole(mm) | mm | 65 | 86 | - |
Main spindle motor power | kW | 11/15 | 18.5/25.5 | - |
Turret | ||||
Live tool quantity |
| 1 | 2 | 1 |
Number of tool stations |
| 12 | 12 | 12 |
Tool Shank Size(OD) | mm | 25×25 | 25×25 | 25×25 |
Tool Shank Size(ID) | mm | Φ40/32 /25/20/16 | Φ40/32 /25/20/16 | Φ40/32 /25/20/16 |
Max.speed of live tool | rpm | 4000 | 4000 | 4000 |
Working stroke | ||||
X1&X2 axis travel | mm | 240 | 215/215 | 640 |
Z1&Z2 axis travel | mm | 720 | 880/80 | 2030 |
Y axis travel | mm | ±50 | ±60 | ±60 |
W axis(sub spindle) travel | mm | -- | 1160 | -- |
Machine weight | ||||
Net weight | kg | 8500 | 12000 | 13000 |
New Design:
