Specifications
1.specification:900*600*10mm2.Density:320kg/m3
3.CTN Size:910*610*220mm
4.20PCS/CTN
5.240PCS/20GP
Vacuum Formed Boards
Description:

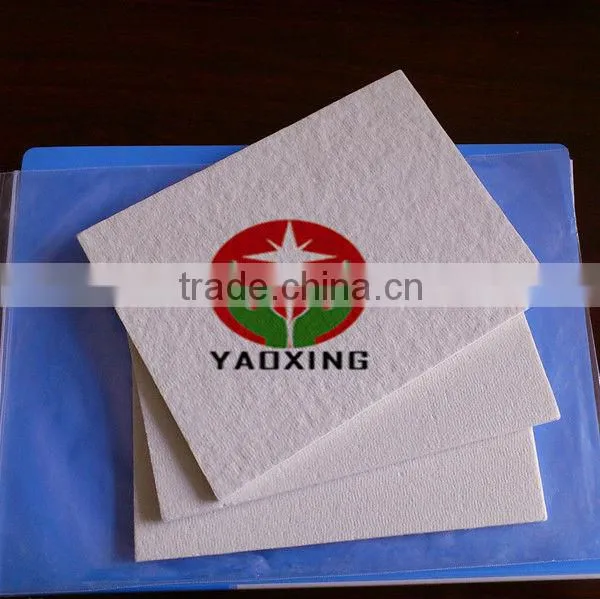

YAOXING 1050/1260 Ceramic Fiber Board was processed by the advanced production line,
which was adopted the full automatic control and the continuous- processing method.
YAOXING 1050/1260 Ceramic Fiber Board have many typical characteristics,
such as exact measurement,excellent toughness,excellent heat preservation
and can be cut discretionally
The processing work is much advanced,
which totally avoid the long production cycle and the low production capacity.
YAOXING 1050/1260 Ceramic Fiber Board is divided in different series by the temperature,
can be widely used as the back lining of industrial furnace
and the hot surface of the low temperature furnace.
It is one of the guarantees of reaching the energy conservation and the high quality.
Characteristic:
Low Heat Storage,low thermal conductivity
Excellent compressive strength
Not fragile materials, excellent flexibility
Exact measurement,excellent flatness
Homogeneous structure, excellent machine-processed capability
Easily fixing specialty
Processed continuously,the fibers interweave shapely and excellent stability
Excellent chemical stability and thermal shock resistance
Technical Index:
Name |
1050 Ceramic Fiber Board |
1260 Ceramic Fiber Board |
High Pure Ceramic Fiber Board |
Code |
YXTX-134 |
YXTX-234 |
YXTX-334 |
|
Shrinkage on Heating (%) |
950×24h≤-3 |
1000×24h≤-3 |
1100×24h≤-3 |
|
Theoretical Thermal Conductivity W/(m·k) |
0.060-0.085(200°Caverage) 0.092-0.112(400°Caverage) 0.112-0.126(600°Caverage)
|
||
|
Compressive Strength ≥(Mpa) |
0.5 |
||
|
Theoretical Density (kg/m3) |
220-320 |
220-400 |
220-450 |
|
Moisture Content (%) |
≤1 |
||
|
Organic Content (%) |
≤8 |
||
|
Specification (mm) |
1200/1000/900/600×1000/600/400×10/20/30/40/50 According to your requirements |
||
Package |
Plastic Bags inside, Carton outside |
||
Quality Control System |
ISO9001-2000 ISO14001-1996 |
||
Application:
Heat preservation and insulation materials as the back lines for the kilns
in the field of cement building
Heat preservation materials as the back lines for the kilns in the field of ceramic
Heat preservation materials as the wall lines and back lines for the kilns
in the field of metallurgy and petrochemical industry
Heat preservation materials as the wall lines and back lines for the Glass furnace.
Refractory and insulating materials for heat treatment equipment
The back lines of refractory brick for electrolytic reducing bath in aluminum factory
Materials of the wall lines and back lines of heat and pyroreaction equipment
