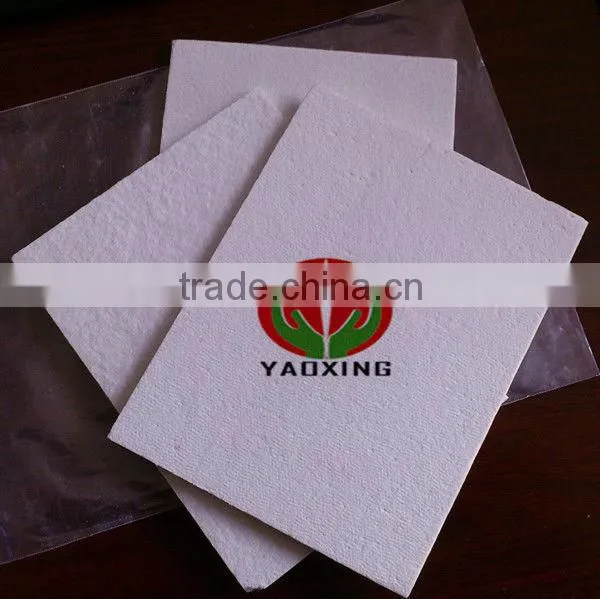

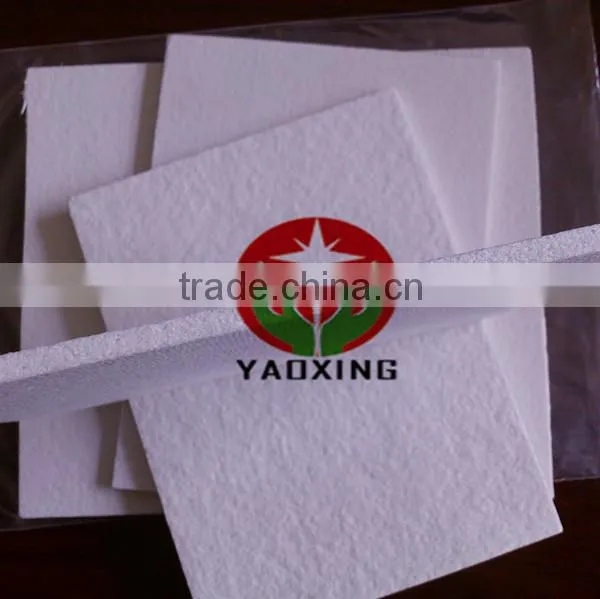

30mm thickness ceramic fiber board
Technical Index
Name |
High Aluminum Ceramic Fiber Board |
High Zirconium Ceramic Fiber Board |
|
Code |
YXTX-434 |
YXTX-534 |
|
Shrinkage on Heating (%) |
1200×24h≤-3 |
1350×24h≤-3 |
|
|
Theoretical Thermal Conductivity W/(m·k) |
(200°Caverage) (400°Caverage) (600°Caverage)
|
0.103 0.125 0.151 |
|
Compressive Strength,≥(Mpa) |
0.5 |
||
Theoretical Density (kg/m3) |
220-500 |
||
Moisture Content(%) |
≤1 |
||
Organic Content(%) |
≤8 |
||
Specification (mm) |
1200×1000×10,According to your requirements |
||
Package |
Plastic Bags inside, Carton outside |
||
Quality Control System |
ISO9001-2000 ISO14001-1996 |
||
Characteristic
l. Low Heat Storage,low thermal conductivity
2.Excellent compressive strength
3.Not fragile materials, excellent flexibility
4.Exact measurement,excellent flatness
5.Homogeneous structure, excellent machine-processed capability
6.Easily fixing specialty
7.Processed continuously,the fibers interweave shapely and excellent stability
8.Excellent chemical stability and thermal shock resistance

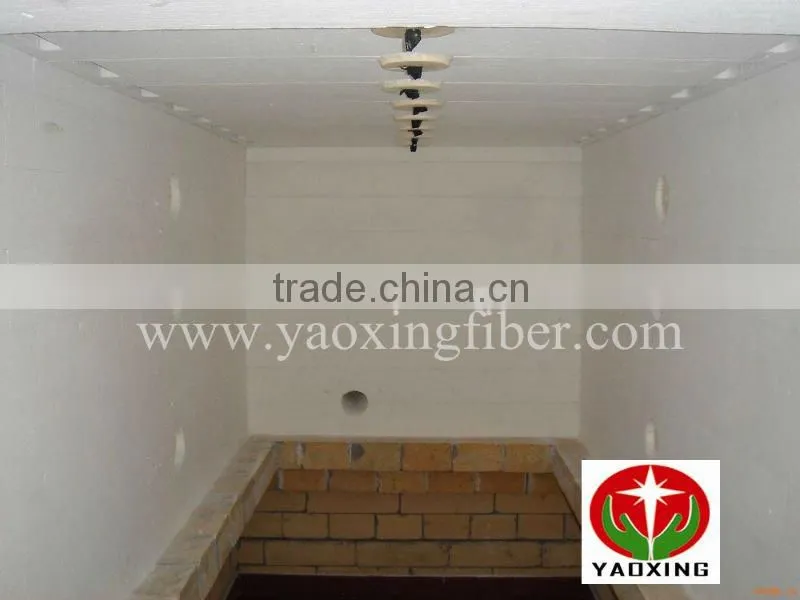

Application:
1.Heat preservation and insulation materials as the back lines for the kilns
in the field of cement building
2.Heat preservation materials as the back lines for the kilns in the field of ceramic
3.Heat preservation materials as the wall lines and back lines for the kilns
in the field of metallurgy and petrochemical industry
4.Heat preservation materials as the wall lines and back lines for the Glass furnace.
5.Refractory and insulating materials for heat treatment equipment
6.The back lines of refractory brick for electrolytic reducing bath in aluminum factory
7.Materials of the wall lines and back lines of heat and protection equipment
