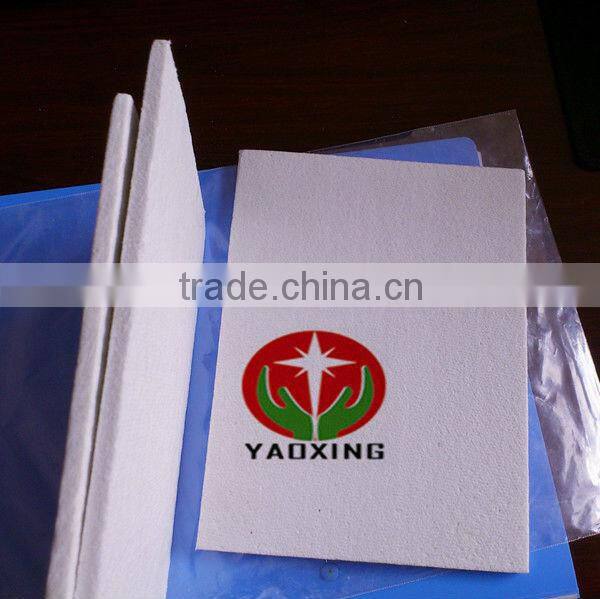

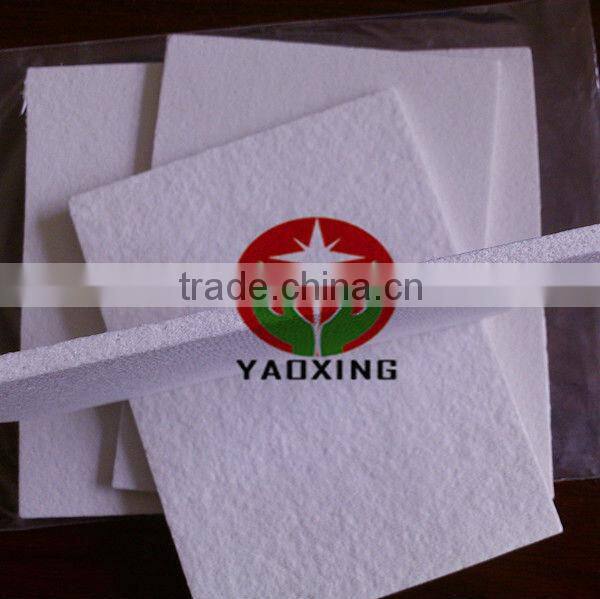

10mm thickness ceramic fiber board
YAO XING boards are high performance insulation products
manufactured from ceramic fiber (or with alumina fiber) and binders,
with YAO XING’s unique shot removing and vacuum forming process,
providing excellent high temperature stability,
extra low thermal conductivity, high compressive strength.
YAO XING boards can be easy to saw, drill and die-cut, used as hot-face or back-up thermal insulation in various high temperature applications in furnaces, kilns etc.
Additional hardness and strength can be reached with post treatments.
Available in variety of compositions, densities, sizes and post treatments combinations,
YAO XING board is one of the most versatile products available to the industry today.
Technical Index
Type | Common | Standard | High Pure | High Aluminum | High Zirconium | |||
Code | YXTX-134 | YXTX-234 | YXTX-334 | YXTX-434 | YXTX-534 | |||
Classification Temperature | 1050 | 1260 | 1260 | 1400 | 1400 | |||
Shrinkage on Heating (%) | 950°C×24h≤-3 | 1000°C×24h≤-3 | 1100°C×24h≤-3 | 1200°C×24h≤-3 | 1350°C×24h≤-3 | |||
Theoretical Thermal Conductivity (W/m·k)(128kg/m3) | (200°Caverage) (400°Caverage) (600°Caverage) | 0.045-0.060 0.085-0.110 0.152-0.20 | 0.052-0.070 0.095-0.120 0.164-0.210 | |||||
Theoretical Density (kg/m3) | 220-320 | 220-400 | 220-450 | 220-500 | 220-500 | |||
Specification (mm) | 1200/1000/900/600×1000/600/400×10/20//30/40/50 According to your requirements | |||||||
Tensile Strength (25mm thick)MPa | 0.5 | |||||||
AL2O3 (%) | ≥44 | ≥45 | ≥45 | 52~55 | 38~40 | |||
ZrO2 (%) | - | 15~17 | ||||||
AL2O3+SiO2 (%) | ≥96 | ≥97 | ≥99 | ≥99 | — | |||
AL2O3+SiO2+ZrO2 (%) | — | — | — | — | ≥99 | |||
Fe2O3 (%) | ≤1.2 | ≤1.0 | ≤0.2 | ≤0.2 | ≤0.2 | |||
K2O+Na2O (%) | ≤0.5 | ≤0.5 | ≤0.2 | ≤0.2 | ≤0.2 | |||

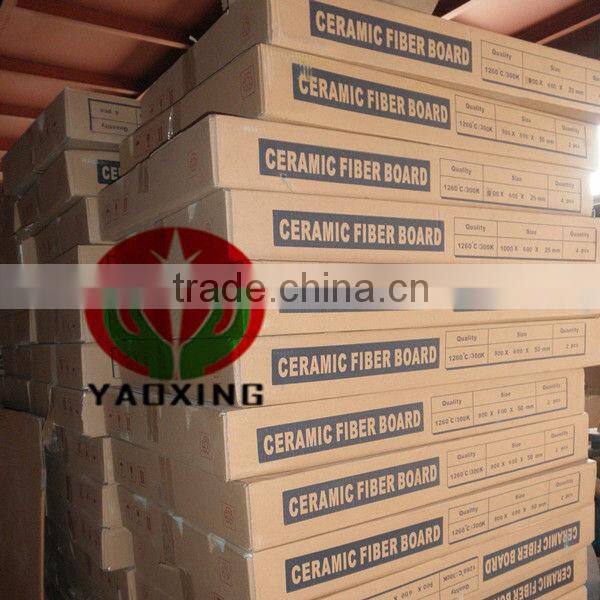

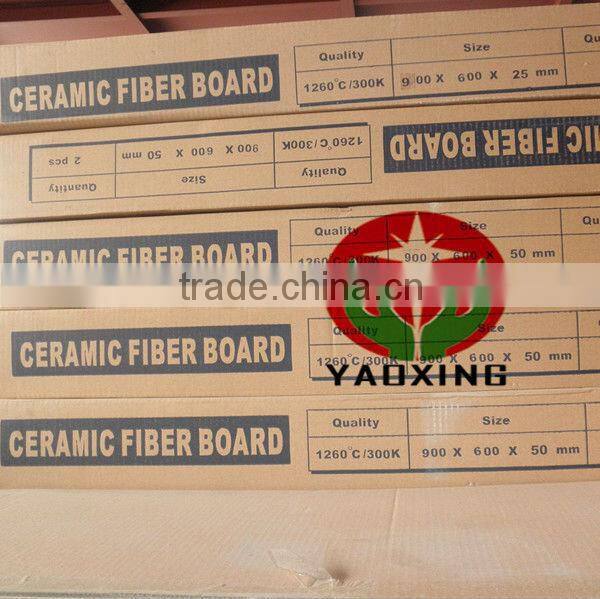

Package | Plastic Bag Inside, Carton Box Outside | |||||||
Quality Control System | ISO9001-2000, ISO14001-1996 | |||||||
Product Series:
l YAOXING 1050 Ceramic Fiber Board YXTX-134
l YAOXING 1260 Ceramic Fiber Board YXTX-234
l YAOXING High Pure Ceramic Fiber Board YXTX-334
l YAOXING High Aluminum Ceramic Fiber Board YXTX-434
l YAOXING High Zirconium Ceramic Fiber Board YXTX-534
Characteristic:
1.Low Heat Storage
2.low thermal conductivity
3.Excellent compressive strength
4.Not fragile materials
5.Excellent flexibility
6.Exact measurement
7.Excellent flatness
8.Homogeneous structure
9.Excellent machine-processed capability
10.Easily fixing specialty
11.Processed continuously,the fibers interweave shapely
12.Excellent stability
13.Excellent chemical stability and thermal shock resistance
