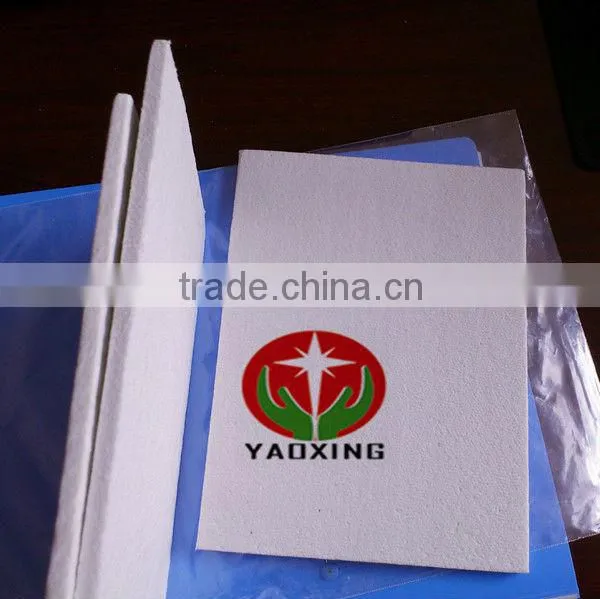

fire board for kiln ceramic fiber board fireproof furnace wall ceramic board
- 1000 Carton / Cartons per Month
- QINGDAO
- Credit Card
Product Details
Thickness: | 10mm | Width: | 400/600/1000mm | ||
Length: | 600/900/1200 | Grade: | HZ (High Zirconium) | Chemical Composition: | AL2O3≥45, AL2O3+SiO2≥97% |
Working Temperature: | 1000℃ | Fiber Diameter: | 3μm | Thermal Conductivity: | 0.060-0.085 |
Shrinkage (1800℉, 3h): | <3% | Place of Origin: | Shandong, China | Model Number: | YXTX-234 |
Brand Name: | YAOXING |
Product Description
Description:
1.YAOXING 1050/1260 Ceramic Fiber Board was processed by the advanced production line,
which was adopted the full automatic control and the continuous- processing method.
2.YAOXING 1050/1260 Ceramic Fiber Board have many typical characteristics,
such as exact measurement,excellent toughness,
excellent heat preservation and can be cut discretionally
3.The processing work is much advanced, which totally avoid the long production cycle
and the low production capacity.
4.YAOXING 1050/1260 Ceramic Fiber Board is divided
in different series by the temperature,
can be widely used as the back lining of industrial furnace
and the hot surface of the low temperature furnace.
It is one of the guarantees of reaching the energy conservation and the high quality.
Characteristic:
1.Low Heat Storage,low thermal conductivity
2.Excellent compressive strength
3.Not fragile materials, excellent flexibility
4.Exact measurement,excellent flatness
5.Homogeneous structure, excellent machine-processed capability
6.Easily fixing specialty
7.Processed continuously,the fibers interweave shapely and excellent stability
8.Excellent chemical stability and thermal shock resistance
Technical Index:
Name | 1050 Ceramic Fiber Board | 1260 Ceramic Fiber Board | High Pure Ceramic Fiber Board |
Code | YXTX-134 | YXTX-234 | YXTX-334 |
Shrinkage on Heating (%) | 950×24h≤-3 | 1000×24h≤-3 | 1100×24h≤-3 |
Theoretical Thermal Conductivity W/(m·k) | 0.060-0.085(200°Caverage) 0.092-0.112(400°Caverage) 0.112-0.126(600°Caverage)
| ||
Compressive Strength ≥(Mpa) | 0.5 | ||
Theoretical Density (kg/m3) | 220-320 | 220-400 | 220-450 |
Moisture Content (%) | ≤1 | ||
Organic Content (%) | ≤8 | ||
Specification (mm) | 1200/1000/900/600×1000/600/400×10/20/30/40/50 According to your requirements | ||
Package | Plastic Bags inside, Carton outside | ||
Quality Control System | ISO9001-2000 ISO14001-1996 |
Name | High Aluminum Ceramic Fiber Board | High Zirconium Ceramic Fiber Board | |
Code | YXTX-434 | YXTX-534 | |
Shrinkage on Heating (%) | 1200×24h≤-3 | 1350×24h≤-3 | |
Theoretical Thermal Conductivity W/(m·k) | (200°Caverage) (400°Caverage) (600°Caverage)
| 0.103 0.125 0.151 | |
Compressive Strength,≥(Mpa) | 0.5 | ||
Theoretical Density (kg/m3) | 220-500 | ||
Moisture Content(%) | ≤1 | ||
Organic Content(%) | ≤8 | ||
Specification (mm) | 1200×1000×10,According to your requirements | ||
Package | Plastic Bags inside, Carton outside | ||
Quality Control System | ISO9001-2000 ISO14001-1996 |
Note:As the special provisions,the package volume
of the Thk12.7mm and Den360~400 Kg/m is 8PCS/Carton
Application:
1.Heat preservation and insulation materials as the back lines for the kilns
in the field of cement building
2.Heat preservation materials as the back lines for the kilns in the field of ceramic
3.Heat preservation materials as the wall lines and back lines for the kilns
in the field of metallurgy and petrochemical industry
4.Heat preservation materials as the wall lines and back lines for the Glass furnace.
5.Refractory and insulating materials for heat treatment equipment
6.The back lines of refractory brick for electrolytic reducing bath in aluminum factory
7.Materials of the wall lines and back lines of heat and pyroreaction equipment
