Technical Index
Name |
High Aluminum Ceramic Fiber Board |
High Zirconium Ceramic Fiber Board |
|
Code |
YXTX-434 |
YXTX-534 |
|
Shrinkage on Heating (%) |
1200×24h≤-3 |
1350×24h≤-3 |
|
|
Theoretical Thermal Conductivity W/(m·k) |
(200°Caverage) (400°Caverage) (600°Caverage)
|
0.103 0.125 0.151 |
|
Compressive Strength,≥(Mpa) |
0.5 |
||
Theoretical Density (kg/m3) |
220-500 |
||
Moisture Content(%) |
≤1 |
||
Organic Content(%) |
≤8 |
||
Specification (mm) |
1200×1000×10,According to your requirements |
||
Package |
Plastic Bags inside, Carton outside |
||
Quality Control System |
ISO9001-2000 ISO14001-1996 |
||

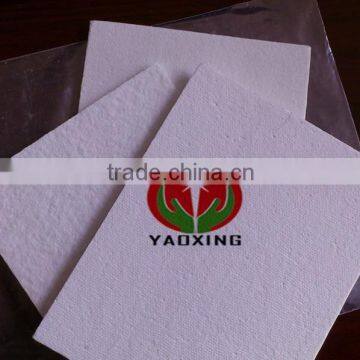

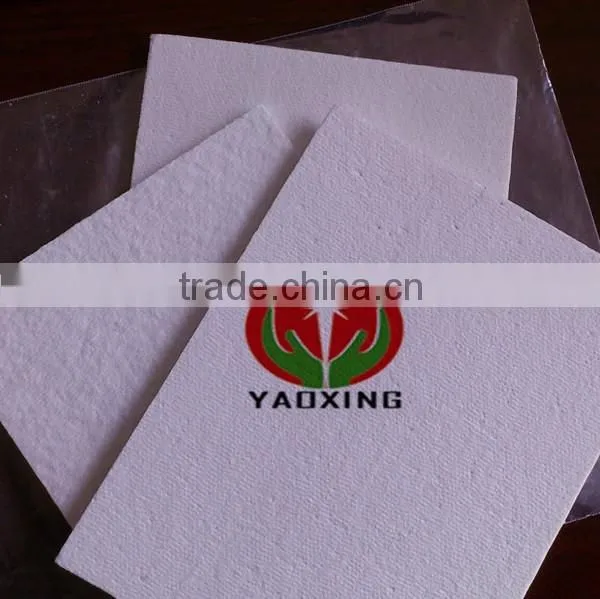

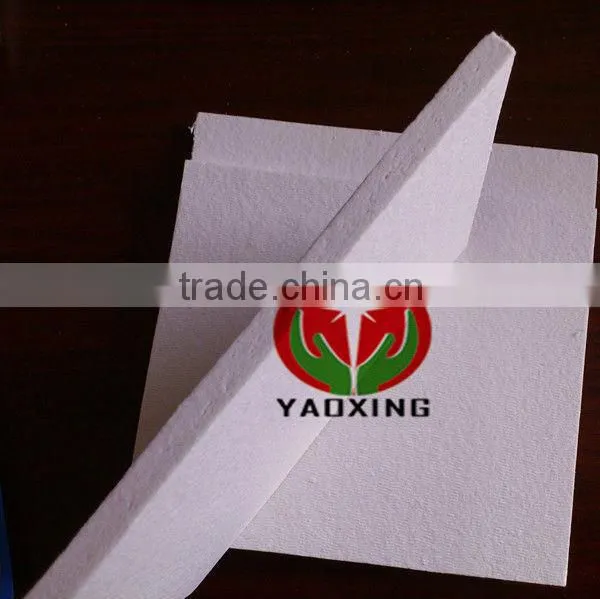

Description:
1.YAOXING 1050/1260 Ceramic Fiber Board was processed by the advanced production line,
which was adopted the full automatic control and the continuous- processing method.
2.YAOXING 1050/1260 Ceramic Fiber Board have many typical characteristics,
such as exact measurement,excellent toughness,
excellent heat preservation and can be cut discretionally
3.The processing work is much advanced, which totally avoid the long production cycle
and the low production capacity.
4.YAOXING 1050/1260 Ceramic Fiber Board is divided in different series by the temperature,
can be widely used as the back lining of industrial furnace
and the hot surface of the low temperature furnace.
It is one of the guarantees of reaching the energy conservation and the high quality.
Characteristic:
1.Low Heat Storage
2.low thermal conductivity
3.Excellent compressive strength
4.Not fragile materials
5.Excellent flexibility
6.Exact measurement
7.Excellent flatness
8.Homogeneous structure
9.Excellent machine-processed capability
10.Easily fixing specialty
11.Processed continuously,the fibers interweave shapely
12.Excellent stability
13.Excellent chemical stability and thermal shock resistance
