CE horizontal cnc metal lathe machine Technical Data
such cnc metal lathe machine has following features:
lAll main components, bed, headstock, saddle, plinth, etc., are high quality solid castings;
l Low friction turcite-B coating on mating surfaces between saddle and guide ways;
l Precision ballscrews and highly rigid precision bearings ensure accurate positioning and heavy cutting capability;
l Centralized system provides forced automatic lubrication onto ballscrews and all mating surfaces;
l Operator adjustable control panel enables convenient tool setting; FANUC, SIEMENS, FAGOR, etc control systems can be supplied. E-handwheel function is also available.
Main motors: two-speed main motor, variable-frequency main motor and servo main motor for your choice.
Item |
CKE6130i |
CKE6136 |
CKE6140 |
CKE6150 cnc lathe |
CKE6156 cnc lathe |
CKE6166 cnc lathe |
CKE6180 |
Max. swing over bed |
300 |
360 |
400 |
500 |
560 |
660 |
800 |
Width of bed |
205 |
300 |
300 |
400 |
400 |
400 |
550 |
Max. length of work piece |
600 |
750/1000 |
750/1000 |
750/1000/1500/2000 |
750/1000/1500/2000 |
750/1000/1500/2000 |
1000/1500/2000/3000 |
Max. swing over slide |
145 |
180 |
200 |
280 |
330 |
430 |
490 |
X travel |
190 |
205 |
225 |
280 |
305 |
305 |
420 |
Z travel |
550 |
620/870 |
620/870 |
680/930/1430/1930 |
680/930/1430/1930 |
680/930/1430/1930 |
785/1235/1835/2735 |
Spindle nose |
A2-5 |
A2-6/D6 |
A2-6/D6 |
D8 |
D8 |
D8 |
C11 |
Chuck size |
165 |
200 |
200 |
250 |
250 |
315 |
400 |
Taper of spindle bore |
M5 |
M6 |
M6 |
1:20 |
1:20 |
1:20 |
1:20 |
Spindle bore |
40 |
52 |
52 |
82 |
82 |
82 |
100 |
Steps of spindle speed |
step less |
2-step actuator |
2-step actuator |
3-step actuator |
3-step actuator |
3-step actuator |
4-step actuator |
Frequency conversion motor power |
4.0 |
5.5 |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
Rapid traverse X/Z |
4/5 |
4/5 |
4/5 |
6/10 |
6/10 |
4/8 |
4/8 |
Repeatability of tool post |
0.008 |
0.008 |
0.008 |
0.008 |
0.008 |
0.008 |
0.008 |
Vertical 4-position Tool post changing time |
2.1 |
2.4 |
2.4 |
2.4 |
2.4 |
2.4 |
2.9 |

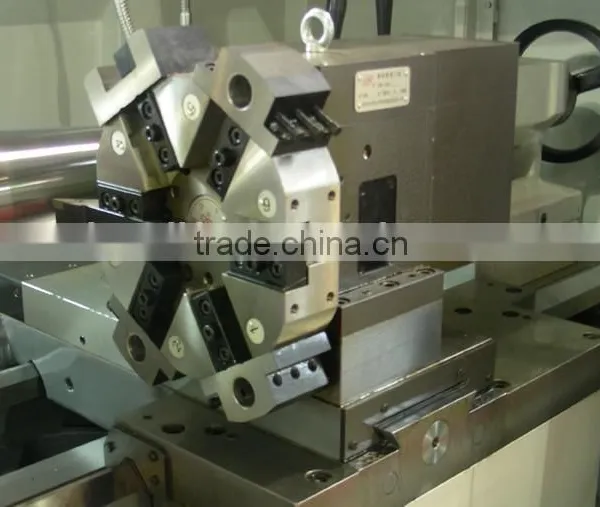

Horizontal 6-position Tool post changing time |
|
3.0 |
3.0 |
3.0 |
3.0 |
3.0 |
1.1 8-position |
Diameter of tailstock quill |
42 |
63 |
63 |
75 |
75 |
75 |
100 |
Travel of tailstock quill |
110 |
130 |
130 |
150 |
150 |
150 |
240 |
Taper of tailstock quill |
M3 |
M4 |
M4 |
M5 |
M5 |
M5 |
M6 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~90days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
