Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CE CNC Flat Bed Lathe Hot-sale CKE6150

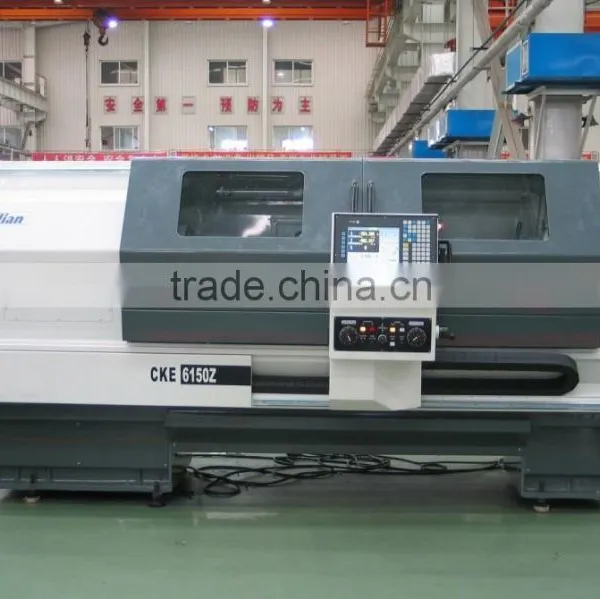

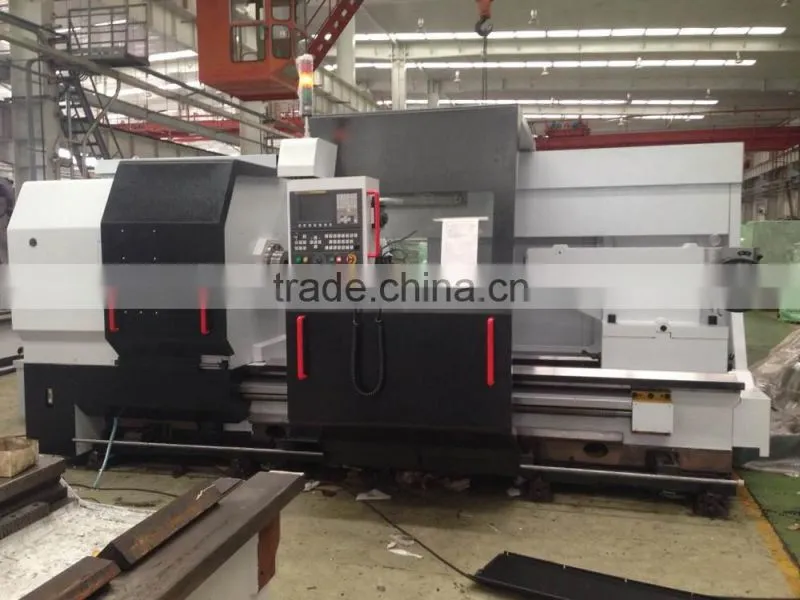

CE CNC Flat Bed Lathe Hot-sale CKE6150

Name: CE CNC Flat Bed Lathe Hot-sale CKE6150
Brand: DALIAN
SKU: 102713883
Availability: InStock

CE CNC Flat Bed Lathe Hot-sale CKE6150 thumbnail-1

CE CNC Flat Bed Lathe Hot-sale CKE6150 photo-1

US$ 9,717 - 109,394 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 800mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CKE6156Z CKE6163Z CKE6166Z CKE6180Z

Voltage 220V 380V 400V 415V 440V 480V

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

CNC Flat-bed Lathe Technical Specifications

Main Features:

1. With CE Certificate;

2. Kinds of CNC Controllers for your choice: FANUC, SIEMENS, FARGO, GSK, etc.

3. With full splash-cover

4. Main motors: two-speed, variable-frequence, servo main motors, for your choice;

Item	CKE6130i	CKE6136Z	CKE6140Z	CKE6150Z	CKE6156Z	CKE6166Z	CKE6180Z
Max. swing over bed	300	360	400	500	560	660	800
Width of bed	205	300	300	400	400	400	550
Max. length of work piece	600	750/1000	750/1000	750/1000/1500/2000	750/1000/1500/2000	750/1000/1500/2000	1000/1500/2000/3000
Max. swing over slide	145	180	200	280	330	430	490
X travel	190	205	225	280	305	305	420
Z travel	550	620/870	620/870	680/930/1430/1930	680/930/1430/1930	680/930/1430/1930	785/1235/1835/2735
Spindle nose	A2-5	A2-6/D6	A2-6/D6	D8	D8	D8	C11
Chuck size	165	200	200	250	250	315	400
Taper of spindle bore	M5	M6	M6	1:20	1:20	1:20	1:20
Spindle bore	40	52	52	82	82	82	100
Steps of spindle speed	step less	2-step actuator	2-step actuator	3-step actuator	3-step actuator	3-step actuator	4-step actuator
Frequency conversion motor power	4.0	5.5	5.5	7.5	7.5	7.5	11
Rapid traverse X/Z	4/5	4/5	4/5	6/10	6/10	4/8	4/8
Repeatability of tool post	0.008	0.008	0.008	0.008	0.008	0.008	0.008
Vertical 4-position Tool post changing time	2.1	2.4	2.4	2.4	2.4	2.4	2.9
Horizontal 6-position Tool post changing time		3.0	3.0	3.0	3.0	3.0	1.1 8-position
Diameter of tailstock quill	42	63	63	75	75	75	100
Travel of tailstock quill	110	130	130	150	150	150	240
Taper of tailstock quill	M3	M4	M4	M5	M5	M5	M6
Net weigh	1000	1800/1950	1800/1950	2550/2600/2700/2800	2600/2650/2750/2850	2700/2750/2850/2950	5200/5300/5800/6100
Overall dimensions	1790×1520×1450	2300×1480×1520 2350×1480×1520	2300×1480×1520 2550×1480×1520	2580×1750×1620 2830×1750×1620 3330×1750×1620 3830×1750×1620	2580×1750×1620 2830×1750×1620 3330×1750×1620 3830×1750×1620	2580×1750×1700 2830×1750×1700 3330×1750×1700 3830×1750×1700	3455×2000×1800 4010×2000×1800 4510×2000×1800 5410×2000×1800
