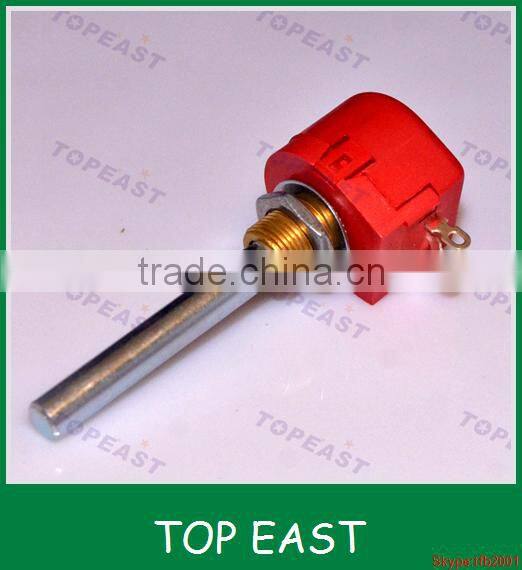

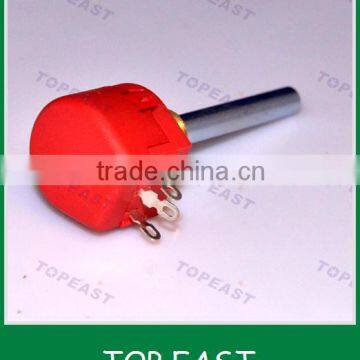

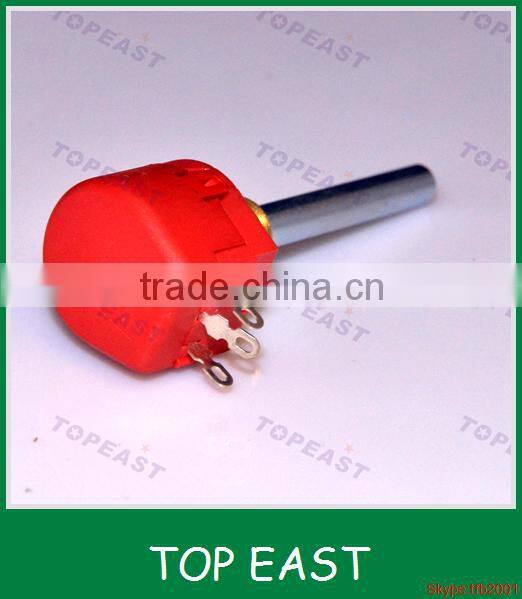

Help CenterRED Colr Carbon Film 100k Rotary Wirewound Long Shaft Potentiometer
Related Products
-
RED Color 500k Rotary Wirewound 1w Single-turn Carbon 200v PotentiometerUS$ 0.5 - 0.98MOQ: 1000 Pieces -
RED Color 40mm Long Shaft Carbon Wirewound b 500k Rotary PotentiometerUS$ 0.5 - 0.98MOQ: 1000 Pieces
-
Electrical Distribution Box Size 6,8,12,16,24,36way for HouseUS$ 1.5 - 8MOQ: 1000 Pieces
-
Emergency Portable MINI Vehicle JumpstarterUS$ 6.4 - 9MOQ: 1000 Pieces
-
Multi-function Car Seat/ Air Cushion Bed(in Beach)US$ 22 - 30MOQ: 500 Pieces
|
Model
|
WX118 |
|
Standard Resist. Range
|
100Ω~22kΩ |
|
Power Ratings
|
1W/40°C |
|
Maximum Working Voltage
|
200V |
|
Maximum Wiper Current
|
100mA |
|
Operating Temp. Range
|
-55°C~+125°C |
|
Resistance Tolerance
|
±10% |
Effective Electrical Travel |
mech.285°±5° elektr.265°±5° |
|
End Resistance
|
2Ωmax |
|
Dielectric Strength (Room Conditions)
|
1000V AC |
|
Insulation Resistance
|
1000MΩmin.(at 500V DC) |
|
Shaft Torque
|
3.5~100mN.m |
|
Rotational Life
|
5000cycles without discontinuity |
|
Temperature Coefficient
|
±100ppm/°C |
Function of potentiometer:
A potentiometer is a manually adjustable electrical resistor that uses three terminals. It is a simple electromechanical transducer. It converts rotary or linear motion from the operator into a change of resistance, and this change is used to control the levels of output. It is sometimes known as POTS.Potentiometer is an adjustable electronic components,which plays main roles in the circuit on the following several aspects :
Ø As a voltage divider:Potentiometer is a continuously adjustable resistor. When potetiometer’s stem or sliding handle move on the resistor body, the output of the potentiometer can be obtained output of voltage with certain related to the potentiometer applied voltage and movable arm or travel .
Ø As a variable resistor :When potentiometer is used as a rheostat, it should be taken into two end devices.Thus within the limited travel range of potentiometer,which can be gotten smooth, continuously changable resistance value.
Ø As the current controller :Potentiometer is used as the current controller, one of the designate current output must be sliding contact terminal.
Ø Application of potentiometers :
u Linear displacement measurement
u Rotary displacement measurement
u Volume control
u Brightness control
u Liquid level measurements using floats
