Home > Products > Power Tube > Original Power Grid Tube 7T85RB
Original Power Grid Tube 7T85RB
- 1000 Piece / Pieces per Month
- Ningbo
- Credit Card
Product Details
Place of Origin: | Japan | Brand Name: | TOSHIBA | Model Number: | 7T85RB |
Product Description

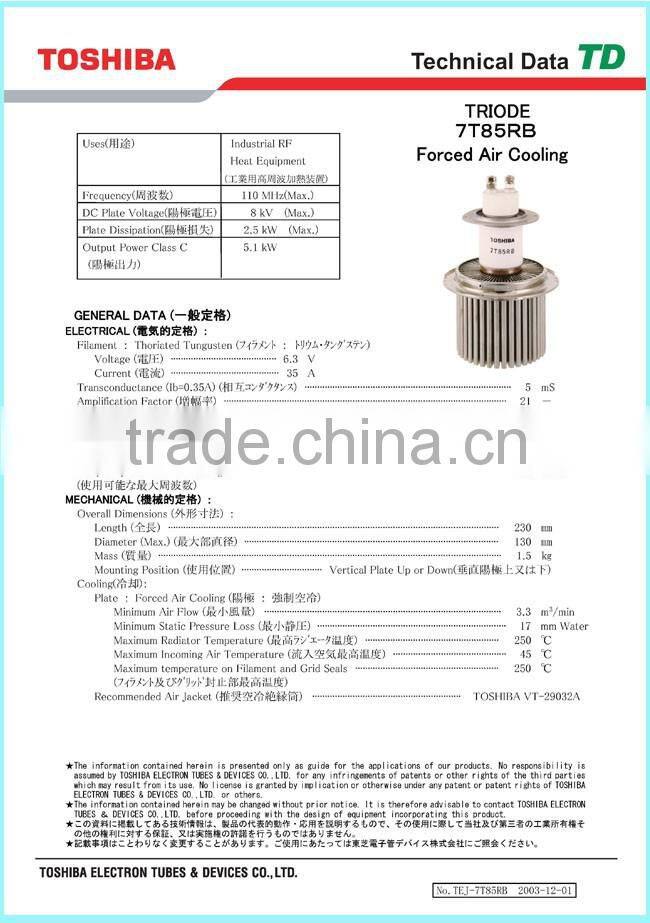

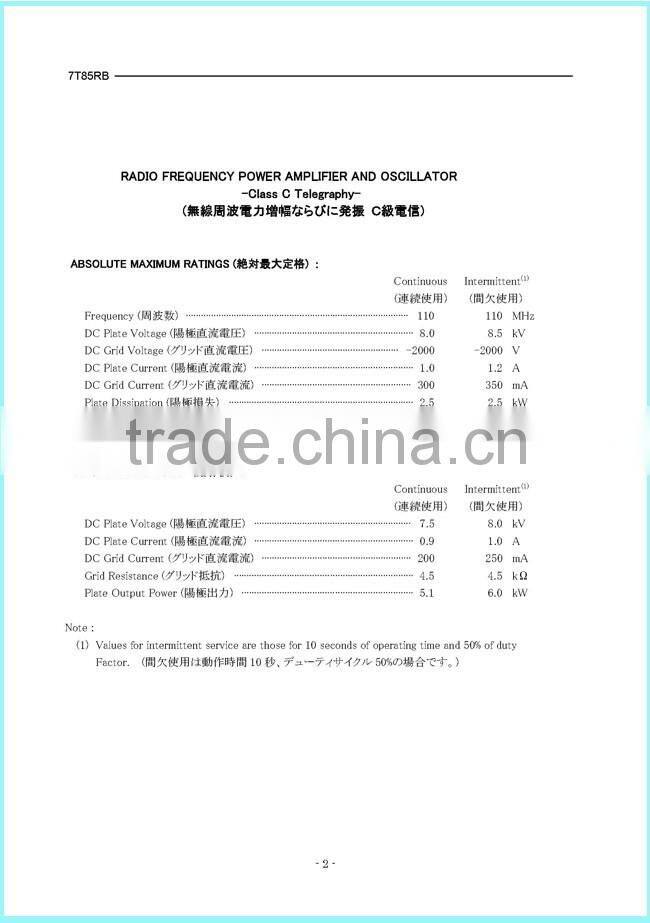

Specifications
2.Used in Industrial RF Heat Equipment
3.Forced Air Cooling
4.Maximum anode dissipation is 2.5KW
Product Name: Original Power Grid Tube 7T85RB
Description:
P/N: | 7T85RB |
Filament Voltage | 6.3V |
Filament Current | 35A |
Anode dissipation power | 2.5KW |
Maximum operating frequency | 110MHz |
Cooling method | Forced Air Cooling |
Advantage:
1.Low MOQ: It can meet your testing purpose very well.
2.Custom Design Accepted : We can produce as your design .
3.Good Service : We treat clients as friend.
4.Good Quality :We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
High Quality,Good Price,Fast Delivery,Please send us your RFQ!
