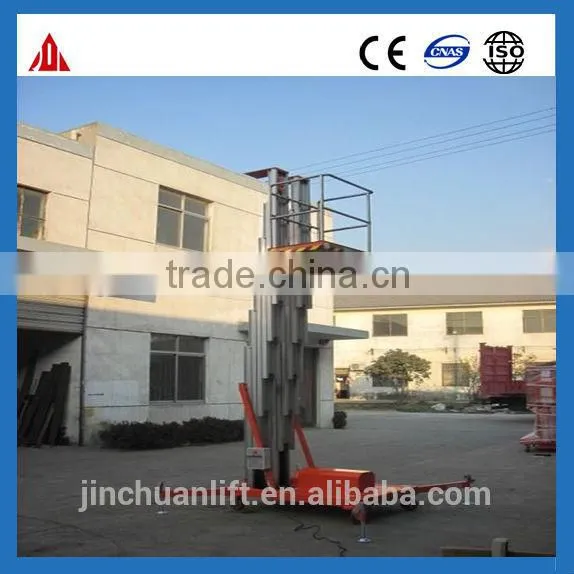

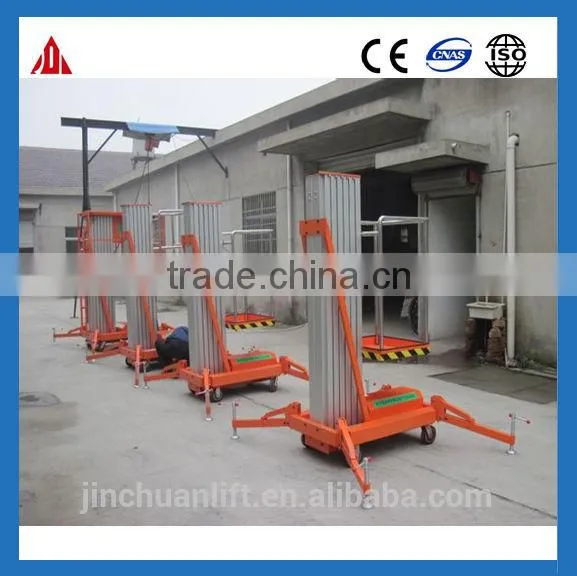

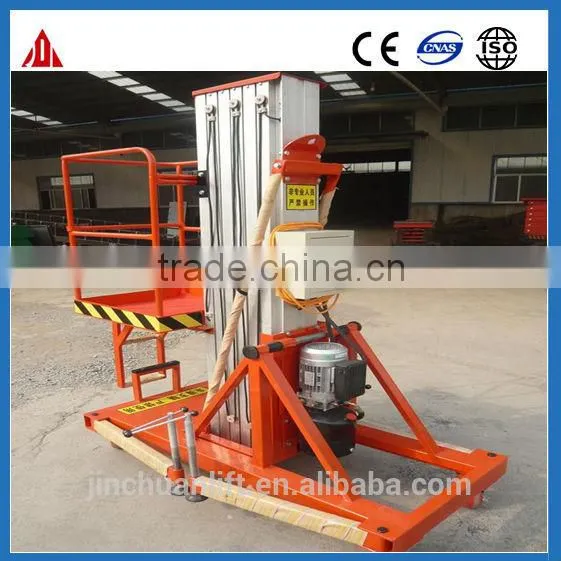

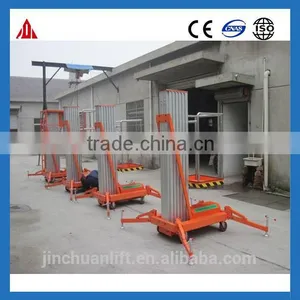

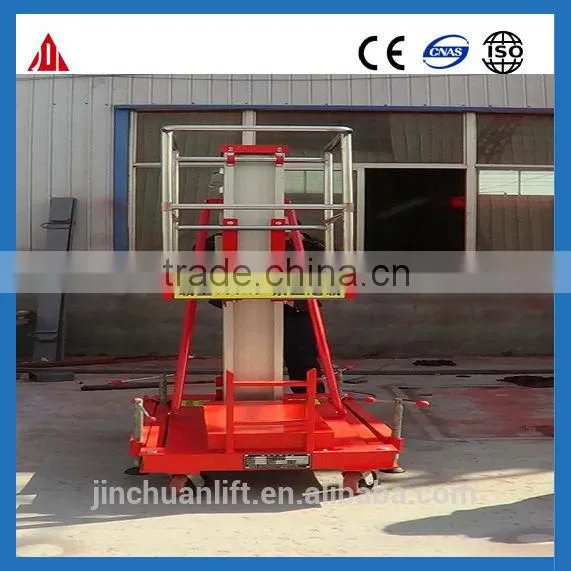

mobie electric aluminum alloy personal lift equipment
- 150 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
12m portable hydraulic aluminum man electric telescopic lift
-
hydraulic guiderail cargo/goods/car lift platform
-
aluminium platforms for aerial work
-
hydraulic double mast aluminum alloy aerial work lift platform for sale
-
hot sale aerial working double mast aluminum alloy lift platform
-
hydraulic single mast aluminum alloy aerial working lift platform
Product Details
Place of Origin | Shandong, China | Brand Name | jinchuan | |
Model Number | SJYL0.1-10 | Lift Mechanism | Telescoping Lift | |
Lift Drive / Actuation | Hydraulic | Power | 0.75/1.1kw | |
Rated Loading Capacity | 100kg | Min. Lifting Height | 900mm | |
Max. Lifting Height | 10000mm | Table Size | 550*550mm | |
Overall Dimensions | 1500*870*2300mm | Weight | 480kg | |
Certification | CE&ISO | Warranty | 12months |
Product Description
Specifications
1.used in narrow spacesmobile convenient2.easy to work
3.hydraulic system
4.safety&steady ascending
Applications

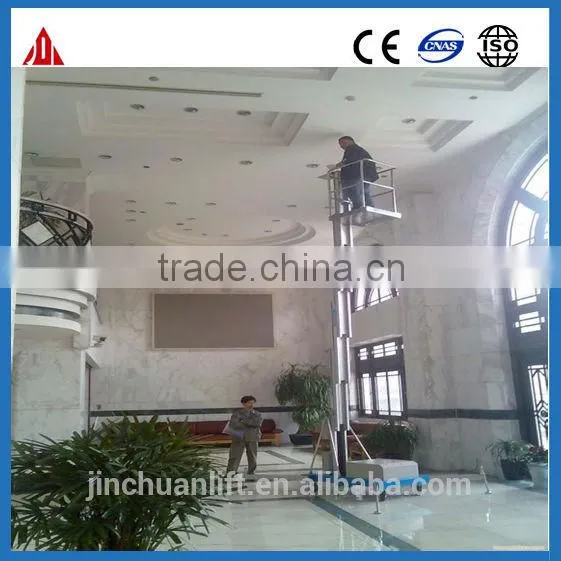

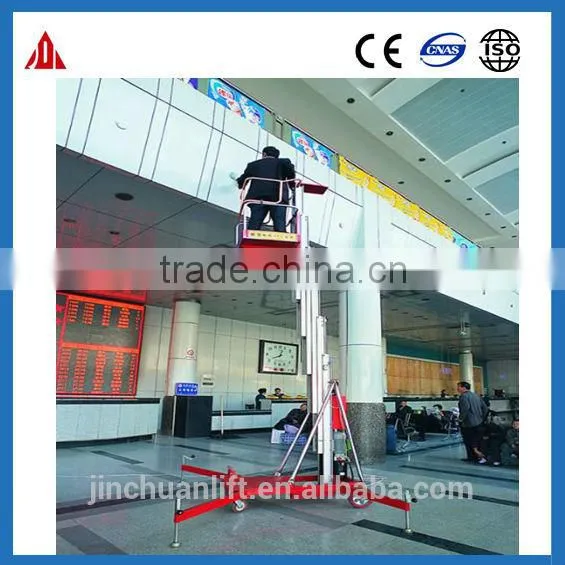

Personal lifting equipment is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations,Exhibition hall and shopping malls.
Details
(1) personal lifting equipment is a new-era product through brand-new design, adopts new aluminum molding material.
(2)The lift table has tiny swing, because of high-strength molding material.
(3)Handy and light appearance makes it freely exert maximum lifting ability in limited room.
(4)This product makes it easy to carry out high-altitude working by one person.
Major feature
(1)Single Aluminum alloy mast Lifts are made up of high grade aluminum profile and equiped with the universal wheels.
(2)Easily pushed around to the designated sites.
(3)Beautiful structure,compact mainbody,light weighted,safe and reliable.
(4)The control panels are available on the lift platforms and ground.
(5)Single Aluminum alloy mast Lifts is a good helper for the equipment maitenance,paint decoration.
(6)Easily go through the regular doors and elevators,of low energy consumption, no pollution, do no damage to the grounds.
(7)The power sources could be 220V,380V,415V or chargeable battery.
(8)You can control the lift up and down both on the platform and the ground, just need press stop button, it can stop at any point if you want.
Service
We also supply spare parts free and supply technical supporting all the time.(Spare parts:Emergency buttons, control button, travel switch, Oil cylinder seals and the wrench etc.)
Power source
Local power is available at the working sites (220V,380V) , they also can be equipped with battery to meet the need where the electricity is not available.
Use
1) Before using the aluminum lift platform, we must read the manual in order to understand and master the using program of aluminum lift platform.
2) The operator should be real familiar with safe operating procedures to master.

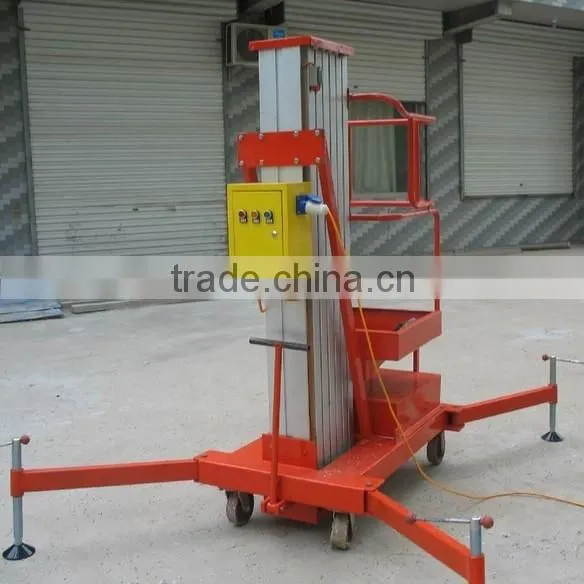

3)Expand (insert) legs. To ensure safety and prevent accidents, the machine is equipped with four legs, all legs should be opened before using, (Using the plug legs, the legs were inserted into the casing of the site not less than 200MM). Rotate the handle screw in the end of the four legs so tightly around the legs to support.
4,)We should adjust the four screw to support to support feet firmly on the ground, adjust the level of the horizontal instrument.
Specifications
The following is only a reference. We can design and make products according to the buyer's requirement.!

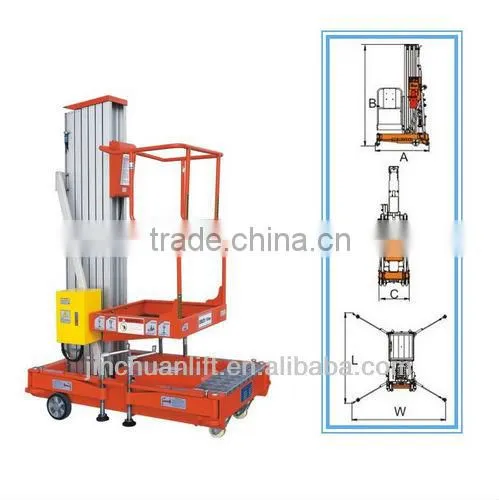

Item | SJYL0.1-6 | SJYL0.1-8 | SJYL0.1-10 | |
Capacity(kgs) | 100 | |||
Min.Lifting height(m) | 1.98 | 1.98 | 2.3 | |
Max.Lifting height(m) | 6 | 8 | 10 | |
Working Height(m) | 7.5 | 9.5 | 11.5 | |
Platform size(m) | 0.55*0.55 | 0.55*0.55 | 0.55*0.55 | |
Overall dimension(m) | 1.26*0.8*1.98 | 1.4*0.85*1.98 | 1.5*0.87*2.3 | |
Net weight(kg) | 380 | 450 | 480 | |
Power | Current | AC | ||
Voltage | 220 | |||
Kilowatt | 0.75/1.1 | |||
Phase | 2 | |||
Main material | High strength aluminum alloy | |||
Frame materail | High strength steel | |||
Oil cylinder | Accurate grinding hydraulic oil cylinder | |||
Power supply | Italian joint venture pumping station | |||
Control mode | Using control pane and control box,all ok! |
