Help CenterHydraulic Guiderail Cargo/goods/car Lift Platform
Related Products
-
Aluminium Platforms for Aerial WorkUS$ 500 - 2,500MOQ: 1 Set -
Hydraulic Double Mast Aluminum Alloy Aerial Work Lift Platform for SaleUS$ 4,000 - 6,000MOQ: 1 Set
-
Hot Sale Aerial Working Double Mast Aluminum Alloy Lift PlatformUS$ 1,500 - 5,000MOQ: 1 Set
-
Hydraulic Single Mast Aluminum Alloy Aerial Working Lift PlatformUS$ 1,500 - 4,000MOQ: 1 Set
-
Hydraulic Double Mast Aluminum Alloy Lift MachineUS$ 4,000 - 5,000MOQ: 1 Set
Specifications
1. Load: 2 tons2. Lifting height: 4.2m
3. Platform size:1200mm*1200mm
4. ISO

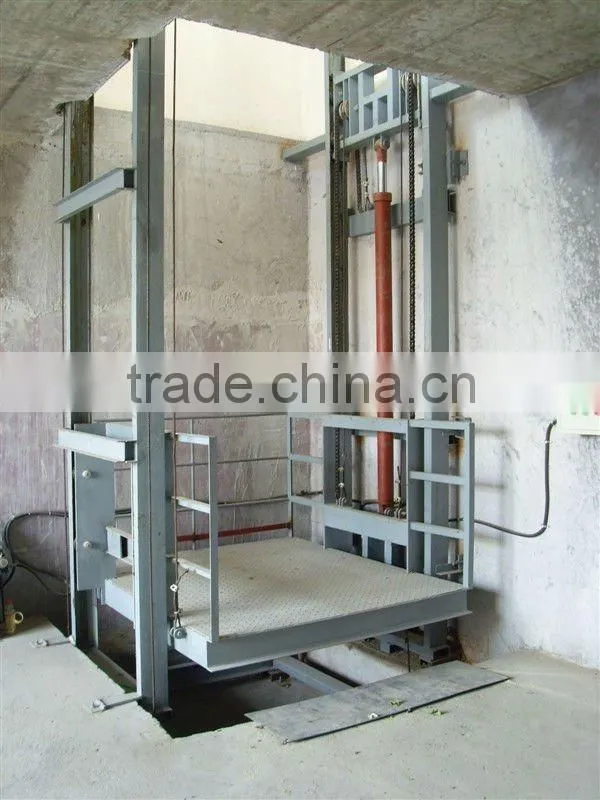

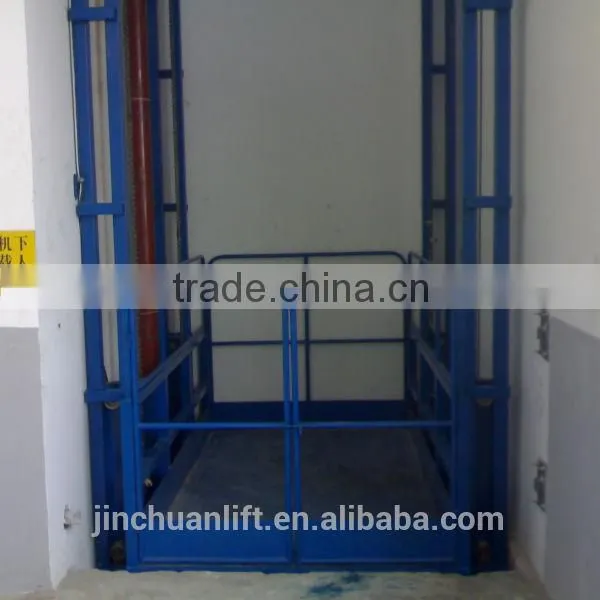

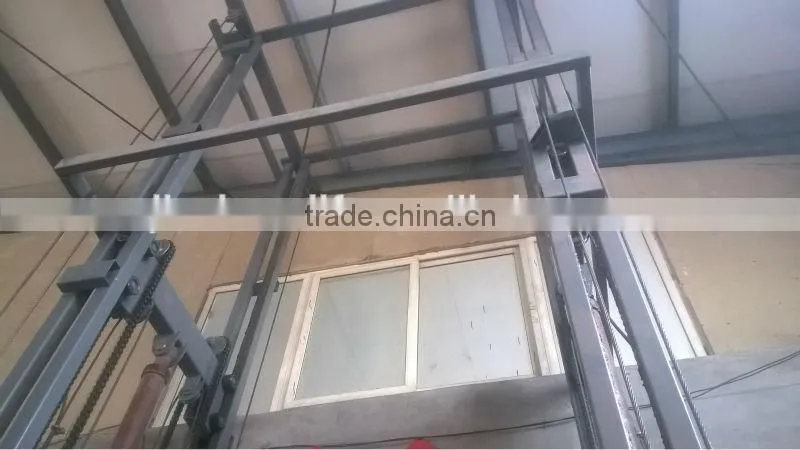

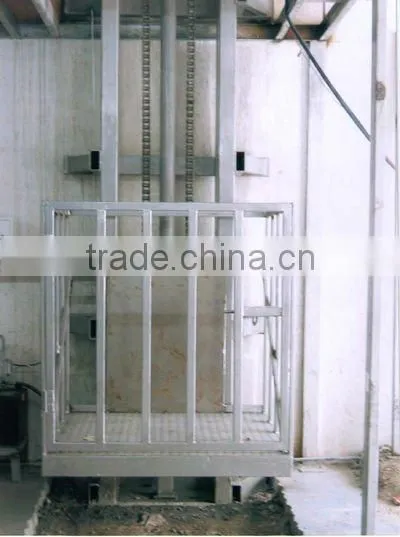

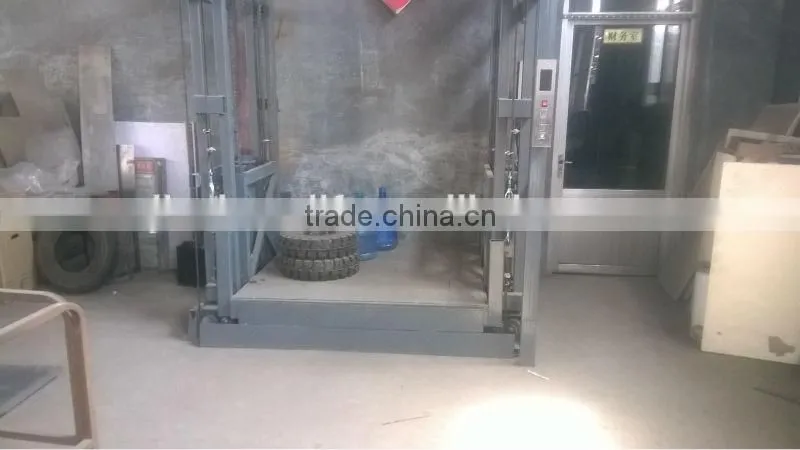

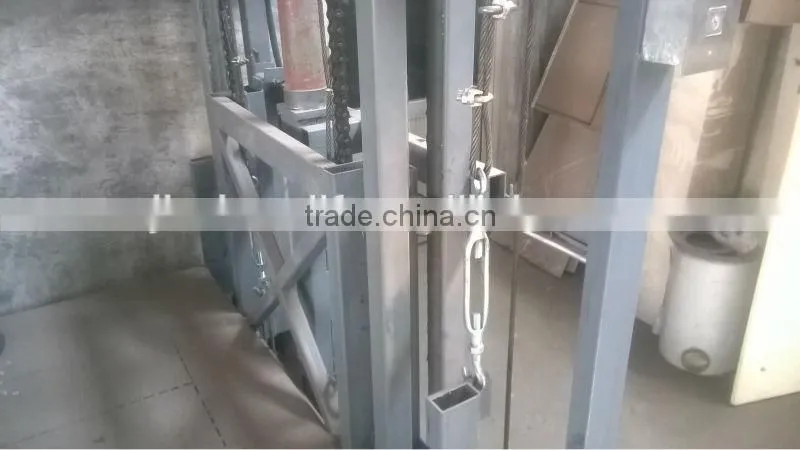

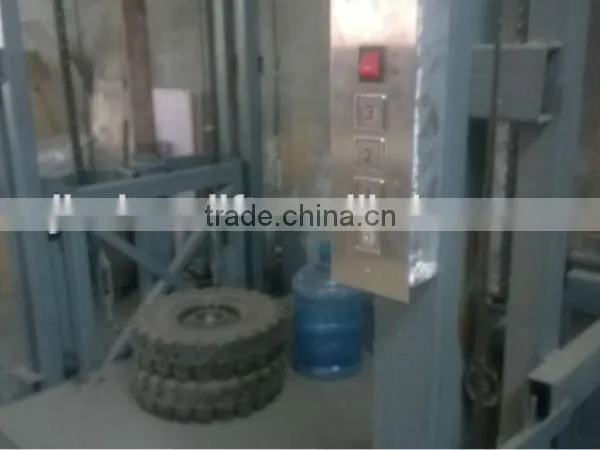

fixed guide rail lift platform
1. Introduction
Stationary lead rail lift provides fast, efficient, convenient and safe access to mezzanines, balconies, basements, and any levels in multistoried building. It can be installed indoor and outdoor applications.
2. Model list
Model |
Load |
Platform size |
Lifting height |
Pit depth |
Dimension |
LRL 3-2.4 |
3T |
2.0*2.0M |
2.4M |
300 MM |
2.0*2.0*0.63M |
LRL 2-5 |
2T |
2.1*1.2M |
5.0M |
200 MM |
2.1*1.2*0.87M |
LRL 1-4.5 |
1T |
2.1*1.5M |
4.5M |
200 MM |
2.1*1.5*0.80M |
LRL 5-6.5 |
5T |
2.2*1.6M |
6.5M |
300 MM |
2.2*1.6*1.28M |
LRL 3-6.5 |
3T |
2.2*1.9M |
6.5M |
300 MM |
2.2*1.9*1.52M |
Any custom-made specification is accepted; just let us know your requirement.
3. Safety control
1. Hydraulic elevators not only have all safety device of the traditional elevator, but also have the special safety system hereinafter.
2. Spillover valve, it can prevent high pressure when the machine moves up.
3. Manual emergency valve, it can go down to the nearest floor and open the door when you meet an emergency.
4. Manual pump: it can move up the nearest floor and open the door when you meet an emergency.
5. Pipe fracture valve, when the hydraulic system pipe fracture, it can cut down the channel of the oil to stop the falling.
6. Temperature protection, when the temperature of the hydraulic oil is substandard, the machine will stop working until the temperature reverts to the safe standard.

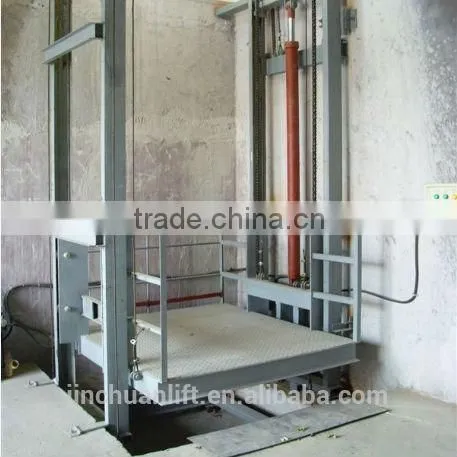

4. Four-post lead rail lift
5.Certifications
