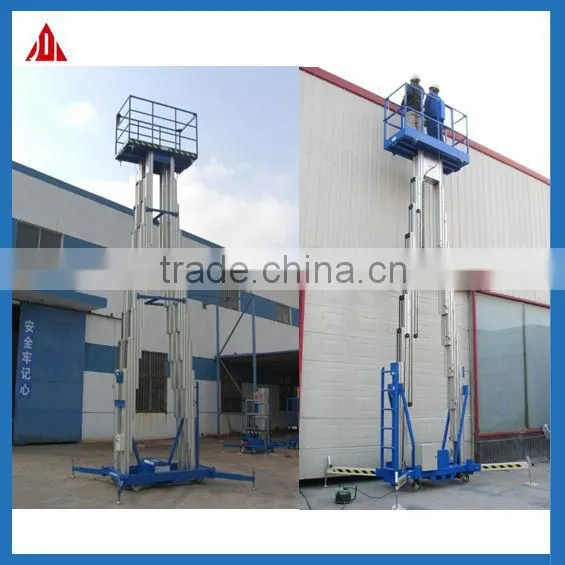

Help CenterMobile Telescopic Electric Boom Lift / Aluminum Alloy Aerial Work Platform
Related Products
-
11 Meter Telescopic Lift, Articulated Lift, Lift TableUS$ 2,200 - 2,600MOQ: 1 Set -
Hydraulic Aluminum Alloy Single Mast Single Person Telescopic LiftUS$ 1,800 - 2,500MOQ: 1 Set
-
Single Man Lift/Aluminum Alloy Electric Man Lift/Hydraulic Man Lift/6m Hydraulic Single Mast Aluminum One Man LiftUS$ 1,800 - 2,300MOQ: 1 Set
-
Hydraulic Movable Telescopic Aluminum Lift Platform/lifting EquipmentUS$ 5 - 5,000MOQ: 1 Set
-
Hydraulic One Man Lift/electrick Lift Work Platform/hydraulic Vertical Platform LiftUS$ 1,500 - 3,900MOQ: 1 Set
Specifications
1.Lifting height:8m2.Capacity:200kg
3.Platform size:1.4*0.6m
| Model | Lifting height | Capacity | Platform size | Overall dimension | Power supply | Net weight |
| SJYL0.2-6 | 6m | 200kg | 1.3*0.6m | 1.35*0.85*1.98m | AC220v,1.5kw,2ph | 600 |
| SJYL0.2-8 | 8m | 200kg | 1.4*0.6m | 1.45*0.85*1.98m | AC220v,1.5kw,2ph | 700 |
| SJYL0.2-10 | 10m | 200kg | 1.45*0.6m | 1.55*0.87*198m | AC220v,1.5kw,2ph | 760 |
| SJYL0.2-12 | 12m | 200kg | 1.55*0.6m | 1.80*0.90*1.98m | AC220v,1.5kw,2ph | 800 |
| SJYL0.2-14 | 14m | 200kg | 1.55*0.6m | 1.85*0.90*2.3m | AC220v,1.5kw,2ph | 860 |
|
Features 1)Adopting high strength aluminum molding material keeps deflecting degree and swing tiny. 2)Equipped with overload safety protection device 3) Equipped with safeguard valve to avoid hydraulic pipe rupture 4)It installs the emergency manual hydraulic valve to cope with power cut. 5)It also can add stretch platform to extend to the desired place when the platform length isn’t enough. 6)Double chains greatly improve the safety factor. 7)Adopt emergency stop button multiple safety protection measures. 8)The translatable supporting legs can ensure working dead zone minimization . 9)Tailor-made guide wheel device equipped on the mast makes lifting smooth and stable.
| ||||||
|
Applications They are widely used in factories, Star Hotels, restaurants, railway stations, airports theaters , exhibition halls and other places, It's the best security partner together with maintenance of equipment, paint renovation, replacement lamps, electrical appliances, cleaning and maintenance and other uses. | ||||||
|
Power
1)Depending on the local power sources.
2)The power sources can be 110V 220V 380V AC power, DC power
| ||||||
| ||||||
| ||||||
| ||||||
