Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > Hydraulic Aluminum Alloy Single Mast Single Person Telescopic Lift

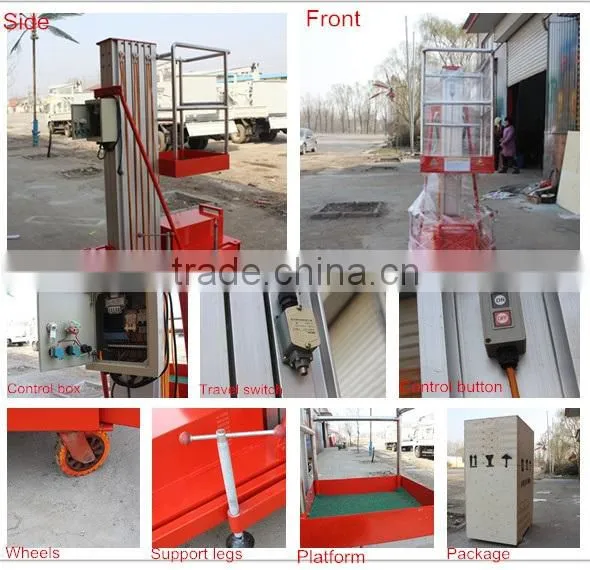

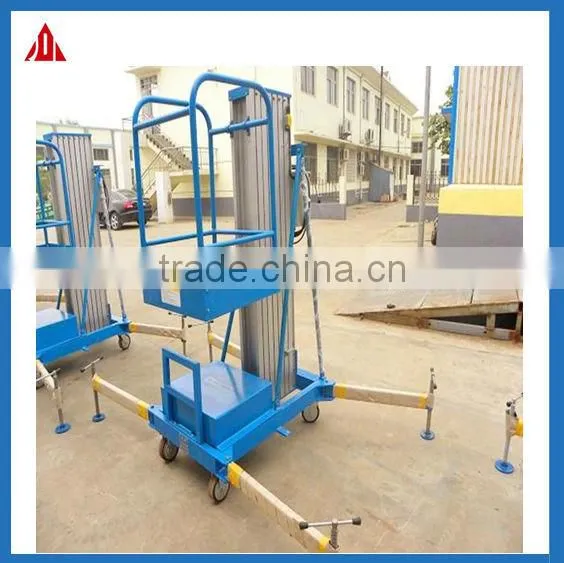

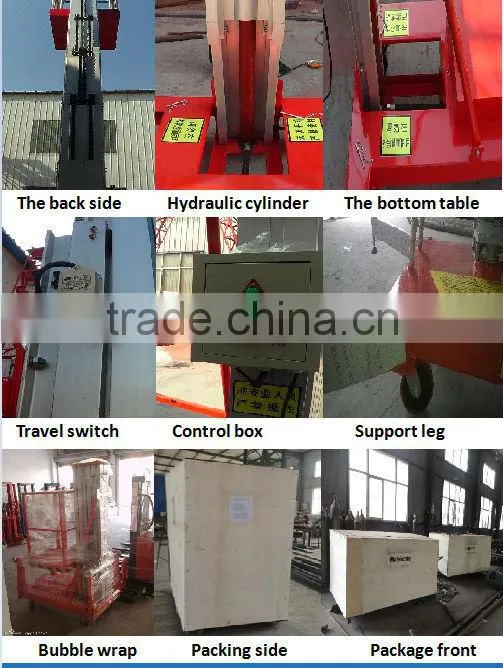

Hydraulic Aluminum Alloy Single Mast Single Person Telescopic Lift

Name: Hydraulic Aluminum Alloy Single Mast Single Person Telescopic Lift
Brand: jinchuan
SKU: 102711015
Availability: InStock

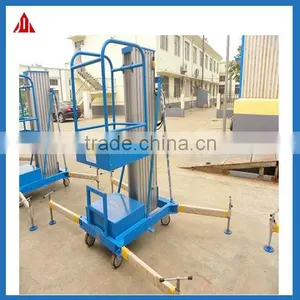

Hydraulic Aluminum Alloy Single Mast Single Person Telescopic Lift thumbnail-1

Hydraulic Aluminum Alloy Single Mast Single Person Telescopic Lift photo-1

US$ 1,800 - 2,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

jinchuan

Model Number:

SJYL0.1-8

Contact Supplier Request Quote Chat Now

Jinan Jinchuan Hydraulic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name jinchuan

Model Number SJYL0.1-8

Lift Mechanism Telescoping Lift

Lift Drive / Actuation Hydraulic

Power 0.75/1.1kw

Rated Loading Capacity 100kg

Min. Lifting Height 0.9m

Max. Lifting Height 8m

Table Size 0.55*0.55m

Overall Dimensions 1.4*0.85*1.98m

Weight 450kg

Certification ISO9001

Warranty 12months

Specifications

1.Lifting height:8m
2.Capacity:100kg
3.Platform size:0.55*0.55m
4.Overall dimension:1.8*0.85*1.98m
5.Custom-made service yes

Item	Lifting height	Working height	Capacity	Platform size	Bottom shelf size	Overall dimension	Power supply			Net weight	Brand
Model	m	m	kg	m	m	m	V(AV	Kw	Ph	kg	Jinchuan
SJYL0.1-6	0.9-6	7.5m	100	0.55*0.55	1.26*0.8	1.260.81.98	220	0.75/1.1	2	380	Owner
SJYL0.1-8	0.9-8	9.5m	100	0.55*0.55	1.4*0.85	1.40.851.98	220	0.75/1.1	2	450	Owner
SJYL0.1-10	0.9-10	11.5m	100	0.55*0.55	1.5*0.87	1.50.872.3	220	0.75/1.1	2	480	Owner
The Bottom shelf size is based on the situation that the support legs is closed.There are four support legs and each is 0.9m.The legs can be opened or closed .

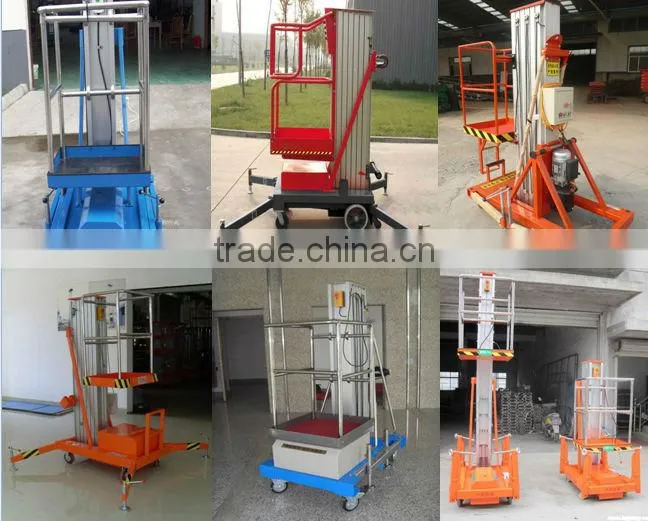

Intoduction and application:Single-mast aluminum alloy lifts are classified into four kinds on different lifting height: 6m, 8m, 10m etc. This model of lift are mainly made of high-duty aluminum alloy structure, so the total dimension of machine is very small and low weight and operated easily and conveniently. With these characters, single-mast aluminum alloy lift can be carried into narrow spaces passing through doors, stairs, and elevators. Aluminum alloy lift are suit for hotels, banks, big halls, supermarkets, airport waiting rooms, and railway station waiting rooms etc.
About us:Our company is professional in making scissor lift, such as mobile scissor lift ,stationary scissor lift,fixed/stationary dock ramp,mobile dock ramp,aluminum lift,lift stage,revolve stage etc. According to users requirements, we can design single fork or multiple fork lift stages and explosion-proof electrical lift stages as well as other abnormal lift stages in different sizes and tonnage, and several unconventionality model.
