2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode

2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode thumbnail-1
2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode thumbnail-2
2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode photo-1

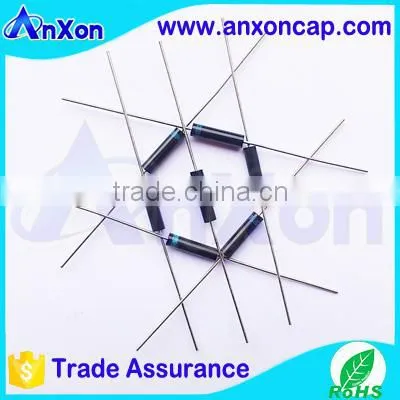

2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode photo-2
US$ 0.1 - 100 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HVCA
Model Number:
2CL75
Contact Supplier Request Quote Chat Now
Cixi AnXon Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HVCA
Model Number 2CL75
Type Rectifier Diode
Package Type Through Hole
Max. Forward Voltage 43V
Max. Reverse Voltage 16KV
Max. Forward Current 5mA
Max. Reverse Current 2uA/5uA
Product Description

1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate



Product Name: 2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode

P/N:

2CL75

Repetitive Peak Reverse Voltage (VRRM)

16KV

Average Forward Current (IF(AV))

5mA

Maximum Surge Current (IFSM)

0.5A

Peak Forward Voltage (VFM)

43V

Peak reverse current (IRRM1)

2uA

Peak reverse current (IRRM2)

5uA

Maximum Reverse Recovery Time (Trr)

100nS

Dimension

 D3xL12mm

Operating Temperature

-40~+100℃

2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode

2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode

2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode



Photos

2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode

Application

2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode

Packaging & Shipping

 2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode



2CL75 16KV 16000V 5mA High Voltage Fast Recovery High Voltage Diode

FAQ



Q1: What is your MOQ?

A1: Normally, 50pcs-100pcs is our MOQ, but for samples, we will give you special MOQ.



Q2: Which port you ship?

A2: Ningbo or Shanghai.



Q3: What payment you use?

A3: T/T or Western Union both ok. If you would like place order on Alibaba, also acceptable.



Q4: How long is your lead time?

A4: Normally 10-20 days.



Q5: How long warranty for your products?

A5: One year.
