2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode

2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode thumbnail-1
2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode thumbnail-2
2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode thumbnail-3
2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode photo-1
2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode photo-2
2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode photo-3
US$ 0.1 - 100 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HVCA
Model Number:
2CL71
Contact Supplier Request Quote Chat Now
Cixi AnXon Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HVCA
Model Number 2CL71
Type Rectifier Diode
Package Type Through Hole
Max. Forward Voltage 25V
Max. Reverse Voltage 8KV
Max. Forward Current 5mA
Max. Reverse Current 2uA/5uA
Product Description

1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate



Product Name: 2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode

P/N:

2CL71

Repetitive Peak Reverse Voltage (VRRM)

8KV

Average Forward Current (IF(AV))

5mA

Maximum Surge Current (IFSM)

0.5A

Peak Forward Voltage (VFM)

25V

Peak reverse current (IRRM1)

2uA

Peak reverse current (IRRM2)

5uA

Maximum Reverse Recovery Time (Trr)

100nS

Dimension

 D3xL8mm

Operating Temperature

-40~+100℃

2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode

2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode

2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode

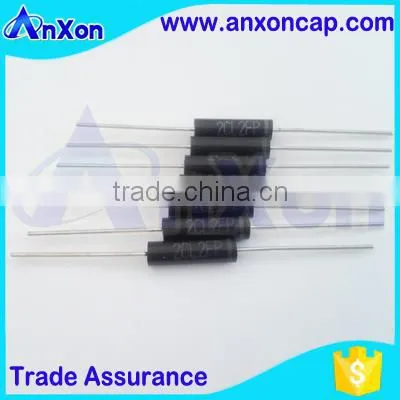

Photos

2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode

Application

2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode

Packaging & Shipping

 2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode



2CL71 8KV 8000V 5mA High Voltage Silicon Fast Recovery Diode

FAQ



Q1: What is your MOQ?

A1: Normally, 50pcs-100pcs is our MOQ, but for samples, we will give you special MOQ.



Q2: Which port you ship?

A2: Ningbo or Shanghai.



Q3: What payment you use?

A3: T/T or Western Union both ok. If you would like place order on Alibaba, also acceptable.



Q4: How long is your lead time?

A4: Normally 10-20 days.



Q5: How long warranty for your products?

A5: One year.
