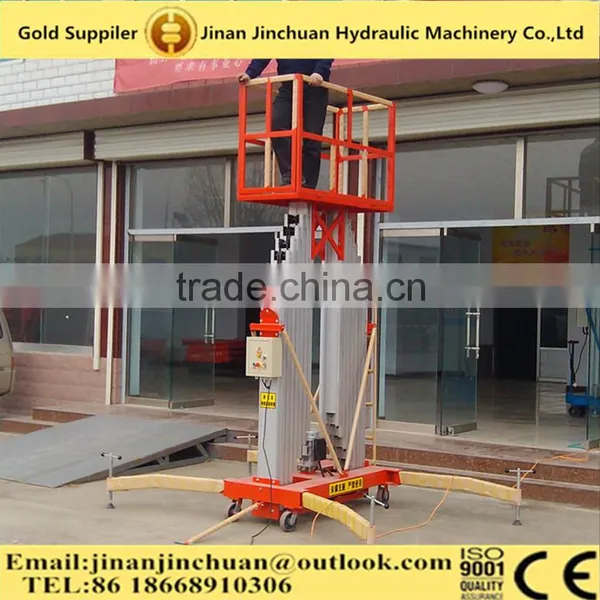

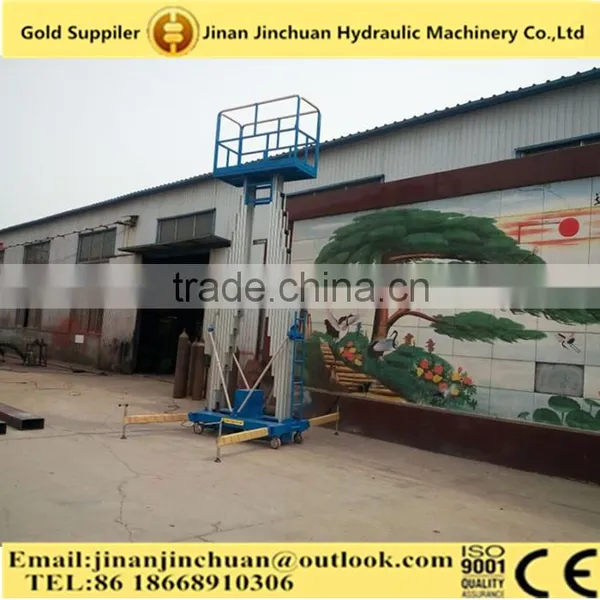

Hydraulic Double Column Aluminum Alloy Elevator/double Mast Aluminum Alloy Lift Platform
US$ 1,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
jinchuan
Model Number:
SJYL0.1-10
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4-20 M Outdoor Scissor Lift Hydraulic Scissor Lifting Platform Double Mobile Lift Platform MastUS$ 1,500 - 3,000MOQ: 1 Set -
Aluminum Hydraulic Lift Platform / Hydraulic Double Mast Aluminum Alloy LiftUS$ 3,500 - 4,500MOQ: 1 Set
-
Single Mast Aluminum Alloy LifterUS$ 800 - 10,000MOQ: 1 Set
-
Portable Platform LadderUS$ 1,000 - 10,000MOQ: 1 Set
-
Single Mast Aluminum Alloy Platform LadderUS$ 1,000 - 10,000MOQ: 1 Set
Place of Origin
China
Brand Name
jinchuan
Model Number
SJYL0.1-10
Lift Mechanism
Lift Chain
Lift Drive / Actuation
Hydraulic
Power
1.1KW
Rated Loading Capacity
100KG
Min. Lifting Height
2300MM
Max. Lifting Height
10M
Table Size
550MM*550MM
Overall Dimensions
1500*870*2300
Weight
480KG
Certification
CE
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas

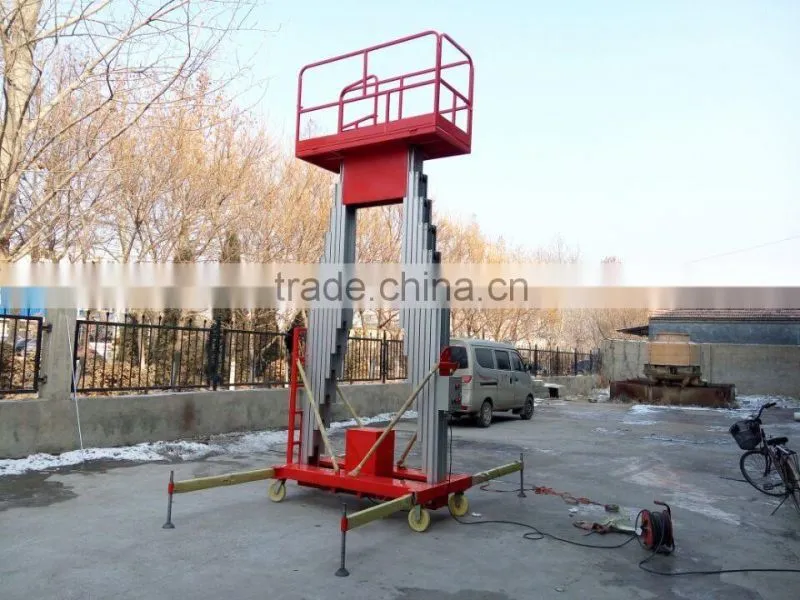

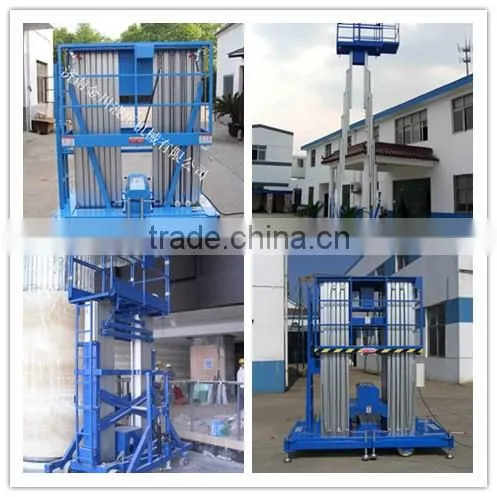

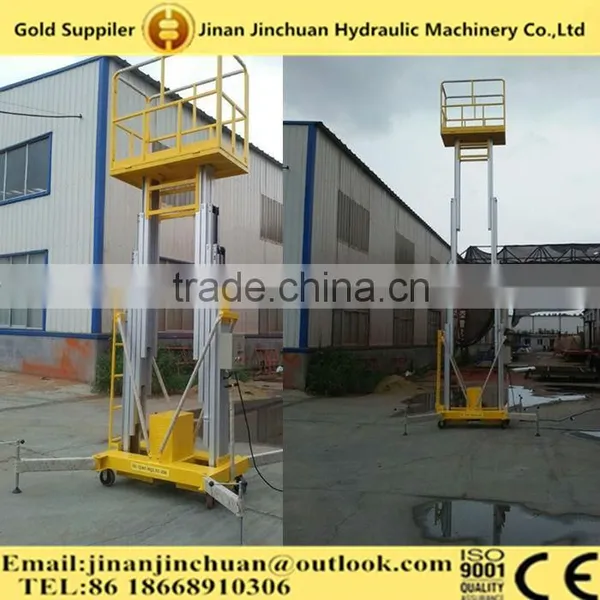

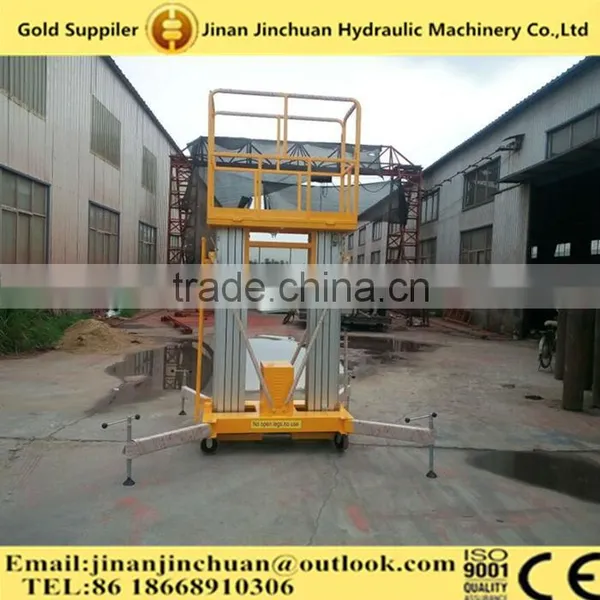

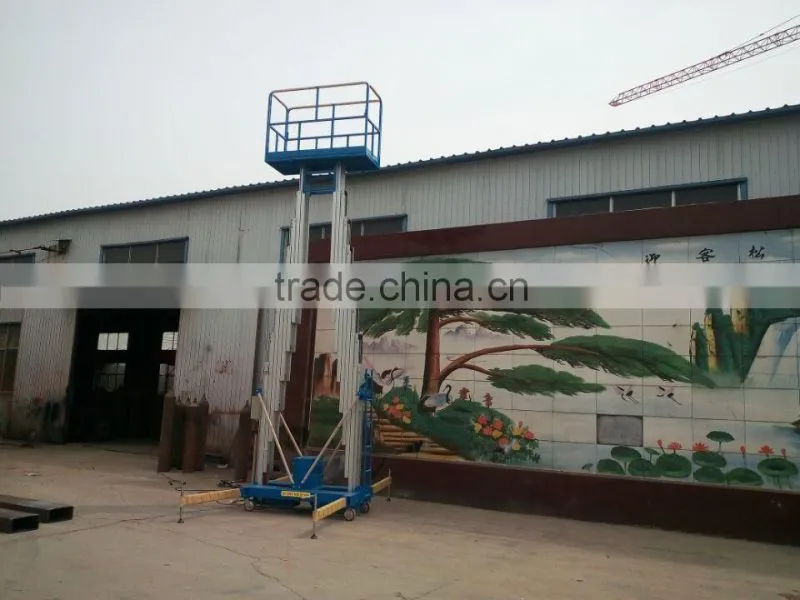

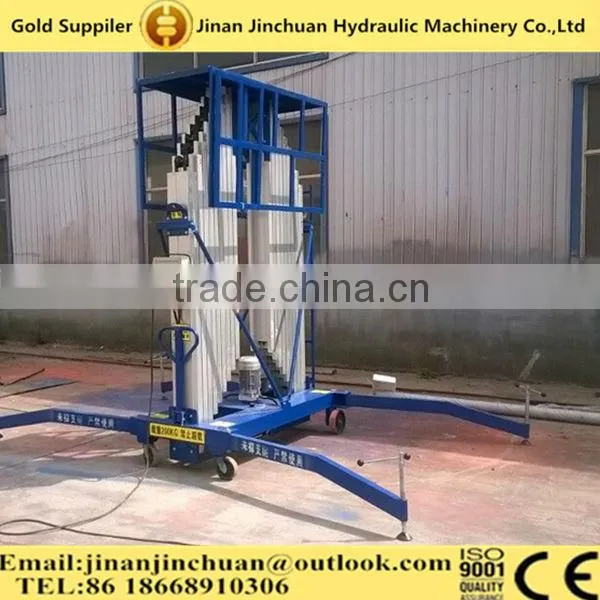

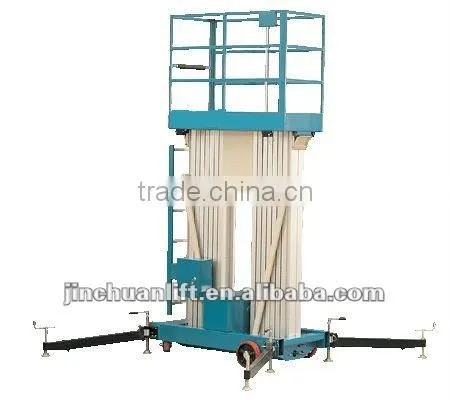

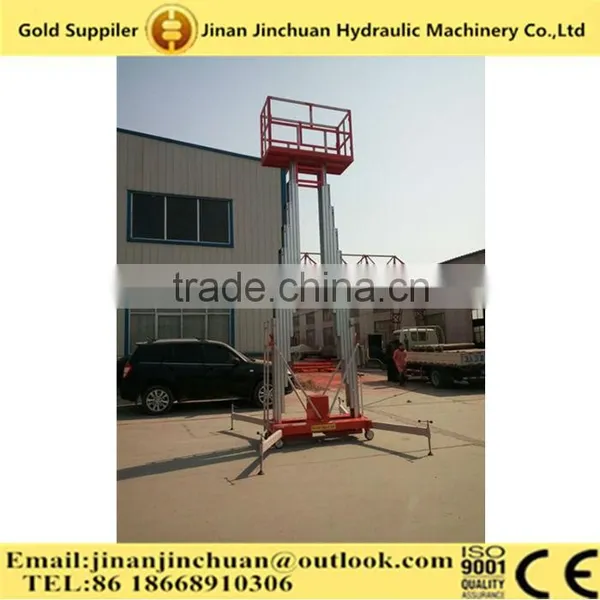

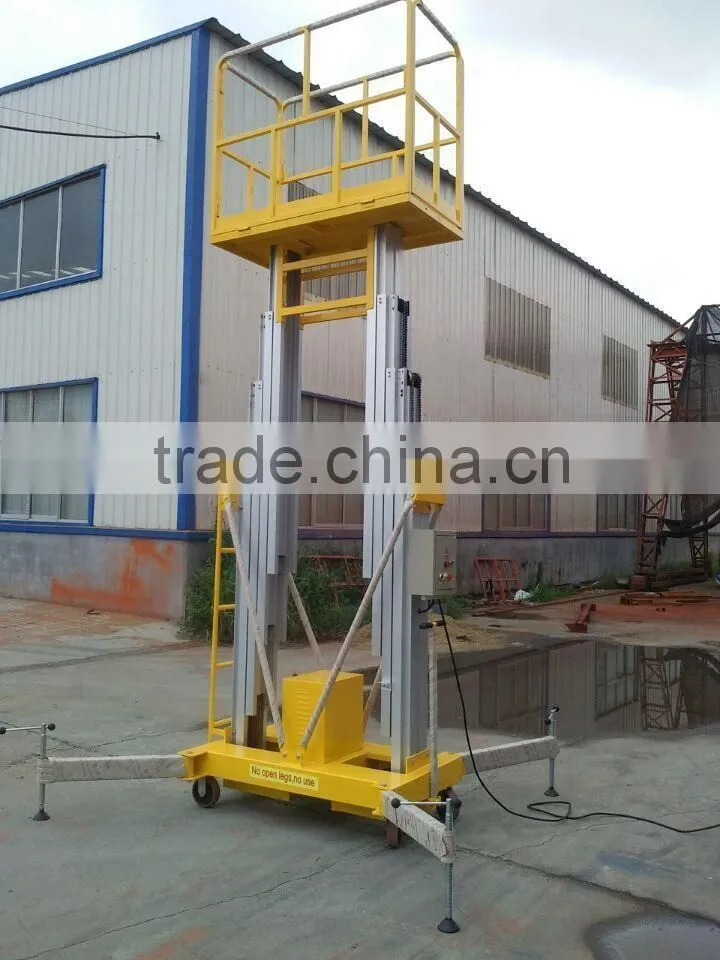

double column aluminum alloy elevator/double mast aluminum alloy lift platform
Product Description
1. This series of products subject structure using high-strength aluminum alloy material.
2. The equipment takes up small spaces , light-weight, mobile flexible, looks beautiful.
3. Electrical control or manual pump control when the electricity is not available.
4. Two control panel: one is hand button, which may be placed in any position on the table rail for the convenience of operation. The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.
5. Easily pushed around to the designated sites
6. Low energy consumption, no pollution, do no damage to the grounds
7. The power sources can be 110V 220V 380V AC power, DC power, depending on the local power sources
| mast | type | platform height(m) | load capcity(kg) | platform size(m) | power(kw) | weight(kg) | dimension(m) |
| single mast | QYLH6-100-1 | 6 | 100 | 0.6*0.6 | 1.1 | 320 | 1.3*0.82*1.98 |
| QYLH8-100-1 | 8 | 100 | 0.6*0.6 | 1.1 | 320 | 1.3*0.82*1.98 | |
| QYLH10-100-1 | 10 | 100 | 0.6*0.6 | 1.1 | 360 | 1.3*0.82*2.2 | |
| double mast | QYLH6-250-2 | 6 | 250 | 1.37*0.6 | 1.5 | 450 | 1.55*0.85*1.65 |
| QYLH8-250-2 | 8 | 250 | 1.37*0.6 | 1.5 | 560 | 1.55*0.85*2.0 | |
| QYLH10-250-2 | 10 | 250 | 1.37*0.6 | 1.5 | 680 | 1.65*0.85*2.0 | |
| QYLH12-200-2 | 12 | 200 | 1.47*0.6 | 1.5 | 720 | 1.65*0.85*2.0 | |
| QYLH14-200-2 | 14 | 200 | 1.47*0.6 | 1.5 | 780 | 1.55*0.85*2.5 | |
| three mast | QYLH10-250-3 | 10 | 250 | 1.58*0.8 | 1.5 | 1080 | 1.88*1.0*2.05 |
| QYLH12-250-3 | 12 | 250 | 1.58*0.8 | 1.5 | 1160 | 1.88*1.0*2.05 | |
| QYLH14-200-3 | 14 | 200 | 1.6*0.8 | 2.2 | 1060 | 1.9*1.2*2.5 | |
| QYLH16-200-3 | 16 | 200 | 1.6*0.8 | 2.2 | 1120 | 2*1.2*2.5 | |
| four mast | QYLH12-250-4 | 12 | 250 | 1.58*0.8 | 2.2 | 1050 | 1.95*1.2*2 |
| QYLH14-200-4 | 14 | 200 | 1.6*0.8 | 2.2 | 1250 | 1.9*1.2*2.5 | |
| QYLH16-200-4 | 16 | 200 | 1.6*0.8 | 2.2 | 1480 | 2*1.2*2.5 | |
| QYLH18-250-4 | 18 | 250 | 1.58*0.8 | 2.2 | 1700 | 2.15*1.35*2.96 | |
| six mast | QYLH18-160-6 | 18 | 160 | 1.6*0.9 | 2.2/1.5 | 1450 | 2.1*1.2*2.1 |
| QYLH20-160-6 | 20 | 160 | 1.6*0.9 | 2.2/1.5 | 1520 | 2.26*1.4*2.3 | |
| QYLH22-160-6 | 22 | 160 | 1.58*0.88 | 2.2/1.5 | 1880 | 2.26*1.4*2.5 | |
| QYLH24-160-6 | 24 | 160 | 1.58*0.88 | 2.2/1.5 | 1980 | 2.26*1.4*2.7 |
Packaging & Shipping
Company Information
Jinan Jinchuan hydraulic machinery co., LTD is a collection research and development, production, sales in the integration of local industry company, for decades of production experience, has its own sales team and after-sales service team. Jinchuan since was established, taking the tenet of "honesty, science and technology innovation" and the concept of "quality first, users first", adhere to go today! Jinchuan will always be with full mental state to meet your
