Specifications
single mast aluminum alloy lifter1. CE, ISO and GOST
2. Good quality, competitive price
3. Best after service

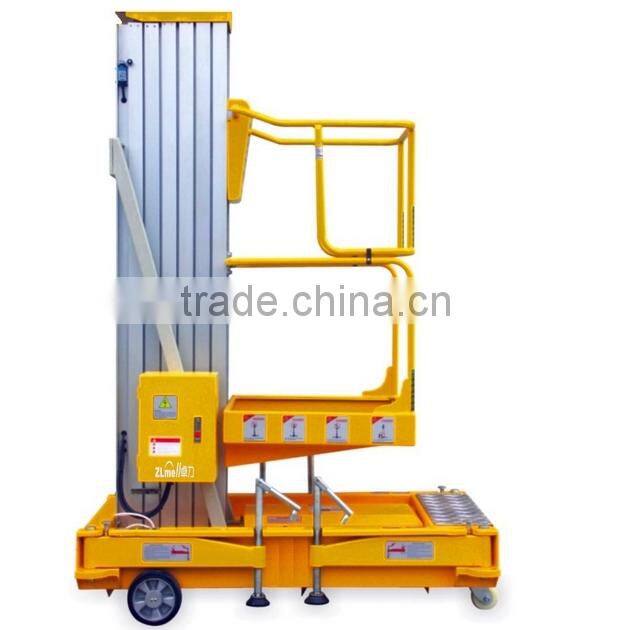

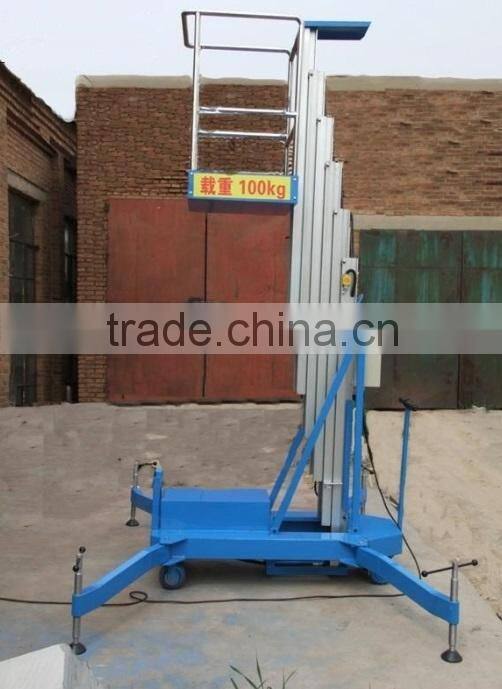

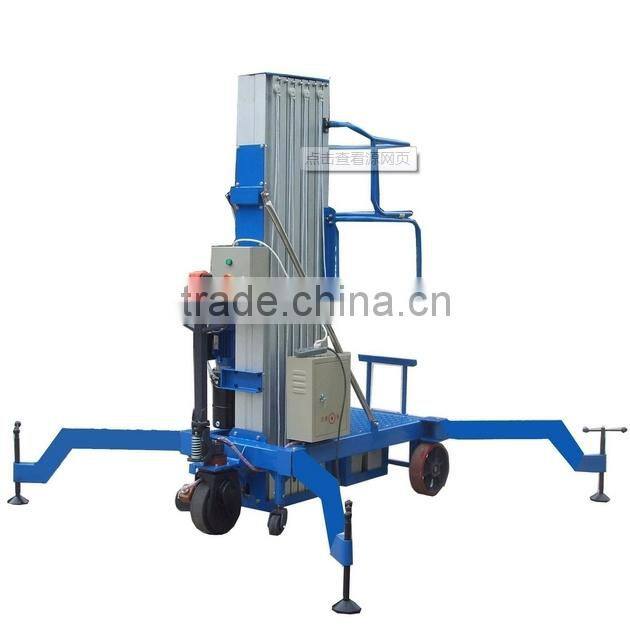

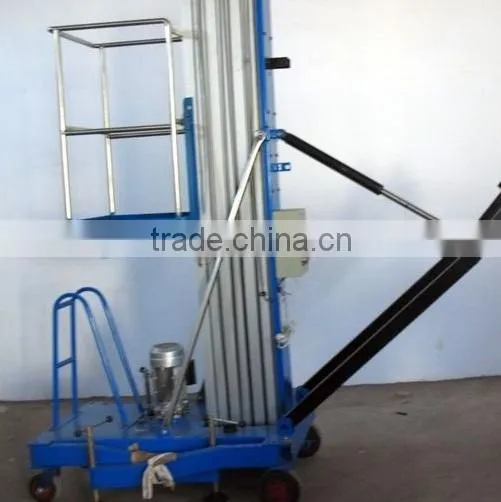

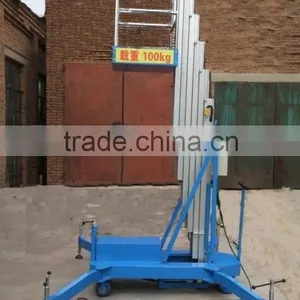

single mast aluminum alloy lifter
Aluminum alloy elevator adopts new type of high strength aluminum alloy profiles,the elevator,stable lifting,the deflection of the requirement,the tilt and single column,double column,three column,widely used in hotels,bank and other places
Technical specifications
Model | SJYZN-6M | SJYZN-4M | SJYZN-8M | SJYZN-10M | |
Max height (m) | 4 | 6 | 8 | 10 | |
Max working height (m) | 5.8 | 7.8 | 9.8 | 11.8 | |
Rated load capacity(kg) | 300 | 300 | 300 | 300 | |
Table size m | 1.92*0.9 | 1.92*0.9 | 1.92*0.9 | 2.4*1.2 | |
Dimension L*W*H | 2.13*1.11*1.185 | 2.13*1.11*1.325 | 2.13*1.11*1.465 | 2.6*1.3*1.465 | |
Shut height m | 1.185 | 1.325 | 1.465 | 1.465 | |
Guardrail height mm | 1.11 | 1.11 | 1.11 | 1.11 | |
Stretch table m | 0.8 | 0.8 | 0.8 | 0.8 | |
Radius of gyration (out/in)m | 2.7/1.8 | 2.7/1.8 | 2.7/1.8 | 2.84/2.04 | |
Table drive speed | Shut max m/s | 0.85 | 0.85 | 0.75 | 0.7 |
Open max m/s | 0.14 | 0.14 | 0.14 | 0.14 | |
Deep pit protect device | Shut distance from the ground m | 0.06 | 0.06 | 0.06 | 0.06 |
Open distance from the ground | 0.02 | 0.02 | 0.02 | 0.02 | |
Jinan jinchuan hydraulic machinery co., LTD. is a design, development, production, sales in the integration of enterprise, specializing in lifting platforms and dock ramps etc. aerial work platform and hydraulic lifting machinery .
all kinds of lift platform as below
l Mobile scissor lift platform
l Stationary scissor lift table
l Stationary guide rail lift platform
l Aluminium alloy hydraulic platforms
l Vehicle mounted scissor lift platform
l Mobile lift for special use
l Self-propelled articulated work platform
l Telescopic cylinder lift platform
l Life stage
l Lift with no obstacle for the elderly,the disable and special equipment.
l Mobile hydraulic yard ramp introduction
l Stationary hydraulic yard ramp
Looking forward to your order
Patrick
SKYPE:ZHTTHEBEST
QQ:1136050783
