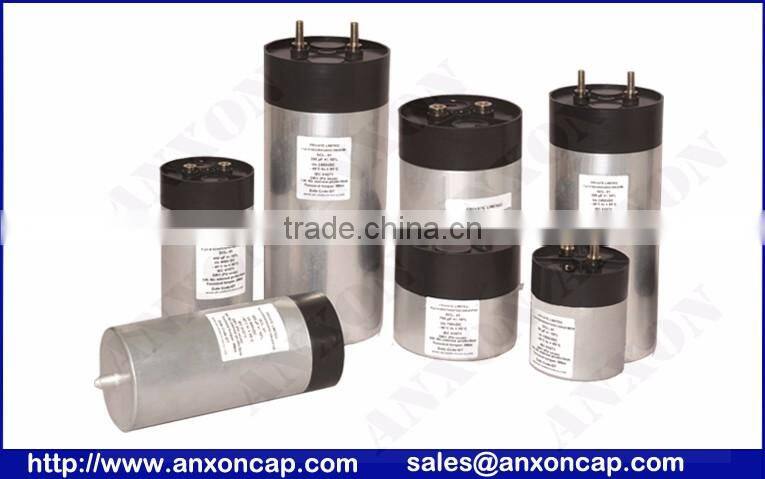

Direct Cross to PK16 XC E50.R19-544NT0 1500V 540uF 540MFD 550uF 550MFD Energy Storage Pulse Capacitor

Product name: Direct cross to PK16 XC E50.R19-544NT0 1500V 540uF 540MFD 550uF 550MFD Energy Storage Pulse Capacitor

DC LINK Capacitor 1500V 540uF, DC power capacitor 1500VDC 540MFD, high power DC Capacitor 1500V 550mfd, Capacitor for DC LINK converter, 1500V 550uf inverter capacitor from AnXon Electronic

Choose the best capacitor for any of your power electronics applications, high quality equivalent Direct cross to Electronicon PK16 XI series capcitors provided by AnXon Electronic, 600V, 700V, 800V, 900V, 1100V, 1300V, 1500V, 1800V, 2000V, 2200V, 2400V, 2600V, 2800V, 3000V, 3200V, 3600V, 4000V DC Link capacitors

Specifications

• Capacitance range 50μF to 7400μF

• Rated Voltage 600vdc to 4000vdc

• Capacitance Tolerance ±10%,±5%

• Dissipation factor ( Tan d) 0.0002

• Insulation Resistance MΩ x μF 5,000S @ 25°C (S = MΩ x μF)

• Dielectric strength between terminals (U ) 1.5 x rated voltage for 60 secs T-T

• Test Voltage Terminal to case (U ) Up to 4800 Vac 50 Hz T-c

• Operating Temperature: -40°C to +85°C

Features

• High RMS current

• Low ESR

• Life Expectancy 100,000 Hours

• Fully encapsulated dry construction

• Flame retardant UL94 - V0, ROHS compliant

• Reference Standard: IEC 61071 and IEC 60068

Applications

• DC Link and DC Filter applications in Power converters for

• Uninterruptible power supplies

• Wind power inverters

• Solar power inverters

• Traction and industrial drives.

• Impulse discharge capacitors for magnetizing and welding
