Help Center30KV 0.02UF 20NF 20000PF 203 High Voltage Impulse Generator Capacitor
Related Products
-
40KV 0.02UF 20NF 20000PF 203 High Voltage Generator CapacitorUS$ 45 - 90MOQ: 10 Pieces -
40KV 0.01UF 10NF 10000PF 103 High Voltage Pulse Generator CapacitorUS$ 35 - 80MOQ: 10 Pieces
-
40KV 8000PF 802 High Voltage Pulse Generator Ceramic CapacitorUS$ 25 - 60MOQ: 10 Pieces
-
40KV 5500PF 552 HV Pulse Generator CapacitorUS$ 25 - 60MOQ: 10 Pieces
-
40KV 5000PF 502 HV Pulse Power CapacitorUS$ 25 - 60MOQ: 10 Pieces
1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate
6, World class customers experience

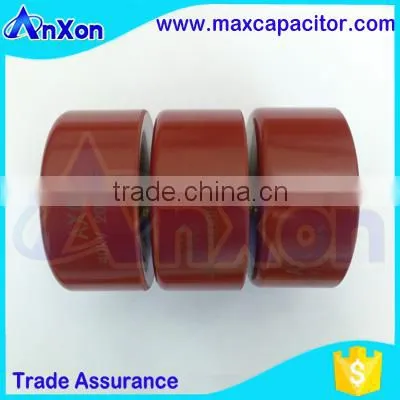

Product Name: 30KV 0.02UF 20NF 20000PF 203 High voltage impulse generator capacitor
High Voltage Ceramic Capacitor 30KV 20000PF, Molded type Ultra-high Voltage Ceramic Capacitors 30KVAC, 30KVrms 203 high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
Rated Spec: |
30KV 20000PF , 30KV 203 |
AnXon P/N |
AXCHV30DL203KDB |
Tolerance: |
K, ±10% |
Type: |
Molded / Doorknob / Screw Mounting |
Ceramic Dielectric : |
N4700 |
Operating Temperature: |
-30C ~ 85C |
Size / Dimension(ΦD×T*H): |
D:98mm, H:170mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
- Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
- Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
- Impulse Voltage: 45KVdc-225KVdc
- Capacitance Range: 10pF - 100000pF
- Operating frequency: 20KHZ-1000KHZ
- Materials: N4700, Y5T, Y5P, Y5V, Y5U
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer,
More specifications
Part No. |
Rated Spec |
Testing voltage |
Partial discharge |
Dissipation factor |
Dimension(mm) |
||
kVdc |
kV/1min |
|
1kHz/1V |
D |
H |
M |
|
AXCHV30DL401KDB |
30KV 400PF |
DC45KV AC30KV |
AC15KV<5PC |
≤0.1% |
24 |
26 |
M4X5 |
AXCHV30DL501KDA |
30KV 500PF |
24 |
28 |
M4X5 |
|||
AXCHV30DL501KDB |
30KV 500PF |
30 |
34 |
M4X5 |
|||
AXCHV30DL601KDB |
30KV 600PF |
30 |
28 |
M4X5 |
|||
AXCHV30DL901KDA |
30KV 900PF |
30 |
28 |
M4X5 |
|||
AXCHV30DL901KDB |
30KV 900PF |
38 |
28 |
M4X5 |
|||
AXCHV30DL951KDB |
30KV 950PF |
38 |
28 |
M4X5 |
|||
AXCHV30DL102KDB |
30KV 1000PF |
38 |
28 |
M4X5 |
|||
AXCHV30DL112KDB |
30KV 1100PF |
38 |
28 |
M4X5 |
|||
AXCHV30DL172KDB |
30KV 1700PF |
52 |
28 |
M5X5 |
|||
AXCHV30DL202KDB |
30KV 2000PF |
52 |
28 |
M5X5 |
|||
AXCHV30DL252KDB |
30KV 2500PF |
52 |
28 |
M5X5 |
|||
AXCHV30DL272KDB |
30KV 2700PF |
52 |
28 |
M5X5 |
|||
AXCHV30DL402KDB |
30KV 4000PF |
58 |
28 |
M5X5 |
|||
AXCHV30DL502KDB |
30KV 5000PF |
70 |
36 |
M8X8 |
|||
AXCHV30DL702KDB |
30KV 7000PF |
80 |
36 |
M8X8 |
|||
AXCHV30DL103KDA |
30KV 10000PF |
106 |
38 |
M8X10 |
|||
AXCHV30DL103KDB |
30KV 10000PF |
98 |
120 |
M8X10 |
|||
AXCHV30DL203KDB |
30KV 20000PF |
98 |
170 |
M8X10 |
|||
HV Capacitor Application Guide
