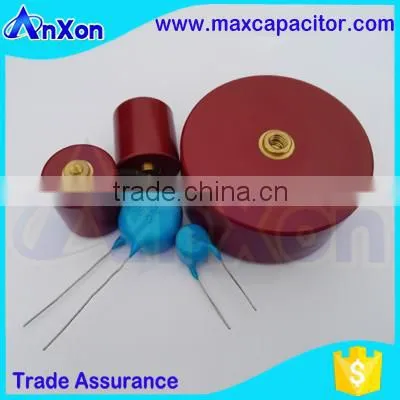

Product Name: T3M N4700 Y5P Y5T Y5U Y5V Y5S Z5T Z5U Z5V High voltage ceramic capacitor
High Voltage Ceramic Capacitor 50KV 3300PF, Molded type Ultra-high Voltage Ceramic Capacitors 50KVAC, 50KVrms 332 high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
Rated Spec: |
50KV 3300PF , 50KV 332 |
AnXon P/N |
AXCHV50DL332KDB |
Tolerance: |
K, ±10% |
Type: |
Molded / Doorknob / Screw Mounting |
Ceramic Dielectric : |
N4700 |
Operating Temperature: |
-30C ~ 85C |
Size / Dimension(ΦD×T*H): |
D:70mm, H:44mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
- Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
- Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
- Impulse Voltage: 45KVdc-225KVdc
- Capacitance Range: 10pF - 100000pF
- Operating frequency: 20KHZ-1000KHZ
- Materials: N4700, Y5T, Y5P, Y5V, Y5U
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer,
More specifications
Part No. |
Rated Spec |
Testing voltage |
Partial discharge |
Dissipation factor |
Dimension(mm) |
||
kVdc |
kV/1min |
|
1kHz/1V |
D |
H |
M |
|
AXCHV50DL201KDB |
50KV 200PF |
DC75KV AC50KV |
AC25KV<8PC |
≤0.1% |
24 |
39 |
M4X6 |
AXCHV50DL401KDA |
50KV 400PF |
30 |
39 |
M4X6 |
|||
AXCHV50DL601KDB |
50KV 600PF |
38 |
39 |
M4X6 |
|||
AXCHV50DL112KDB |
50KV 1100PF |
40 |
33 |
M5X6 |
|||
AXCHV50DL162KDA |
50KV 1600PF |
52 |
40 |
M5X6 |
|||
AXCHV50DL172KDB |
50KV 1700PF |
52 |
40 |
M5X6 |
|||
AXCHV50DL202KDB |
50KV 2000PF |
60 |
44 |
M8X8 |
|||
AXCHV50DL332KDB |
50KV 3300PF |
70 |
44 |
M8X8 |
|||
AXCHV50DL402KDB |
50KV 4000PF |
80 |
44 |
M8X8 |
|||
AXCHV50DL502KDB |
50KV 5000PF |
80 |
44 |
M8X8 |
|||
AXCHV50DL103KDB |
50KV 10000PF |
98 |
160 |
M8X10 |
|||
AXCHV50DL203KDB |
50KV 20000PF |
98 |
260 |
M8X10 |
|||
AXCHV50DL223KDB |
50KV 22000PF |
98 |
275 |
M8X10 |
|||
