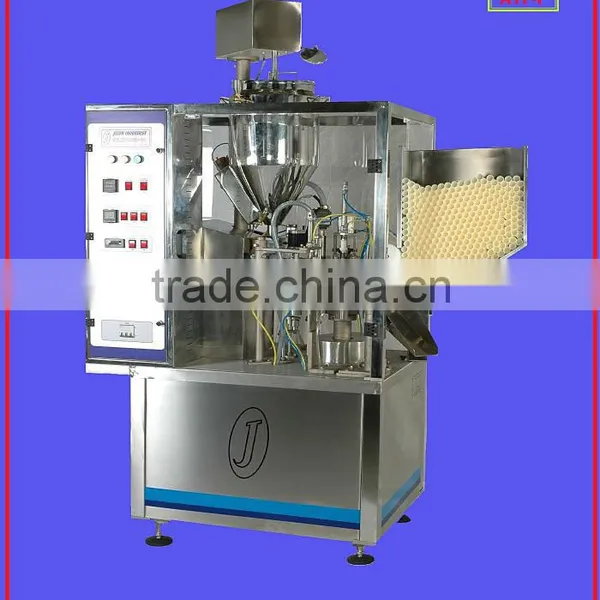

Fully Automatic Lami Tube Filling Machine

Specifications

No- Tube-No Fill Facility
Cutting And Trimming Of Irregular Portion After Sealing
Alarm Annunciation System
Efficient

FULLY AUTOMATIC LAMI TUBE FILLING



Simple and sturdy machine for filling of pharmaceutical / cosmetic / food pastes in tubes. The machine is suitable for filling cream, paste, ointment, balm, grease, jam, sauce, paint etc. in laminated or plastic or aluminium tubes. The empty tubes are loaded in the machine’s ‘Tube Hopper’ and then the rest of the operations are automatic. Tube Loading, Tube Orientation, Filling, Sealing or Crimping, Batch Coding, Trimming and Tube Ejection is done in sequential operation on an intermittent motion rotary table. The machines are made in versions – one for plastic / laminated tubes and other for aluminium tubes. Plastic / laminated tubes are heat sealed whereas aluminium tubes are crimped.



Tubes are filled by stainless steel syringe pump. Fill volume can be accurately set as required. Different sizes of syringes are available for different ranges of fill volume.



Plastic / laminated tubes are sealed using latest technology of hot air jet that eliminates direct contact of heated jaws with tubes, thus giving cleaner seal and faster output. The heated and softened edges are then pressed by pneumatically operated jaws for sealing and batch code embossing.
