Help CenterOintment Plant
Related Products
Specifications
Ointment / Cream Manufacturing Plant, consisting of:a) Water Phase Vessel
b) Wax Phase Vessel
c) Main (Reactor) Vessel

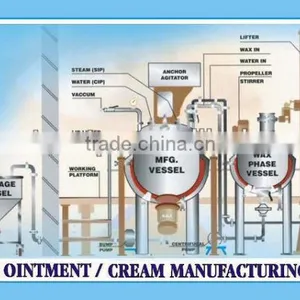

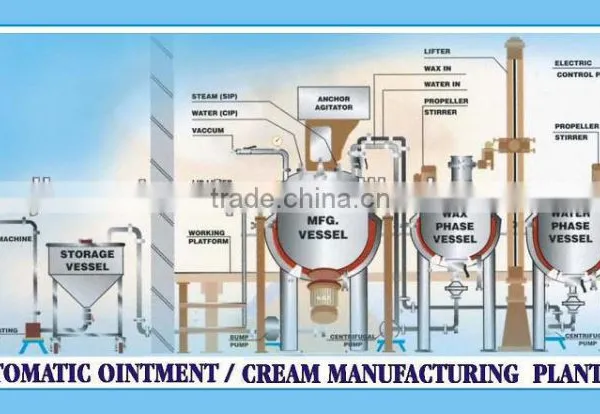

OINTMENT / CREAM MANUFACTURING PLANT
Ointment / Cream is medicated homogenised emulsion of Wax and Water to a particular formulation, which is prepared in automatic / semi automatic manufacturing plant known as Ointment / Cream Manufacturing Plant, consisting of: -
a) Jacketed Water Phase Vessel of adequate capacity according to batch size of the product to heat it to a specified temperature according to formulation.
b) Jacketed Wax Phase Vessel to melt wax of required formulated quantity to specified temperature.
c) Molten wax and hot water then transferred by Vacuum to Jacketed Main (Reactor) Vessel through filter and the pipe lines laid in the plant, Medicinal ingredients according to formula of the formulation added, then cooked at constant temperature under 400 mm Vacuum with continuous stirring, homogenized till it becomes an emulsion with consistent viscosity. Thus the sample is taken out for Lab test for quality acceptance.
Once quality is approved, the whole mass is transferred to Storage Vessel and then the plant is ready to take the next batch preparation of the same product or to be thoroughly cleaned to take up next product.
Heating can be Electrical / Steam / Thermic Fluid.
All contact parts are made of superior quality SS 316 / SS 316 L grade stainless steel material, other non contact parts are made out of SS 304 material. Jackets are made out of M.S. Claded with SS 304.
This satisfies GMP standard.
PLANT SPECIFICATIONS:
a) WATER PHASE VESSEL
b) WAX PHASE VESSEL
c) MANUFACTURING VESSEL: (Reactor Vessel)
d) AGITATION ASSEMBLY
e) HIGH SHEAR HOMOGENISER
