Performs two operations mixing & granulatingSpecially designed chopper blades
High speed
Easy cleaning of mixing bowl

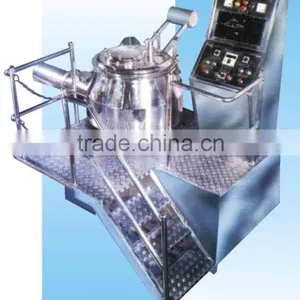

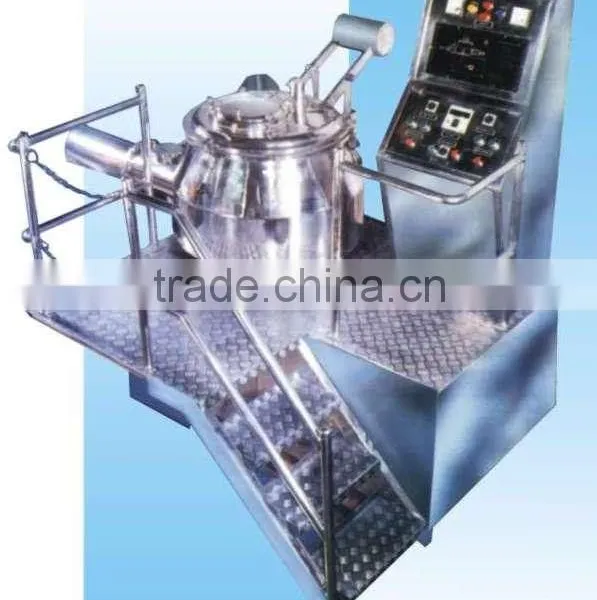

Rapid Mixer Granulator
The Rapid Mixer Granulator is designed to suit the requirements of Pharmaceutical and Chemical Industry. As the name suggests, this machine performs two operations mixing and granulating. After mixing of dry powders or granules, subsequent wet granulation occurs producing loose granules, thus avoiding transfer of dry mixture.
The mixing is achieved by paddle type impeller blades spinning close to bottom of the mixing bowl. The impeller blades are angled in a way that sets the entire mixture in a whirling - rising - tumbling motion ensuring a quick and even distribution of all dry components which leads to an even wetting of every granule. Dome shaped mixing bowl directs loose particles into whirling motion with help of impeller for efficient mixing.
The large lumps formed during wet mixing are broken up by chopping tool rotating at 1440/2880 RPM. Specially designed chopper blades driven at high speed for fast and uniform granulation throughout the whole mass in mixing bowl. The mix can be discharged with the impeller running through outlet located on the side of the mixing bowl near the bottom.
The mixing tool is easily removed from the drive shaft to facilitate easy cleaning of mixing bowl. The side discharge assembly is hinged for accessibility for cleaning.
- Contact parts can be of SS 304/316 grade.
- Control panel with display and timer.
- All MS parts of machine are cladded / covered with SS sheets.
- All components easily accessible for easy cleaning.
- All electrical &pneumatic parts are prewired to simplify installation.
- Limit switch provided on main lid for safe operation.
- Discharge can be provided on either side to suit clients requirement.
Technical Specification:
MODEL |
RMG 25 |
RMG 100 |
RMG 150 |
RMG 250 |
RMG 400 |
RMG 600 |
RMG 1000 |
Gross Volume in Ltrs |
25 L |
100 L |
150 L |
250 L |
400 L |
600 L |
1000 L |
Working Volume in Ltrs |
20 L |
80 L |
120 L |
200 L |
320 L |
480 L |
800 L |
Main Motor H.P |
3/5 HP |
7.5/10 HP |
10/15 HP |
20/30HP |
30/40 HP |
40/50 HP |
63/85 HP |
Main Motor RPM |
750/1500 |
750/1500 |
750/1500 |
750/1500 |
750/1500 |
750/1500 |
750/1500 |
Chopper Motor H.P |
1/2 HP |
2/3 HP |
3/5 HP |
3/5 HP |
5/7.5 HP |
5/7.5 HP |
10/15 HP |
Chopper Motor RPM |
1440/2880 |
1440/2880 |
1440/2880 |
1440/2880 |
1440/2880 |
1440/2880 |
1440/2880 |
WT in KG (Approx) |
900 KG |
1400 KG |
1500 KG |
1800 KG |
2000 KG |
2300 KG |
3000 KG |
L |
1400 |
2350 |
2500 |
2510 |
2760 |
3040 |
3200 |
W |
1000 |
1100 |
1250 |
2350 |
2565 |
2690 |
3150 |
H |
1310 |
1750 |
1820 |
2050 |
2245 |
2460 |
2610 |
(DIMENSIONS in mm) H-1 |
1345 |
1900 |
2100 |
2200 |
2470 |
2850 |
3250 |
