Auotmataic Alu- Alu Blister Forming Machine

Specifications

Simple Operation
Quick Change Over
Easy Maintenance
Suitable for Alu-Alu,PVC-Alu & PVC-Paper Blister Packs

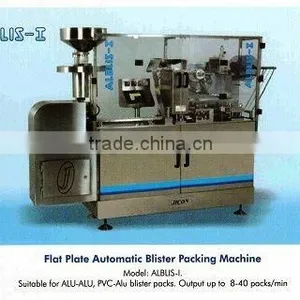

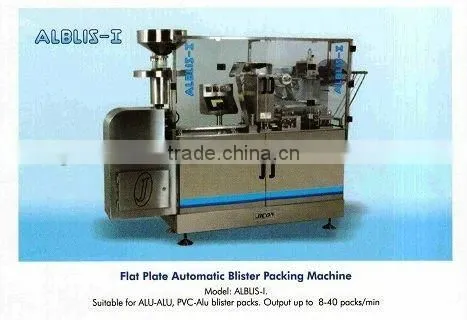

Auotmataic Alu- Alu Blister Forming Machine



ALBLIS-I is a versatile Flat Plate intermittent motion automatic blister packing machine that can produce Alu-Alu blister packs by cold forming method as well as PVC-Alu blister packs by thermoforming method .This machine is utilized for packing of smaller and regular shaped solid articles such as pharmaceutical Tablets, Capsules, Dragees etc. in Alu-Alu or PVC-Alu blister packs. Pharmaceutical Ampoule Vial Blister Packing Machine can also be used for packing of Ampoules, Vials, Tubes in PVC-Alu blister packs. The Blister Forming, Sealing, Indexing and Punching operations are of intermittent reciprocating motion.

Various types and style of product feeding devices are offered to suit different application.

The Standard configuration of machine is for producing of Alu Alu blisters suitable for pharmaceutical tablets, capsules, Dragees etc. The standard configuration may be opted out or can be combined with other configurations.



Features



- Suitable to Produce: ALU ALU blister packs, PVC ALU blister packs and various other packaging  materials

- PLC controlled operation with touch screen interface

- Variable speed with frequency control drive

- Batch Code over-printer can be mounted

- Various options of product feeding devises available to suit different pack types and products



Technical Features





Base Material : Max Width: (Cold form laminated Alu Foil/PVC-PVDC)               0.2 To 0.3 Thick; in Reel form maxØ250	140
Lidding Material: Max Width:(HSL Coated hard Alu/Glassine Foil)0.02 To 0.043 Thick; in Reel form max Ø220	140
Max. Pack Size: (1Up)  (2Up)	130 x 130                              130 x 62
Min. Pack Size:	40 x 45
Max.Forming Depth:	10 (Extendable to 20)
Max. Output*:Packs/Min	30 (1 Up)                            60 (2 Up)
Max.Strokes/Min	30
Compressed air pressure (Bar)	6
Air Consumption (Lit/Min)	200
Electric Power Connection                              Details:	440V, 3Ph,Ac, N,Earth    (Other Voltage on Requ.)
Net Weight kg.	800 kg
Gross Weight kg	1000 kg
Case Dimensions:	2400x790x1800(H)
