Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Genew Multi-Service Transmission Product NC5200D+-SDH&PCM Integrated Equipment

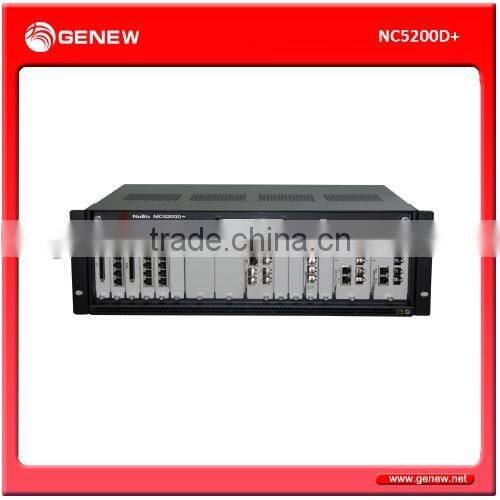

Genew Multi-Service Transmission Product NC5200D+-SDH&PCM Integrated Equipment

Name: Genew Multi-Service Transmission Product NC5200D+-SDH&PCM Integrated Equipment
Brand: Genew
SKU: 102675009
Availability: InStock

Genew Multi-Service Transmission Product NC5200D+-SDH&PCM Integrated Equipment thumbnail-1

Genew Multi-Service Transmission Product NC5200D+-SDH&PCM Integrated Equipment photo-1

US$ 1.00 - 1.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Genew

Model Number:

MSTP NC5200D+

Contact Supplier Request Quote Chat Now

Genew Technologies Co. Ltd. (Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Shekou Yantian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Genew

Model Number MSTP NC5200D+

Product Description

Genew Multi-Service Transmission Product NC5200D+-SDH&PCM Integrated Equipment

NC5200D+ is an integrated SDH, MSTP, PDH, Ethernet switch and PCM (64K service),

and other functions in one multi-service integrated transmission access equipment, which is

mainly located in the metro network’s edge access layer or aggregation layer.

NC5200D+ with strong cross-connection capacity, not only supports high order/low order

SDH cross-connection, PCM 64K TS cross-connection, supports 2.5G/622M/155M multiple

types of optical port cross-connection capability, but also supports packet switch capabilities,

which can be smoothly upgraded to the PTN integrated access equipment.

NC5200D+ on the NNI side can provide SDH 2.5G/622M/ 155M rate and other upstream

rate, along with the ability to provide PTN GE/ 10GE uplink on the NNI side, supporting

two-way bearing capability of SDH / MSTP, PTN network.

NC5200D+ on the UNI side provides SDH, PDH, Ethernet, PCM, and other service port

capabilities, meeting a variety of integrated access network applications flexibly.

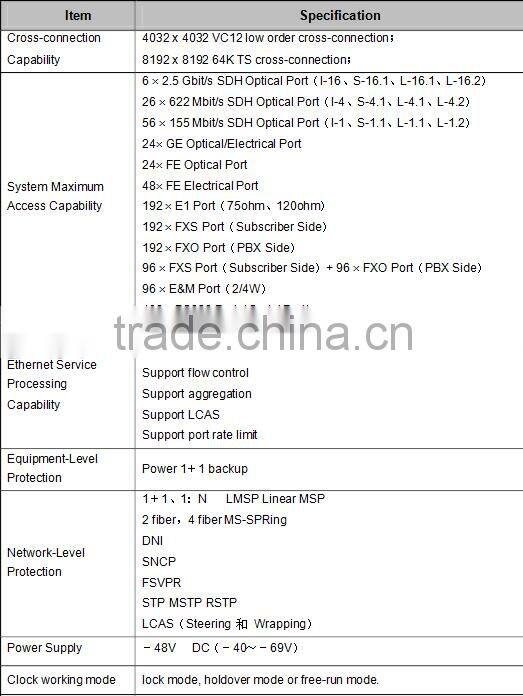

Specifications

Item	Specification
Mechanical Size	176mm482.5mm327.8mm(H×W×D)
Weight	Less than 19Kg when full configuration
Power Consumption	Less than 200W when full configuration
System	256 x 256 VC4 high order cross-connection;

Product Overviews

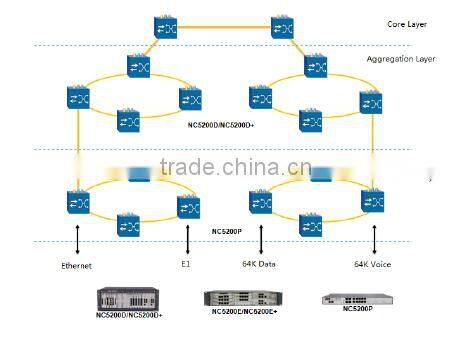

Application:

NC5200D+ equipment could be used in the metro network’s aggregation layer or access layer, which could be used to form networks with NC5200E+/ NC5200P / NC5200 /NC5800 equipments, its network applications will be showed as the following:

Packaging & Shipping

Packaging:

1. All products will be packed in carton, so the product can get effective protection to avoid damage.

2. Packaging according to customer requirement

Shipping:

1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.

2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.

3. You can choose your own shipping agent, we will provide good cooperation for it.

Our Services

1,We can provide detail documents and remote help for device installation and configuration.

2,Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3,Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
