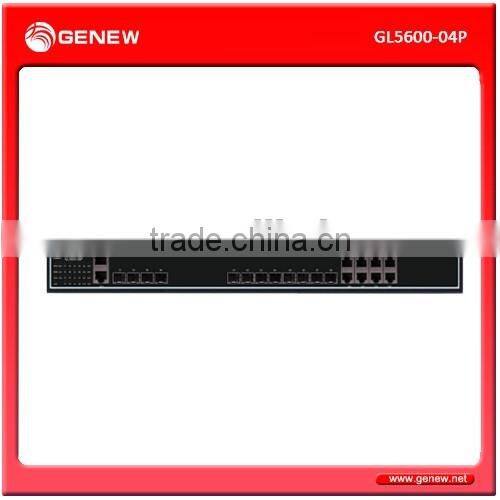

Genew GL5600-04P Cassette LAN Switch
1. GL5600-04P cassette LAN Switch provides 4 downstream GPON ports, 8 uplink GE optical port and 8 GE electrical ports, with an expansion slot, which can access 2 10GE SFP+ ports.
The 1U height can be easy installed and maintained to save space.
2. The GL5600-04P adopts the industrial advanced technology, with powerful Ethernet services and QoS feature, supporting SLA and DBA.
The splitting ratio up to 1:128, supporting different types of ONU in different networks, minimizing operators' investments.
Attributes |
GL5600-04P |
Switching capacity |
102Gbps |
Throughput (IPv4/IPv6) |
75.88MPPS |
Ports |
4*PON port,8*GE FX+8*GE TX,2*10GE SFP+ |
Power redundancy |
Dual power supply. Can be double AC, double DC or AC+DC |
Power supply |
AC:Input 100~240V,47~63Hz; DC:Input -36V~-75V; |
Power consumption |
≤85W |
|
Outline dimensions (mm) (W*D*H) |
440mm×44mm×380mm |
Weight (in maximum configuration) |
≤3kg |
|
Environmental requirements |
Working temperature:-15°C~55°C Storage temperature:-40°C~70°C Relative humidity:10%~90%,no condensing |
Attributes |
GL5600-04P series |
|
|
PON features
|
GPON |
Satisfy ITU -T standard TR-101 compliant solution for FTTx applications High splitter rate, each PON port supports 32*ONU ,96*T-CONT Maximum transmission distance of 20KM Support uplink FEC, downlink FEC(Forward Error Correction) ONU identifier authentication :SN /SN+PASSWD Bandwidth allocation mechanism 5 types of T-CONT bandwidth Static Bandwidth Allocation Dynamic Bandwidth Allocation GPON feature parameter 4096 port-IDs per GPON MAC (Downstream and Upstream) 1024 Alloc -IDs per GPON MAC (Upstream ) |
L2 features |
MAC |
MAC Black Hole Port MAC Limit |
|
VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN Port-based QinQ and Selective QinQ (StackVLAN) VLAN Swap and VLAN Remark and VLAN Translate GVRP Based on ONU service flow VLAN add, delete, replace |
|
Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) |
|
Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
Packaging:
1. All products will be packed in carton, so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping:
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
1,We can provide detail documents and remote help for device installation and configuration.
2,Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3,Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
