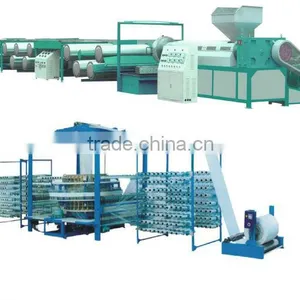

plastic machine for pp woven sacking making machine
1. Plastic Tape Drawing Machine:
2. More information for Plastic Tape Drawing Machine:
The machine, using material of polypropylene and high density polyethylene, through heating, extruding and drawing, makes tape that is then winded for the weaving of the circular loom.Having been improved so many times, the machine can use 100% recycled PP and PE granules or powder to produce yarn.
3. Main Technical parameters:
| Type | SJ-FS135-1600B | SJ-FS140-1800B | SJ-FS145-2000B | SJ-FS150-2200B | SJ-FS160-2600B |
| Diameter of Screw(mm) | 135 | 140 | 145 | 150 | 160 |
| L/D ratio of screw | 26:1 | 26:1 | 26:1 | 26:1 | 28:1 |
| Rotational speed of screw(r/min) | 22-65 | 22-65 | 26-60 | 26-60 | 26-60 |
| Width of die(mm) | 1600 | 1800 | 2000 | 2200 | 2600 |
| Motor power of extruder(kw) | 37 | 37 | 45 | 55 | 75 |
| Heating power ofextruder(kw) | 77 | 80 | 86 | 86 | 96 |
| Power of drawing motor(kw) | 7.5 | 7.5 | 7.5 | 11 | 11 |
| Heating power of the oven(kw) | 20 | 20 | 22 | 22 | 22 |
| Drawing rate | 4-12 | 4-12 | 4-12 | 4-12 | 4-12 |
| Thickness of tape(mm) | 0.03-0.08 | 0.03-0.08 | 0.03-0.08 | 0.03-0.08 | 0.03-0.08 |
| Production capacity(kg/h) | 90-180 | 100-200 | 110-240 | 120-260 | 140-300 |
| Drawing speed(m/min) | 50-150 | 50-150 | 50-150 | 50-150 | 50-150 |
| Installing dimensions(L*W*H)mm | 20000×2600×2200 | 20000×3400×2200 | 21000×3400×2200 | 22000×3700×2200 | 23000×4400×2500 |
| Weight(kg) | 16000 | 17000 | 20000 | 21500 | 24500 |
Technical Paramters are subject to change without prior notice!
4. This machine can match with pp woven winding machine as following :
5. Flow chart of woven bag production:
6.Pictures for other type of machines:
7.Contact us:
Wenzhou NanYi Plastic Machinery Co.,Ltd
ADD:No.268, National Road104, Aojiang Town, Wenzhou City, Zhejiang,China
Website: http://www.nanyijixie.comor
http:// zjnymachine.en.china.cn
Tel: +86-577-63696280 Fax:+86-577-63690818
Mob:+86-13867739043
Skype: lissy.xie
