Nylon filament yarn extruding machine

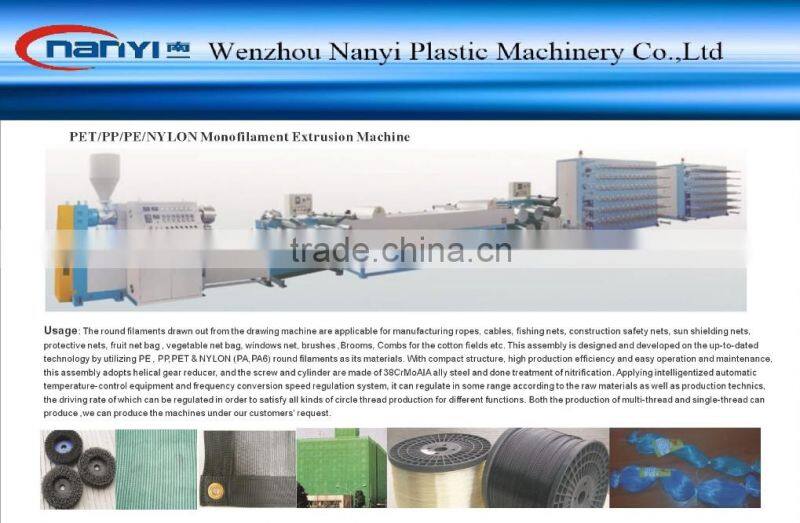

1. Monofilament Yarn Making Machine:
This monofilament yarn making machine is absorbed from international advanced technical and manufactures by ourself , which major in producting monofilament yarn by HDPE , PP material , PET, Nylon etc.
The assembly is compacted in its structure. AD motor is used for drawing thus a synchronous speed regulation and a sinle speed regulation can be achieved to meet the different paramenters. The spinnerets produced by the most advance way so that the flatness and eveness of the filaments can be ensured, stability in motion, sensitiveness in control, conenience operation, hgh safety and reliability.
3. Main Technical parameters:
| Item | SYL Nylon monofilament yarn making machine |
| Type | SYL- 65*100 |
| Extruder | 1) Raw material PA6, PA66 |
2) Dia. of monofilament: 0.10-0.35mm |
|
| Screw diameter | 65mm |
| Ratio of L/D | 28:1 |
| Material of screw and cylinder | 38CrMoALA |
| Revolation of screw | 25-100rpm |
| Spinning die | 1set |
| Number if holes | ≤150pcs |

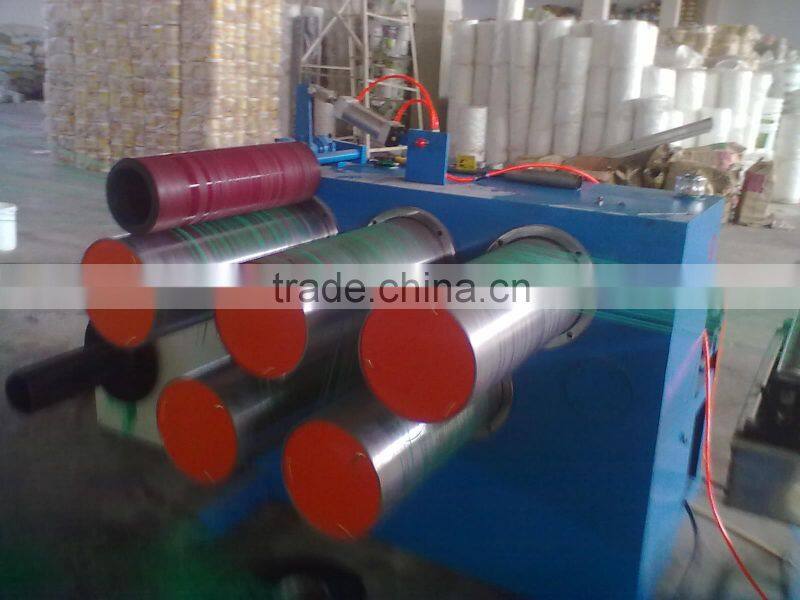

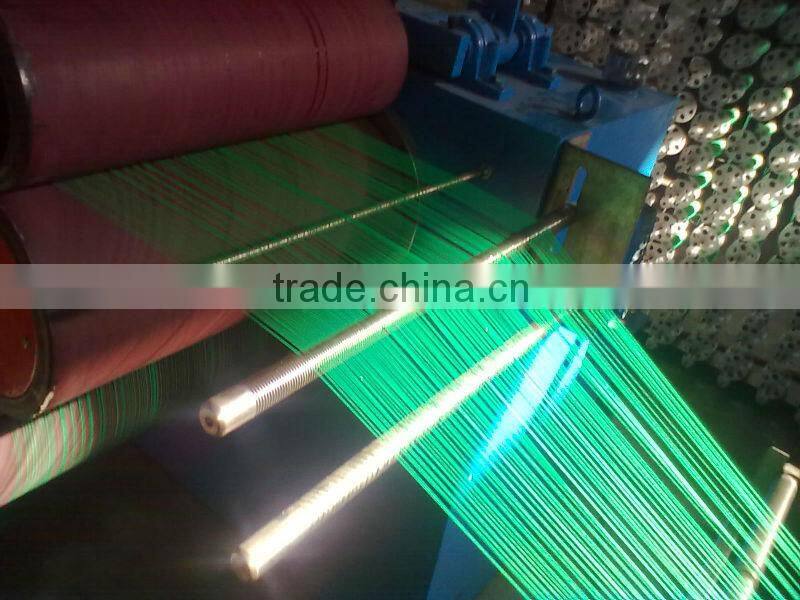

| Strething unit | Double stretching unit |
| Shaping unit | Single shaping unit |
| Winder | 156 Spindle |
| Winding size and type | 120*280 Cone-shape/120*180 I-shape |
| System capacity (about) | 180kw |
| Overall dimension (LXWXH) | 41000*2300*1970(mm) |
| Weight(about) | 25T |
Technical Paramters are subject to change without prior notice!

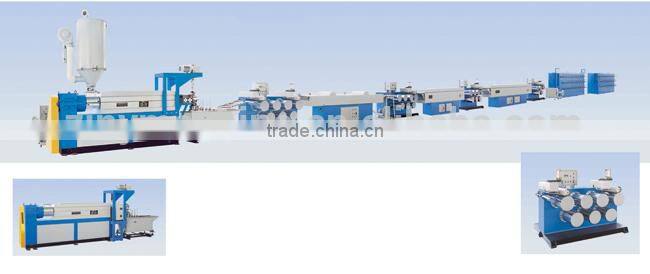

4. Flow Chart:
Raw material ----------Extruder------------water cooling--------stretching-------heating ---------stretching-----------guide roller----------winder
5. Application:

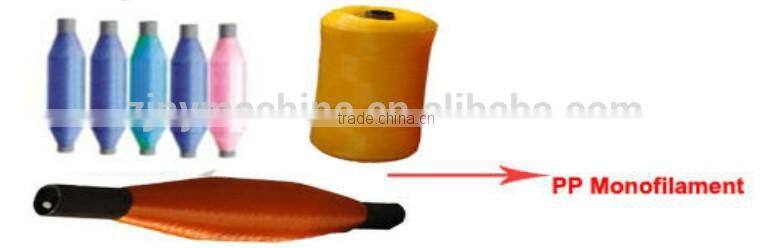

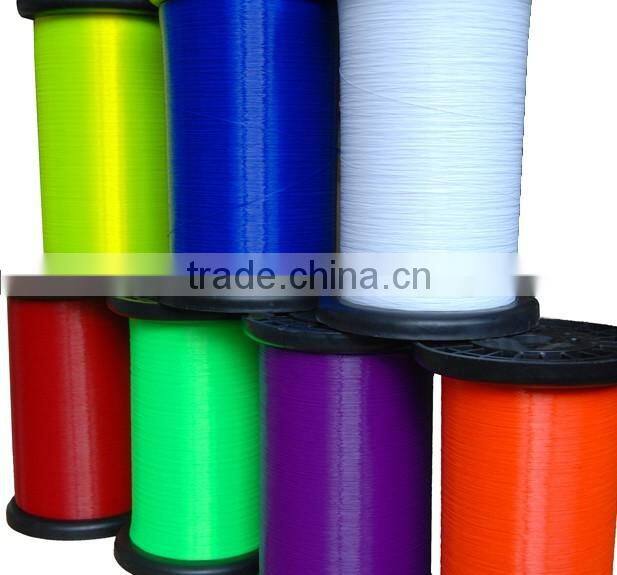

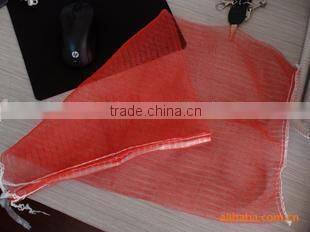

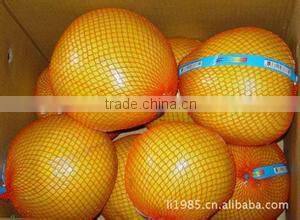

The polyester yarn making machine use for producing Nylon monofilament for fish net , safety net, sun-shieding net, mosquito net,sewing thread,rope,textile etc.Both the production of multi-thread and single-thread can produce ,we can produce the machines under our customers’ request.
6.Contact us:
Wenzhou NanYi Plastic Machinery Co.,Ltd
ADD:No.268, National Road104, Aojiang Town, Wenzhou City, Zhejiang,China
Website: http://www.nanyijixie.comor
http:// zjnymachine.en.china.cn
Tel: +86-577-63696280 Fax:+86-577-63690818
Mob:+86-13867739043
Skype: lissy.xie
