Specifications
laminated circular woven bag machine1. bopp-pp fabric-bopp
2. six stations of material feeding

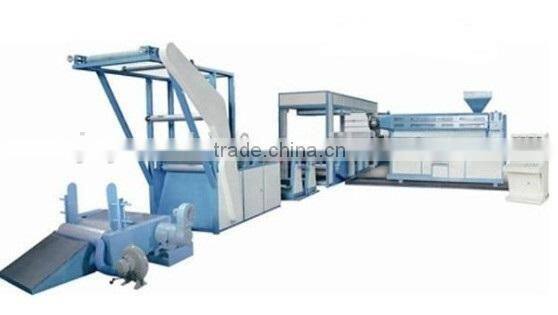

BOPP/CPP automatic combined unit for laminated circular woven bag machine
Making use of the good adhesive property of polypropylene at melting status, the machine adheres and laminates paper or color-printed OPP&CPP film to woven bag under pressure, and through cut-off and sewing to make paper&plastic laminated or color-printed package woven bags.The extruder with hard gear reducer of 20CrMnTi alloy steel adopts automatic temperature-control system to adjust melting temperature,the screw and cylinder are made of 38CrMoALA alloy stell and done treatment of nitrogenation. The width of coating&laminating can be regulated, and stepless speed regulation is to control coating thickness and laminating speed, 6 wind-up station for material feeding.The gas-liquid edge correcting for rewinder assures the accuracy of coating. Pneumatic roller can assure even pressure. Automatic edge cutting, edge-blowing,perforating,edge-folding,cutting-off and winding devices are applied.
Main Technical parameters:
Type |
Die Width (mm) |
Die Number |
Max. Coated Film Width (mm) |
L/D Ratio of Screw |
Power of Extruder Motor (kw) |
Heating Power (kw) |
Diameter of screw(mm) |
Installation Dimension (L×W×H) (mm) |
Weight (kg) |
NY-FMF90/1000 |
1000 |
2 |
800 |
1:26 |
15 |
32 |
90 |
13800 × 6000 × 2500 |
8000 |
NY-FMF120/1500 |
1500 |
1 |
1200 |
1:26 |
37 |
42 |
120 |
15500 × 8000 × 2500 |
10000 |

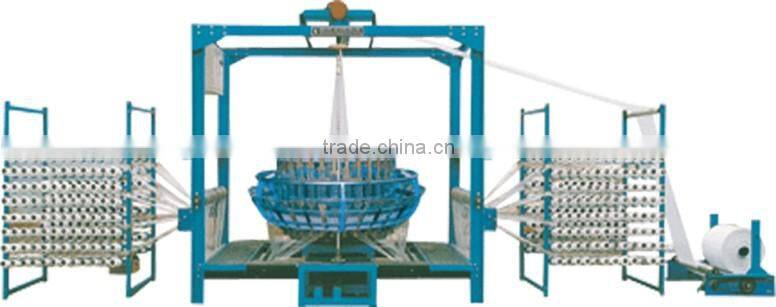

Pictures for other type of machines:
