Specifications
extrusion laminating coating machine1. bopp-pp fabric-bopp
2. six stations of material feeding

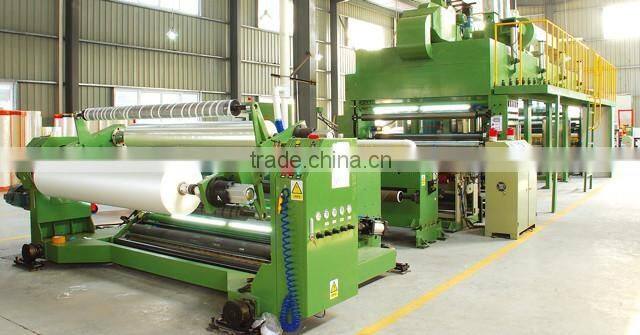

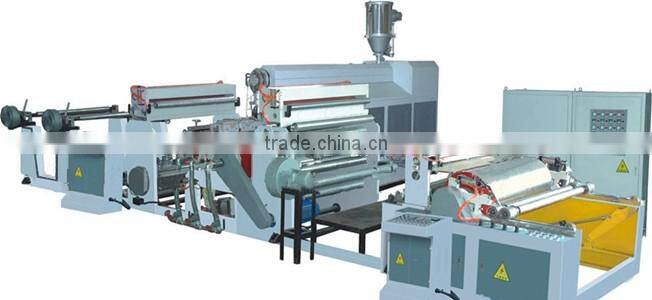

High speed extrusion laminating coating machine supplier
"Welcome come to our website,Thanks for your time, hope our machine can meet your request, any comments to us will be high appreciated, any suggestions from you will help us so much ."
Introduction:
This machine use LDPE, PP, PE, EVA, EAA, EMA such coating colophony as raw material, coating the basic material 35-425g paper, nonwoven fabric, chemical fabric, woven fabric, aluminum foil, PVC, BOPP, BOPET, BOPA, CPP, CPE and linen to synthesize new materials.
Characteristics & Applications:
1. Composite parts of pneumatic control saves time and effort. Rewinder double position pneumatic roll alternation, roll alternation without stopping.
2. We use intelligent temperature controller, which is high precision energy conservation and environmental protection.
3. Rewind electric, pneumatic pick up position changes reels nonstop roll, reduce labor intensity.
ITEM/TYPE |
SJFM-800 |
SJFM-1100 |
SJFM-1300 |
SJFM-1600 |
SJFM-1800 |
Length of mold lid |
900mm |
1200mm |
1400mm |
1800mm |
2000mm |
Width of finished product |
400-700mm |
500-1000mm |
600-1250mm |
800-1500mm |
900-1700mm |
Compounding speed |
80-110m/min |
80-100m/min |
80-110m/min |
60-110m/min |
60-110m/min |
Width of coating |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
L/D ratio for screw |
ø80mm×30 |
ø95mm×30 |
ø105mm×30 |
ø120mm×32 |
ø140mm×32 |
|
Max.diameter for roll unwinding and rewinding |
ø1200mm |
ø1200mm |
ø1200mm |
ø1200mm |
ø1200mm |
Overall size |
12000×6000× |
12500×7000× |
13000×8000× |
13000×9000× |
13000×12000× |
Power |
60kw |
70kw |
80kw |
100kw |
130kw |
compounding/ mirror cool roll |
ø510mm |
ø510mm |
Ø600mm |
Ø600mm |
Ø600mm |
Applicable for base material |
BOPP BOPPET BOPA CPP CPE PAPER ALUMINUM foil |
||||
