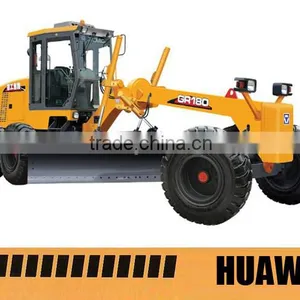

Construction road machinery motor grader XCMG GR180
XCMG GR180
TECH SPECIFICATIONS | |
Basic specification | |
Engine model |
6CTAA8.3 D6114 |
Rated power/speed |
138kW/2200 140kW/2300rpm |
Dimension(L*W*H) |
8900*2625*3470mm |
Operating weight(Standard) |
15400kg |
Performance specification | |
Travelling speed,forward |
5,8,11,19,23,38 km/h |
Travelling speed,reverse |
5,11,23 km/h |
Tractive force(f=0.75) |
79KN |
Max. gradeability |
20% |
Tire inflation pressure |
260 kPa |
Working hydraulic pressure |
16 MPa |
Transmission pressure |
1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels |
±50° |
Max. lean angle of front wheels |
±17° |
Max. oscillation angle of front axle |
±15° |
Max. oscillation angle of balance box |
15 |
Frame articulation angle |
±27° |
Min. turning radius using articulation |
7.3m |
Blade | |
Maximum lift above ground |
450mm |
Maximum depth of cutting |
500mm |
Maximum blade position angle |
90° |
Blade cutting angle |
28°-70° |
Circle reversing rotation |
360° |
Moldboard width*height |
3965*610mm |

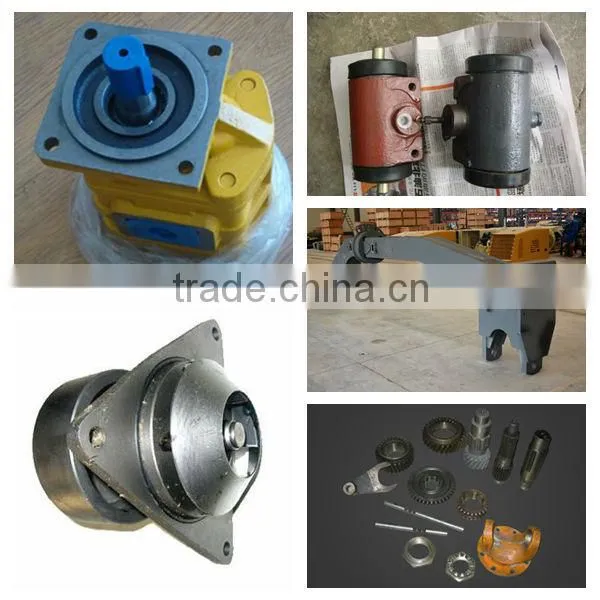

XCMG GR180 PARTS SUPPLY
CASES
Service Promise
1 Five tracking services are made within guarantee period.
2 Drivers can be trained free of charge according to needs.
3 Excellent part supply system ensures usual operation of machine within and outside guarantee period.
We are the No. one authorized company of China National Heavy Duty Truck Group Co., Ltd.It has an annual output of
180,000 vehicles and 200,000 engines capacity.
The main products include XCMG GR180 wheel loaders,excavators,bulldozers,road rollers,tower crane,truck crane,diesel generators,
lifting platform etc.We have excellent part supply system that ensures usual operation of machine within and outside
guarantee period.
Our company consists of Jinan Sinotruk International Imp & Exp Co.,Ltd and SINOTRUK VEHICLES(HONGKONG) CO.,LTD.Two overseas marketing companies.Our products have been exported to over 30 countries in
Asia, Africa, South America,Southeast Asia,The Middle East. The customers are from Nigeria,Zambia,Ghana,Angola,
Uganda,Tanzania,Algeria,Ethiopia,Djibouti,Qatar,Philippines,Sri Lanka,Peru,Bolivia,Chile,and other countries.
We will warmly welcome your arrival and serve you with our sincere hospitality!
Impression:OEM XCMG GR180 parts/Good quality/competitive price/Excellent part supply system/
Professional team
We are sure your any inquiry or requirement will get prompt attention.
