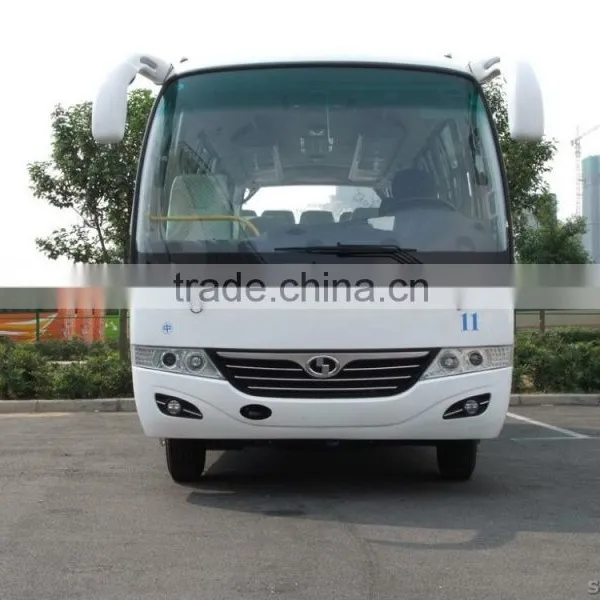

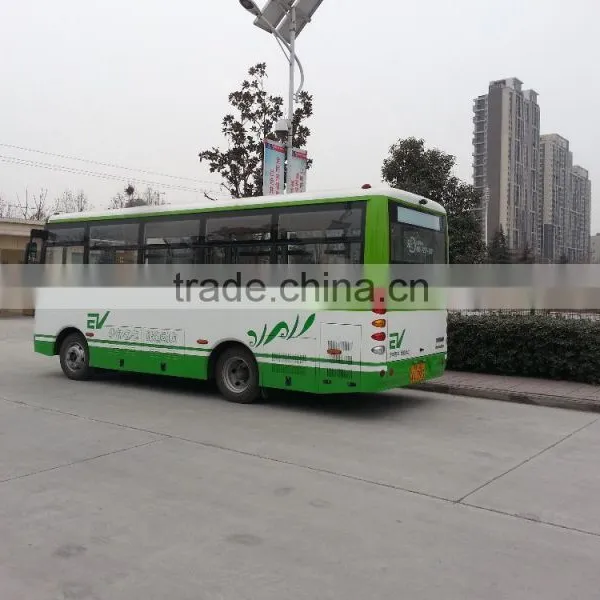

left hand drive bus 30 seats FRONT ENGINE bus

ITEM

SLG6720C3E

DIMENSION

L*W*H(MM)

7220*2240*2840

Tread F (MM)

1750

Tread R (MM)

1602

WHEELBASE (MM)

3650

WEIGHT

TOTAL MASS (KG)

7300

PERFORMANCE

MIN. VEHICLE TURNING CIRCLE (M)

11

MAX. SPEED (KM/H)

100

ANGLE (APP/DEP)

13/10

SEAT CAPACITY

30 seats

FRAMEWORK

STRAIGHT BEAM

ENGINE

MODEL

YC4D130-20

TYPE

4 CYLINDER IN-LINE

RATED-POWER (KW/R/MIN)

96KW

MAX. TORQUE (N.M)

340

EMISSION STANDARD

EURO II

FUEL TYPE

DIESEL

CLUTCH

TYPE

SINGLE PLATE DRY CLUCH

CLUTCH BOOST

WITH  PUMP

TRANSMISSION

MODEL

DF5S550

MAX. TORQUE

420

SHIFTS

5 SPEED MANUA

CONTROL SYSTEMS

FLEXIBLE  SHAFT

FRONT AXLE

2.7T

REAR AXLE

5T

BRAKING SYSTEM

STEERING

POWER STEERING

SERVICE BRAKE

DUAL-CIRCUIT AIR BRAKING SYSTEM

PARKING BRAKE

Diaphragm spring brake

F/R BRAKING DIA.

310

F/R BRAKING SHOE Width

130/160

SUSPENSION STYLE

MULTI LEAF SPRING

TYRE

7.50-16

OIL TANK CAPACITY

90L

ITEMS

NAME

SPECIFICATION

Remark

1

FRONT WINDSCREEN

FIXED, LAMINATED GLASS,

2

REAR WINDSCREEN

FIXED, TOUGHENED GLASS

3

BATTERY

TWO PIECE OF 6-QA-105(15)BATTTERY

4

INNER DECORATION

PLASTICS

5

REARVIEW MIRROR

RABBIT EAR REAR VIEW MIRRIOR

6

INSIDE MIRROR

STANDARD

7

PASSENGER DOOR

MANUAL FOLDING PASSENGER DOOR

8

SIDE WINDOW

UP THE ADHESIVE, THE PUSH AND PULL SIDE WINDOW

9

PASSENGER SEAT

SINGLE SEAT WIDTH 420,800 ORDINARY SEAT

10

CLEARSTORY

ESCAPE HATCH

11

STEERING WHEEL

 ADJUSTABLE STEERING WHEEL

12

FLOOR BOARD

FLAT FLOOR

13

AIR CONDITIONER

AIR CONDITIONER
