Popular In Africa Shaolin 9m 37 Seats City Transport Bus

Name: Popular In Africa Shaolin 9m 37 Seats City Transport Bus
Brand: Shaolin
SKU: 102646743
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

21 - 40

Emission Standard:

Euro 2

Transmission Type:

Manual

Jinan Huawo Heavy Duty Truck Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Euro 2

Transmission Type Manual

Max Speed 51 - 70 km/h

Steering Position LHD

Fuel Type Diesel

Dimensions (L x W x H) (mm) 8960*2500*3200

Place of Origin Henan, China

Brand Name Shaolin

Model Number SLG6900C4ER

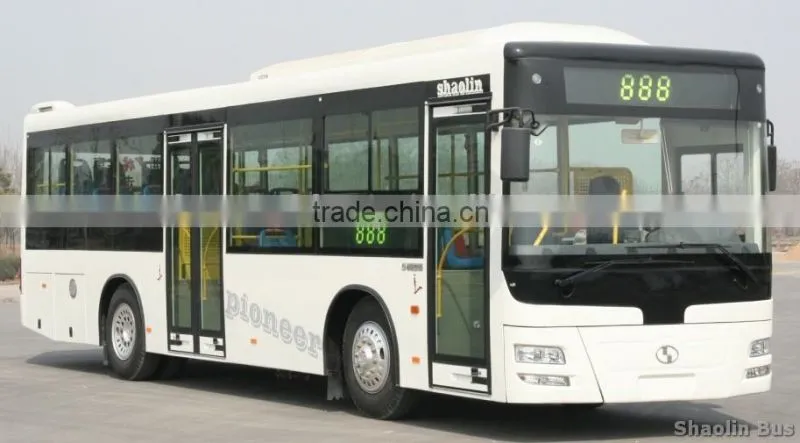

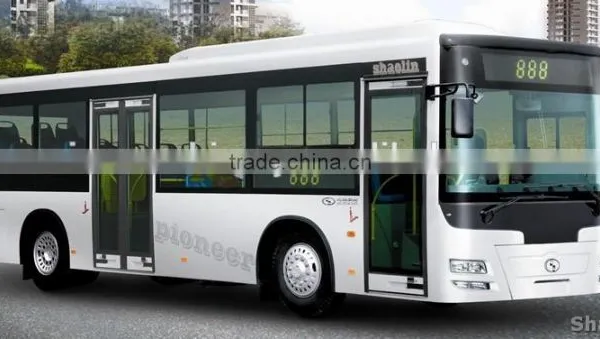

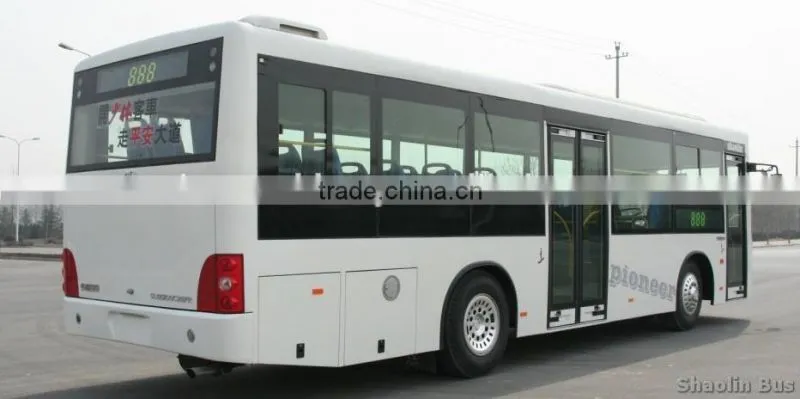

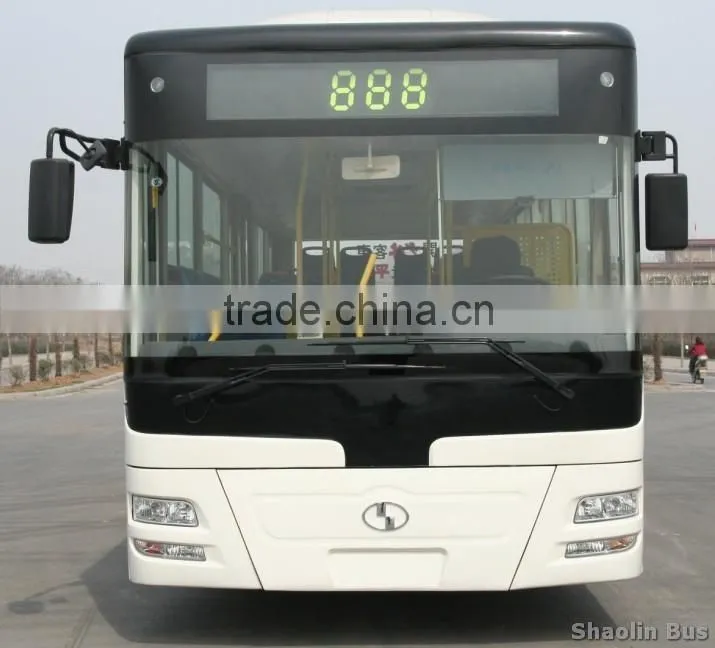

Popular In Africa shaolin 9m 37 seats city transport bus

TECHNICAL DATA:

ITEM		SLG6900C4ER
DIMENSION	LWH(MM)	896025003200
	Tread F (MM)	2020
	Tread R (MM)	2800
	WHEELBASE (MM)	4200
WEIGHT	TOTAL MASS (KG)	12280
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	24000
	MAX. SPEED (KM/H)	69
	ANGLE (APP/DEP)	8/8
SEAT CAPACITY		37 seats
FRAMEWORK		STRAIGHT BEAM
ENGINE	MODEL	YC6J200-20/147KW
	TYPE	6 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	147KW
	MAX. TORQUE (N.M)	760
	DISPLACEMENT (L)
	EMISSION STANDARD	EURO II
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE corkscrews CLUCH
	SIZE	430
	CLUTCH BOOST	WITH PUMP
TRANSMISSION	MODEL	DF5S550
	MAX. TORQUE	550
	SHIFTS	5 SPEED MANUA
	CONTROL SYSTEMS	FLEXIBLE SHAFT
FRONT AXLE		4.48T
REAR AXLE		7.8T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	Ø400
	F/R BRAKING SHOE Width	130/155
SUSPENSION STYLE		STEEL LEAF SPRING
TYRE		8.25-20
OIL TANK CAPACITY		200L

BODY, ELECTRIC APPLIANCE:

ITEMS	NAME	SPECIFICATION	Remark
1	FRONT WINDSCREEN	FIXED, LAMINATED GLASS,
2	REAR WINDSCREEN	FIXED, TOUGHENED GLASS

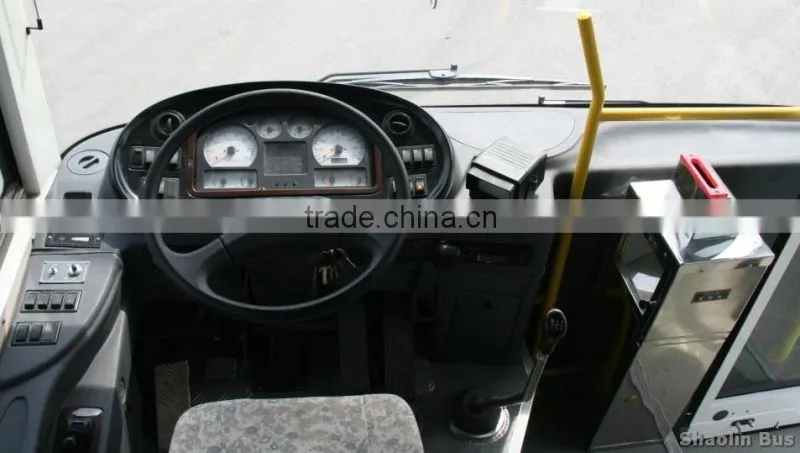

3	INSTRUMENT BOARD	WHOLE SEALED
4	INNER DECORATION	PLASTICS
5	REARVIEW MIRROR	POLE TYPE
6	INSIDE MIRROR	STANDARD
7	PASSENGER DOOR	PNEUMATIC INTERIOR SWING DOOR
8	SIDE WINDOW	WHOLE SLIDING
9	DRIVER SEAT	VINYL FRONT/ REAR ADJUSTABLE DRIVING SEAT
10	PASSENGER SEAT	VINYL PASSENGER SEAT WITH ARMREST
11	CLEARSTORY	1UNIT
12	HANDRAIL	door handrail
13	FLOOR BOARD	STEEL DECORATIVE PATTERN FLOWER
14	RAIN WIPER	OPPOSITE
15	RADIO	AM/FM RADIO
16	FROTH	FRONT,REAR,TOP AND SIDE (10 MM THICK)
17	ANTISEPSIS GRADE	SUPERFINE
18	SAFETY EXIT	YES
19	ENGINE COVER	YES
